Bisley CC4H1A/FLS four-drawer filing cabinet
Bisley CC4H1A/FLS four-drawer filing cabinet - 1
Bisley CC4H1A/FLS four-drawer filing cabinet - 2
Bisley CC4H1A/FLS four-drawer filing cabinet - 3

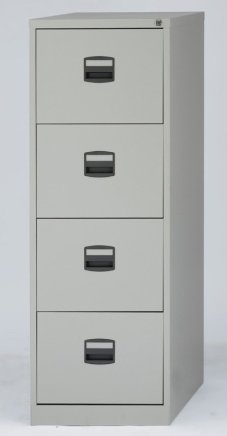

Bisley CC4H1A/FLS four-drawer filing cabinet - 4
Bisley CC4H1A/FLS four-drawer filing cabinet - 5
Bisley CC4H1A/FLS four-drawer filing cabinet - 6
Bisley CC4H1A/FLS four-drawer filing cabinet - 7
Bisley CC4H1A/FLS four-drawer filing cabinet - 8

Bisley CC4H1A/FLS four-drawer filing cabinet

Code: CC4H1A

Four-drawer metal filing cabinet for documents or hanging files in Foolscap format, width 470, height 1321, depth 622 mm, central full description and parameters

Show all models

Color swatch

Choose a color / combination:

Out-of-stock items to order, 12-15 week lead time.

265.69 Eur 321.48 Eur with VAT

Quantity

First select the parameters

Description and technical parameters

Bisley CC4H1A/FLS four-drawer filing cabinet

Four-drawer metal filing cabinet for documents or hanging files in Foolscap format, width 470, height 1321, depth 622 mm, central lock, various colors.

  • four-drawer filing cabinet for documents or Foolscap format hanging pockets
  • welded body of file cabinet
  • central lock
  • load capacity of one drawer 40 kg
  • 100% drawer extension
  • anti-overloading device (multiple drawers cannot be pulled out at once)
  • the filing cabinet is primarily designed for storing hanging pockets, in this case there is no need to use dividers
  • in the case of storing documents without the use of hanging plates, we recommend purchasing an inset bottom, which also allows you to equip the drawer with up to 6 dividers in case the drawer is not completely filled - see below for more information
  • internal dimensions of the FLS drawer: height 267 mm x width 385 mm x depth 540 mm
  • weight 40 kg
  • hanging plates from 12 CZK without VAT/piece
  • 5 year warranty
COMPARISON OF IPCCA, CONTRACT AND BS CARDS IPCCA AND CONTRACT CARD FILES CARD FILES TYPE BS
Auto-closing drawers - yes
Drawer drawer 100% 100%
Interior drawer depth 540mm 540mm
Load capacity of each drawer 40 kg 45 kg
Double drawer front for greater strength - yes
Block other drawers when one is already open yes yes
Perforated bottom for the possibility of using dividers no, if necessary, it is necessary to purchase the inserted bottom, see You can buy it additionally
Warranty period guaranteed by the manufacturer IPCCA 2 years | Contract 5 years 7 years
Central lock yes yes
Welded body for higher strength yes yes
Pre-drilled holes in the sides and back of the filing cabinet yes yes
Description label fixed drawer front frame sliding replaceable label with cap
Body sheet thickness 0.6mm 0.6mm
Sheet thickness of drawer fronts 0.7mm 0.6mm (external) + 0.8mm (internal)
Top cover plate thickness 0.8mm 0.8mm
Bottom plate thickness 0.7mm 0.7mm
Plinth plate thickness 0.8mm 0.8mm
Sheet thickness of drawer body 0.5mm 0.5mm
Manufacturer Bisley Office Furniture, Caswell Way, Reevesland Ind Est, Newport, Great Britain

WARNING - since April 2017, the Bisley company has been producing all file cabinets with drawers without holes in their bottoms, when these holes were used to hold the original dividers. For file cabinets manufactured since April 2017, if it is necessary to place dividing partitions in the drawer, it is necessary to purchase an additional inserted bottom, which is equipped with these holes. For the additional bottom, 1 or 2 metal partitions are supplied as standard, additional ones can be purchased. See below in the section You can buy more.

Drawer with holes for dividers Drawer without partition holes
Drawer with holes for dividers Drawer without holes for dividers
  • the additional bottom can be used for both types of drawers
  • significantly strengthens the stability of the drawer when storing heavier objects and documents without the use of hanging plates
  • prevents deflection of the bottom when it is unevenly loaded
  • allows the use of up to 6 pieces of dividers
  • reduces the internal height of the drawer by 9 mm
Height: 1321 mm
Width: 470 mm
Depth: 622 mm
Mass: 40 kg
Number of sockets: 4
For format: A4 + FLS
Load capacity of one drawer: 40 kg
Welded product: Yes
Interior equipment: without internal equipment with the option of additional purchase
Warranty (years): 5
Manufacturer:

All models

Code A4CC4H1A Currently browsing CC4H1A A4CC4H1A-S CC4H1A-S
Height 1321 mm 1321 mm 1321 mm 1321 mm
Width 413 mm 470 mm 413 mm 470 mm
Depth 622 mm 622 mm 622 mm 622 mm
Mass 40 kg 40 kg 40 kg 40 kg
Number of sockets 4 4 4 4
For format A4 A4 + FLS A4 A4 + FLS
Load capacity of one drawer 40 kg 40 kg 40 kg 40 kg
Welded product Yes Yes Yes Yes
Interior equipment without internal equipment with the option of additional purchase without internal equipment with the option of additional purchase each drawer is equipped with a set of two dividers each drawer is equipped with a set of two dividers
In stock No No No No
Price without VAT 245.39 Eur 265.69 Eur 338.99 Eur 355.01 Eur
Into the cart
Into the cart
Into the cart
Into the cart

You can buy more

Inserted perforated base for Bisley Contract filing cabinets, FLS format (width 470 mm)
  • In stock
Country of origin

Code: CONFBASE

Inserted perforated base for Bisley Contract filing cabinets, FLS format (width 470 mm)

10.61 Eur without VAT

(12.84 Eur with VAT)

Buy

Reinforced bottom insert for 2, 3 and 4 drawer Bisley file cabinets type Contract, Foolscap format (width of file cabinet 470 mm). Suitable for storing documents without the use of hanging pockets, thus preventing the bottom from bending when it is unevenly loaded. Supplied separately, dividers are not part of the delivery, color black.

Inserted perforated bottom + 2x partition for Bisley Contract filing cabinets, FLS format (width 470 mm)
Country of origin

Code: CONFBASEP2D

Inserted perforated bottom + 2x partition for Bisley Contract filing cabinets, FLS format (width 470 mm)

22.33 Eur without VAT

(27.02 Eur with VAT)

Buy

Reinforced bottom insert for 2, 3 and 4 drawer Bisley file cabinets type Contract, Foolscap format (width of file cabinet 470 mm). Suitable for storing documents without the use of hanging pockets, thus preventing the bottom from bending when it is unevenly loaded. Supplied simultaneously with two dividers, color black.

Similar products

Information / documents

  • BISLEY catalogs for download
  • BISLEY ESSENTIALS
  • Documents to download
  • Bisley showroom London
  • How-to videos
  • Format sizes according to ISO/DIN
Bisley catalog 2019
Bisley Note Table Container Catalog Bisley product catalog - file cabinets, drawer cabinets, wardrobes documents Catalog of Bisley wardrobes
Monobloc wardrobe catalog
Bisley Caddy Table Container Catalog Bisley Buddy Table Container Catalog Bisley Be office furniture catalog

The BISLEY company developed and in May 2016 launched a new line of products called BISLEY ESSENTIALS. It is actually a kind of "family" of products without which no office can function properly. It includes two-door wardrobes, wardrobes with blinds, personal wardrobes, drawer filing cabinets and combination wardrobes.

Until this time, the BISLEY company produced a number of similar products, which, however, differed slightly in design and dimensions, the Bisley Essentials series not only unifies these products in appearance and dimensions, but also brings many improvements while maintaining a similar price level.

All products in this series are developed to meet even the most demanding requirements for storing documents, especially the most common A4 format and standard office files. Cabinets are also available, the height of which makes it possible to extend the working surface of the office desk and thus increase your working comfort. Combined wardrobes, in turn, provide an ideal environment for storing your personal and common needs in one space and thus increase the efficiency of your work team.

The Bisley Essentials range is backed by a five year warranty and some selected products are still in stock for quick delivery. All products of this series are equipped as standard with rectification feet to compensate for possible unevenness of the floor, which is not at all common for products of this price category.

Bisley Essentials Video

BISLEY ESSENTIALS - downloadable catalog Other documents
BISLEY Cabinets and Filing Cabinets ESSENTIALS

001. guarantee

002. list and dimensions of individual products

003. discontinued product comparison

003. product packaging attachment

In case of any questions or ambiguities, we will be very happy to help you.

Single row filing cabinets:

Double row filing cabinets:

A5, A6 and A7 filing cabinets:

Combined SystemFiles Cabinets:

DrawerSpace filing cabinets:

BISLEY ESSENTIALS cabinets and filing cabinets

General documents for BLF series products and SystemFiles:

BISLEY Showroom, 32 Dallington Street, London EC1V 0BB - virtual tour

Rozměry papíru podle ISO/DIN (v mm):

Formát A- B- C- D- E-
0 841 x 1189 1000 × 1414 917 × 1297
1 594 x 841 707 × 1000 648 × 917 545 × 771
2 420 × 594 500 × 707 458 × 648 385 × 545
3 297 × 420 353 × 500 324 × 458 272 × 385 400 × 560
4 210 × 297 250 × 353 229 × 324 192 × 272 280 × 400
5 148 × 210 176 × 250 162 × 229 136 × 192 200 × 280
6 105 × 148 125 × 176 114 × 162 96 × 136 140 × 200
7 74 × 105 88 × 125 81 × 114 68 × 96
8 52 × 74 62 × 88 57 × 81
9 37 × 52 44 × 62 40 × 57
10 26 × 37 31 × 44 28 × 40



Rozměry obálek podle ISO/DIN (v mm):

Formát Velikost Formát obsahu
DL 110 × 220 1/3 A4 (dvakrát přehnutá A4)
C7/C6 81 x 162 1/3 A5 (dvakrát přehnutá A5)
C6 114 × 162 A6 (dvakrát přehnutá A4)
C6/C5 114 × 229 1/3 A4 (dvakrát přehnutá A4)
C5 162 × 229 A5 (jednou přehnutá A4)
C4 229 × 324 A4
C3 324 × 458 A3
B6 125 × 176 obálka formátu C6
B5 176 × 250 obálka formátu C5
B4 250 × 353 obálka formátu C4
E4 280 × 400 B4



Formáty používané v USA, Velké Británii, Kanadě, Mexiku aj.:

  • v těchto a některých dalších zemích se mezinárodní formáty příliš nepoužívají (možná v souvislosti s nepřijetím metrického systému)
  • místo toho se formáty popisují přímo svou velikostí v palcích nebo standardním označením podle následující tabulky
Název Velikost v palcích (in) Velikost v mm (mm) Poměr stran
Quarto 10 × 8 254,0 × 203,2 1,25
Foolscap 13 × 8 330,2 × 203,2 1,63
Letter 8½ × 11 215,9 × 279,4 1,29
-- 8 × 10½ 203,2 × 266,7 1,31
Legal 8½ × 14 215,9 × 355,6 1,65
Ledger / Tabloid 11 × 17 279,4 × 431,8 1,55
Executive 7¼ × 10½ 184,15 × 266,7 1,45
Post 15½ × 19¼ 393,7 × 488,95 1,24
Crown 15 × 20 381,0 × 508,0 1,33
Large post 16½ × 21 419,1 × 533,4 1,28
Demy 17½ × 22½ 444,5 × 571,5 1,29
Medium 18 × 23 457,2 × 584,2 1,28
Royal 20 × 25 508,0 × 635,0 1,25
Elephant 23 × 28 584,2 × 711,2 1,22
Double Demy 23½ × 35 596,9 × 889,0 1,49
Quad Demy 35 × 45 889,0 × 1143,0 1,29
STMT 5½ x 8½ 139,7 × 215,9 1,55
A 8½ × 11 215,9 × 279,4 1,29
B 11 × 17 279,4 × 431,8 1,55
C 17 × 22 431,8 × 558,8 1,29
D 22 × 34 558,8 × 863,6 1,55
E 34 × 44 863,6 × 1117,6 1,29
