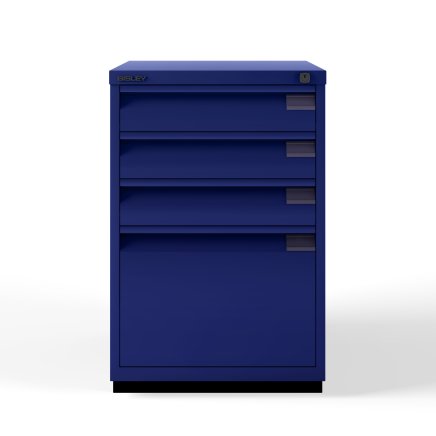

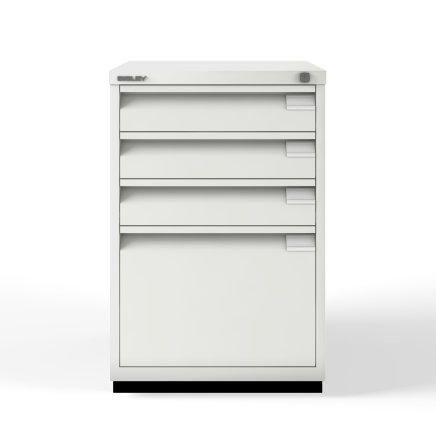

Bisley 1F3E metal filing cabinet

Code: 0503A

Four-drawer metal file cabinet Bisley 1F3E, width 470, height 711, depth 470 mm, different colors, standard handles (pro-molded). full description and parameters

Show all models

Color swatch

Choose a color / combination:

Select plinth:

Out-of-stock items to order, 12-15 week lead time.

368.69 Eur 446.11 Eur with VAT

Quantity

Description and technical parameters

Bisley 1F3E metal filing cabinet

Four-drawer metal file cabinet Bisley 1F3E, width 470, height 711, depth 470 mm, different colors, standard handles (pro-molded). The tall drawer is equipped with a removable reducing bar for hanging pockets of A4 format.

four-drawer cabinet
three standard sockets
one drawer for A4 or Foolscap hanging files
central cylinder lock
precise telescopic guidance with ball bearings for light and quiet operation
load capacity of standard drawer 8 kg
load capacity of the drawer for hanging files 26 kg
internal dimension of standard drawer: height 95mm x width 384mm x depth 408mm
internal dimensions of the drawer for hanging files: height 295 mm x width 384 mm x depth. 408 mm
the plinth can be replaced with a base with wheels (CB1)
cabinet height without plinth - 640 mm
cabinet height with wheels CB1 - 685 mm
cabinet height with gliders LBFSP1 - 723-768 mm
weight 23.11 kg

Height:	711 mm
Width:	470 mm
Depth:	470 mm
Mass:	23.11 kg
Number of sockets:	4
For format:	A4 + FLS
Load capacity of one drawer:	26 kg
Welded product:	Yes
Warranty (years):	5
Manufacturer:

All models

Code	050A	Currently browsing 0503A
Height	711 mm	711 mm
Width	470 mm	470 mm
Depth	470 mm	470 mm
Mass	23.11 kg	23.11 kg
Number of sockets	4	4
For format	A4 + FLS	A4 + FLS
Load capacity of one drawer	26 kg	26 kg
Welded product	Yes	Yes
In stock	No	No
Price without VAT	379.51 Eur	368.69 Eur
	Into the cart	Into the cart

Code: 049

Bisley F6E metal filing cabinet

485.99 Eur without VAT

(588.05 Eur with VAT)

Buy

Bisley F6E six-drawer metal filing cabinets, width 470, height 711, depth 470 mm, various colors, classic chrome handles.

Code: 046A

Metal filing cabinet Bisley 2FE

367.48 Eur without VAT

(444.65 Eur with VAT)

Buy

Two-drawer metal filing cabinet Bisley 2FE, height 711, width 470, depth 470 mm, various colors, classic chrome handles. The drawers are equipped with a removable reducing bar for hanging pockets of A4 format.

Information / documents

BISLEY catalogs for download
BISLEY ESSENTIALS
Documents to download
Bisley showroom London
Documents to download
How-to videos
Format sizes according to ISO/DIN

The BISLEY company developed and in May 2016 launched a new line of products called BISLEY ESSENTIALS. It is actually a kind of "family" of products without which no office can function properly. It includes two-door wardrobes, wardrobes with blinds, personal wardrobes, drawer filing cabinets and combination wardrobes.

Until this time, the BISLEY company produced a number of similar products, which, however, differed slightly in design and dimensions, the Bisley Essentials series not only unifies these products in appearance and dimensions, but also brings many improvements while maintaining a similar price level.

All products in this series are developed to meet even the most demanding requirements for storing documents, especially the most common A4 format and standard office files. Cabinets are also available, the height of which makes it possible to extend the working surface of the office desk and thus increase your working comfort. Combined wardrobes, in turn, provide an ideal environment for storing your personal and common needs in one space and thus increase the efficiency of your work team.

The Bisley Essentials range is backed by a five year warranty and some selected products are still in stock for quick delivery. All products of this series are equipped as standard with rectification feet to compensate for possible unevenness of the floor, which is not at all common for products of this price category.

BISLEY ESSENTIALS - downloadable catalog

Other documents

BISLEY Cabinets and Filing Cabinets ESSENTIALS

001. guarantee

002. list and dimensions of individual products

003. discontinued product comparison

003. product packaging attachment

In case of any questions or ambiguities, we will be very happy to help you.

Single row filing cabinets:

Double row filing cabinets:

A5, A6 and A7 filing cabinets:

Combined SystemFiles Cabinets:

DrawerSpace filing cabinets:

BISLEY ESSENTIALS cabinets and filing cabinets

Bisley Essentials Catalogue

General documents for BLF series products and SystemFiles:

BISLEY Showroom, 32 Dallington Street, London EC1V 0BB - virtual tour

Rozměry papíru podle ISO/DIN (v mm):

Formát	A-	B-	C-	D-	E-
0	841 x 1189	1000 × 1414	917 × 1297
1	594 x 841	707 × 1000	648 × 917	545 × 771
2	420 × 594	500 × 707	458 × 648	385 × 545
3	297 × 420	353 × 500	324 × 458	272 × 385	400 × 560
4	210 × 297	250 × 353	229 × 324	192 × 272	280 × 400
5	148 × 210	176 × 250	162 × 229	136 × 192	200 × 280
6	105 × 148	125 × 176	114 × 162	96 × 136	140 × 200
7	74 × 105	88 × 125	81 × 114	68 × 96
8	52 × 74	62 × 88	57 × 81
9	37 × 52	44 × 62	40 × 57
10	26 × 37	31 × 44	28 × 40

Rozměry obálek podle ISO/DIN (v mm):

Formát	Velikost	Formát obsahu
DL	110 × 220	1/3 A4 (dvakrát přehnutá A4)
C7/C6	81 x 162	1/3 A5 (dvakrát přehnutá A5)
C6	114 × 162	A6 (dvakrát přehnutá A4)
C6/C5	114 × 229	1/3 A4 (dvakrát přehnutá A4)
C5	162 × 229	A5 (jednou přehnutá A4)
C4	229 × 324	A4
C3	324 × 458	A3
B6	125 × 176	obálka formátu C6
B5	176 × 250	obálka formátu C5
B4	250 × 353	obálka formátu C4
E4	280 × 400	B4

Formáty používané v USA, Velké Británii, Kanadě, Mexiku aj.:

v těchto a některých dalších zemích se mezinárodní formáty příliš nepoužívají (možná v souvislosti s nepřijetím metrického systému)
místo toho se formáty popisují přímo svou velikostí v palcích nebo standardním označením podle následující tabulky

Název	Velikost v palcích (in)	Velikost v mm (mm)	Poměr stran
Quarto	10 × 8	254,0 × 203,2	1,25
Foolscap	13 × 8	330,2 × 203,2	1,63
Letter	8½ × 11	215,9 × 279,4	1,29
--	8 × 10½	203,2 × 266,7	1,31
Legal	8½ × 14	215,9 × 355,6	1,65
Ledger / Tabloid	11 × 17	279,4 × 431,8	1,55
Executive	7¼ × 10½	184,15 × 266,7	1,45
Post	15½ × 19¼	393,7 × 488,95	1,24
Crown	15 × 20	381,0 × 508,0	1,33
Large post	16½ × 21	419,1 × 533,4	1,28
Demy	17½ × 22½	444,5 × 571,5	1,29
Medium	18 × 23	457,2 × 584,2	1,28
Royal	20 × 25	508,0 × 635,0	1,25
Elephant	23 × 28	584,2 × 711,2	1,22
Double Demy	23½ × 35	596,9 × 889,0	1,49
Quad Demy	35 × 45	889,0 × 1143,0	1,29
STMT	5½ x 8½	139,7 × 215,9	1,55
A	8½ × 11	215,9 × 279,4	1,29
B	11 × 17	279,4 × 431,8	1,55
C	17 × 22	431,8 × 558,8	1,29
D	22 × 34	558,8 × 863,6	1,55
E	34 × 44	863,6 × 1117,6	1,29
