One-sided aluminum steps Forte 9310

Code: 9310

Forte aluminum one-sided steps, number of treads including platform 1x10, dimensions of platform 305 x 290 mm, maximum height of full description and parameters

On order, delivery time 2 - 3 weeks. It may vary depending on the manufacturer's capacity.

435.53 Eur 526.99 Eur with VAT

Quantity

Description and technical parameters

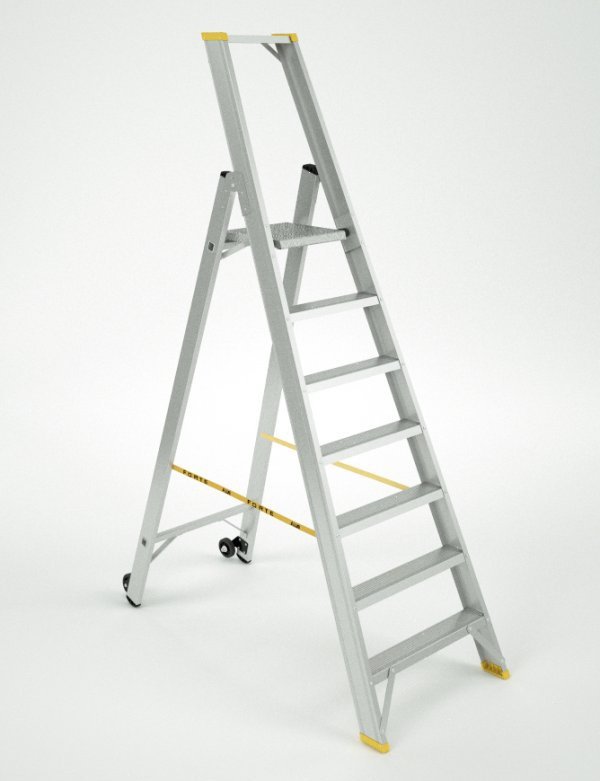

One-sided aluminum steps Forte 9310

Forte aluminum one-sided steps, number of treads including platform 1x10, dimensions of platform 305 x 290 mm, maximum height of platform 2.12 m, width of steps 666 mm. Load capacity 150 kg, types 9307, 9308 and 9310 supplied with wheels for easy handling.

Forte aluminum one-sided steps, number of treads including platform 1x10, dimensions of platform 305 x 290 mm, maximum height of platform 2.12 m, width of steps 666 mm. Load capacity 150 kg, types 9307, 9308 and 9310 supplied with wheels for easy handling.

  • for greater safety and stability during ascent, the steps can be completed with railings

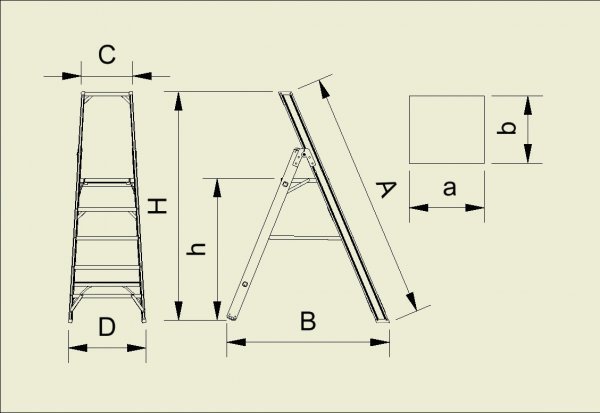

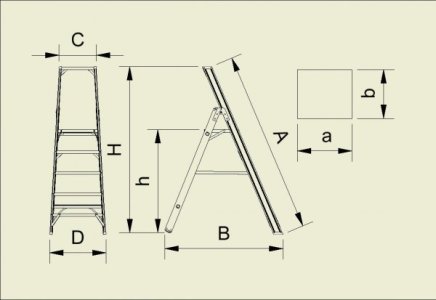

Height H: 2760 mm
Height h: 2120 mm
Width C: 355 mm
Width D: 666 mm
Length A: 2990 mm
Length B: 1900 mm
Platform width a: 305 mm
Platform depth b: 290 mm
Mass: 15 kg
Warranty (years): 2

All models

Code 9304 9305 9306 9307 9308 Currently browsing 9310
Height H 1490 mm 1700 mm 1910 mm 2120 mm 2330 mm 2760 mm
Height h 850 mm 1060 mm 1270 mm 1480 mm 1690 mm 2120 mm
Width C 331 mm 331 mm 331 mm 355 mm 355 mm 355 mm
Width D 498 mm 522 mm 546 mm 594 mm 618 mm 666 mm
Length A 1610 mm 1840 mm 2070 mm 2300 mm 2530 mm 2990 mm
Length B 910 mm 1060 mm 1220 mm 1440 mm 1590 mm 1900 mm
Platform width a 305 mm 305 mm 305 mm 305 mm 305 mm 305 mm
Platform depth b 290 mm 290 mm 290 mm 290 mm 290 mm 290 mm
Mass 7.6 kg 8.6 kg 9.6 kg 11.6 kg 12.9 kg 15 kg
In stock No No No No No No
Price without VAT 301.02 Eur 323.50 Eur 360.97 Eur 368.24 Eur 394.96 Eur 435.53 Eur
