Vertical storage rack MINI-RACK base type 76688

Vertical storage rack MINI-RACK base type 76688

Code: 76688

Rack for storing vertical profiles, base. Rack height 2500, width 1400, depth 800 mm, double-sided. Surface treatment powder color full description and parameters

Show all models

Made to order, delivery time 2 - 5 weeks. It may vary depending on the manufacturer's capacity.

364.85 Eur 441.47 Eur with VAT

Quantity

Description and technical parameters

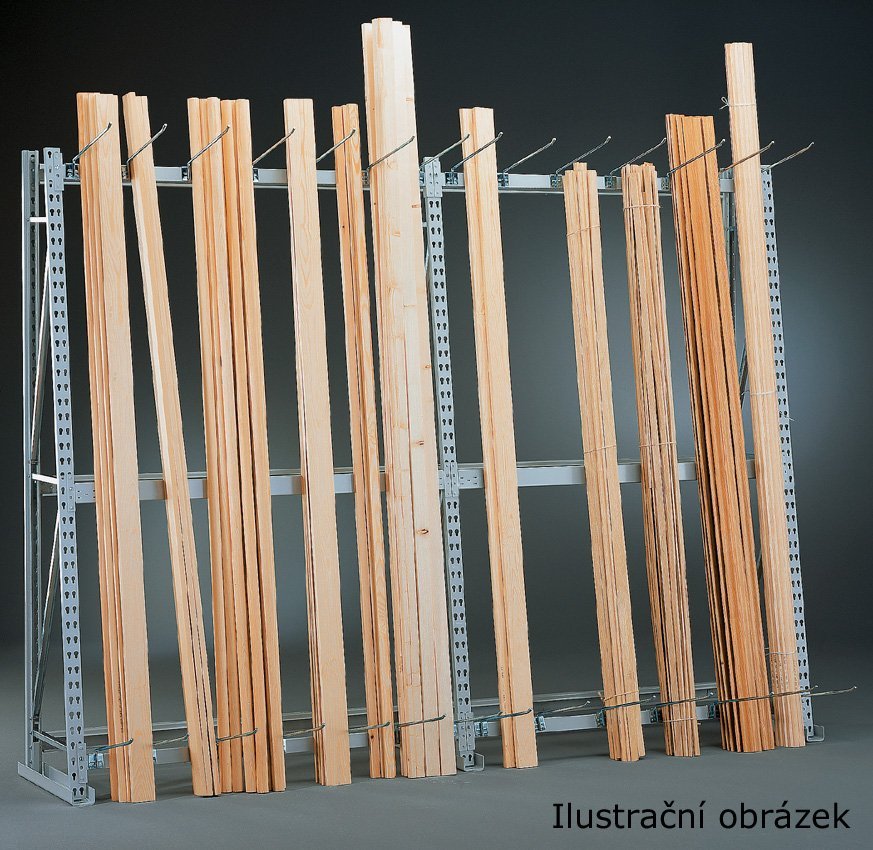

Vertical storage rack MINI-RACK base type 76688

Rack for storing vertical profiles, base. Rack height 2500, width 1400, depth 800 mm, double-sided. Surface treatment powder color light gray RAL 7035, reinforcing profiles galvanized.

  • frame height 2200, 2500 or 3000 mm
  • optimal for upright storage of wooden profiles, panels, ladders and rod material
  • depth of separating arms 400 mm
  • frame inclination 6°, maximum lateral force 50 kg
  • frames and adjustable stringers color light gray RAL 7035, horizontals, diagonals and separating arms galvanized
  • separating arms are not part of the delivery, must be ordered separately
  • CAUTION - racks with a height/depth ratio equal to or greater than 5 must be secured against tipping over
  • when planning, it is necessary to add 107 mm for the base rack + 51 mm for each extension rack



Height: 2500 mm
Width: 1400 mm
Depth: 800 mm
Mass: 52 kg
Warranty (years): 5
Manufacturer:

All models

Code 76673 76675 76677 76686 Currently browsing 76688 76690
Height 2200 mm 2500 mm 3000 mm 2200 mm 2500 mm 3000 mm
Width 1400 mm 1400 mm 1400 mm 1400 mm 1400 mm 1400 mm
Depth 500 mm 500 mm 500 mm 800 mm 800 mm 800 mm
Mass 45 kg 48 kg 52 kg 50 kg 52 kg 57 kg
In stock No No No No No No
Price without VAT 323.02 Eur 332.04 Eur 364.33 Eur 355.73 Eur 364.85 Eur 403.05 Eur
Into the cart
Into the cart
Into the cart
Into the cart
Into the cart
Into the cart

You can buy more

Similar products

Information / documents

  • Important information and documents
  • Available colors and designs

Before you order the shelf:

  • please note that the dimensions shown (width + depth) are the net dimensions of the shelf of the bookcase
  • an additional approx. 60 mm (width of the sides) must be added to the total width of the shelf or shelf set
  • this is important in the case of placing a shelf or a shelf assembly, for example, in a niche or between two walls
  • when measuring the space in which you want to place the shelf, please don't forget the plinth or heating pipes as well

Documents for download:
