Code: 97846

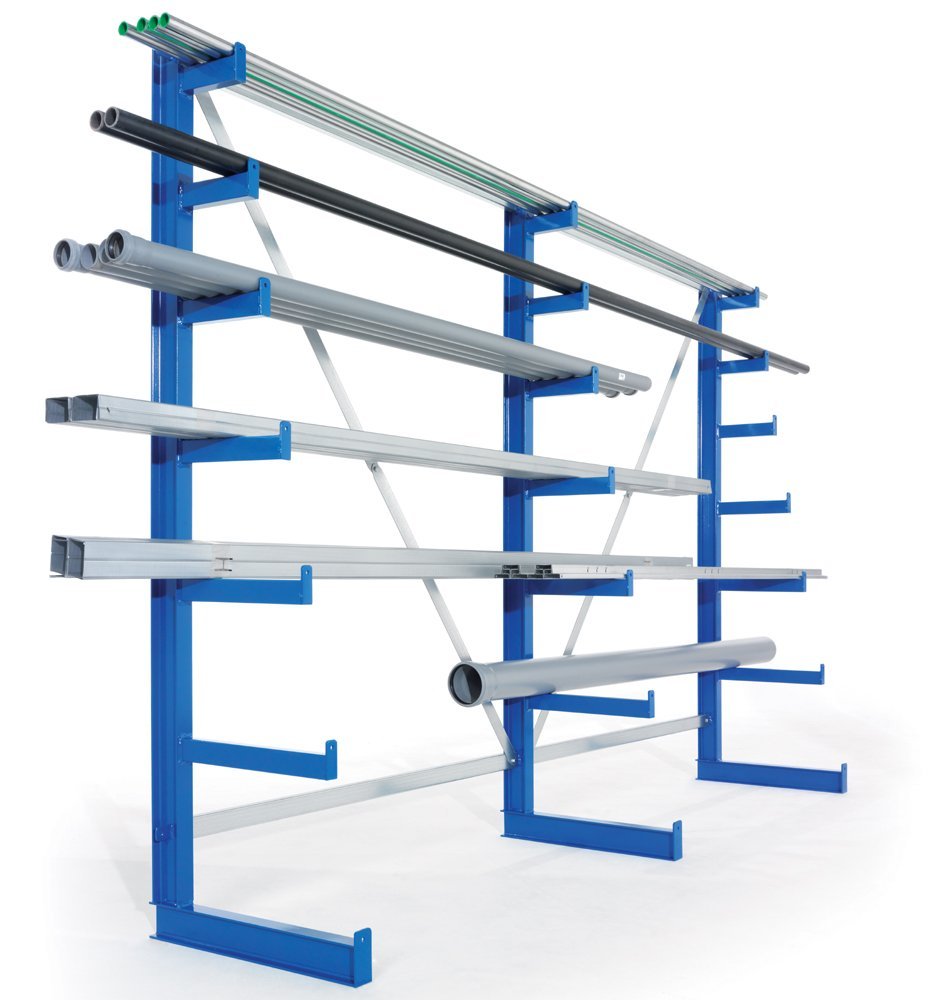

One-sided ATLAS ST cantilever rack with different arm lengths. Number of arms 6 per web, number of webs 6. Rack height 2000 mm, full description and parameters

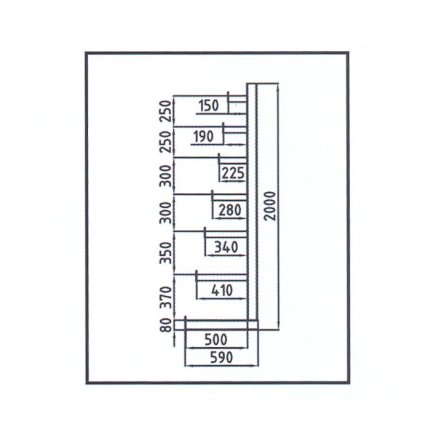

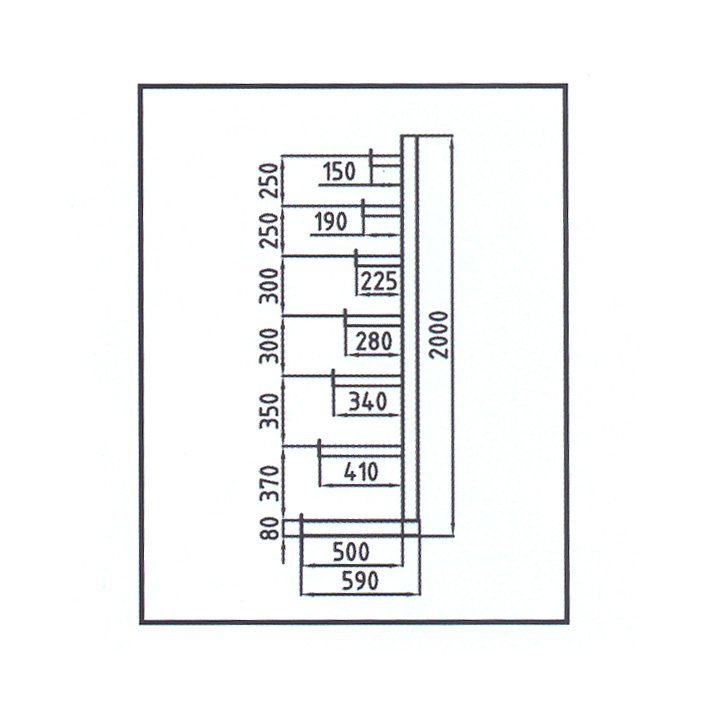

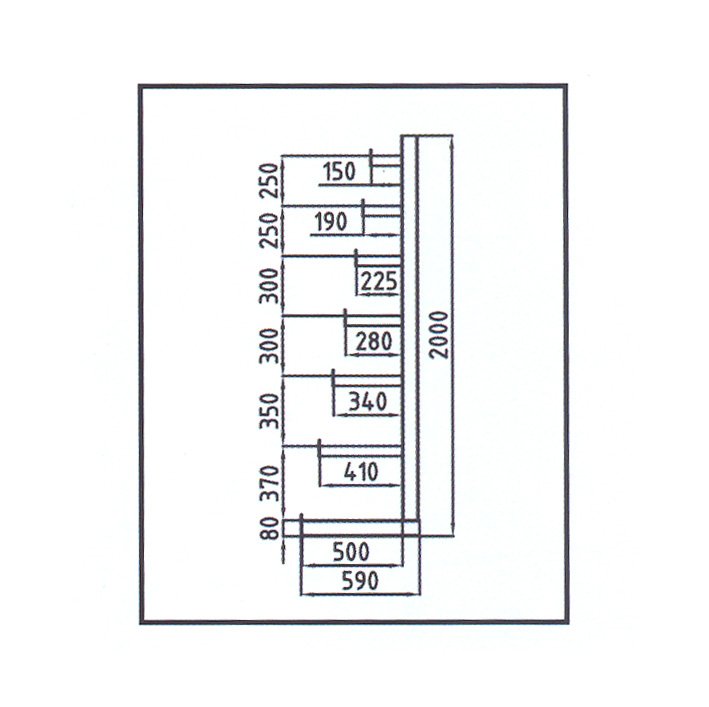

One-sided ATLAS ST cantilever rack with different arm lengths. Number of arms 6 per web, number of webs 6. Rack height 2000 mm, width 6750 mm, depth 590 mm, color blue RAL 5010. Arm capacity 200 kg.
| Height: | 2000 mm |
|---|---|
| Width: | 6750 mm |
| Depth: | 590 mm |
| Column load capacity: | 1080 kg |
| Carrying capacity of the arm: | 200 kg |
| Number of arms: | 6 |
| Number of webs: | 6 |
| Mass: | 141 kg |
| Warranty (years): | 5 |
| Manufacturer: |
|
| Code | 97843 | 97844 | 97845 | Currently browsing 97846 |
|---|---|---|---|---|
| Height | 2000 mm | 2000 mm | 2000 mm | 2000 mm |
| Width | 2700 mm | 4050 mm | 5400 mm | 6750 mm |
| Depth | 590 mm | 590 mm | 590 mm | 590 mm |
| Column load capacity | 1080 kg | 1080 kg | 1080 kg | 1080 kg |
| The bearing capacity of the web is one-sided | 900 kg | kg | kg | kg |
| Carrying capacity of the arm | 200 kg | 200 kg | 200 kg | 200 kg |
| Number of arms | 6 | 6 | 6 | 6 |
| Number of webs | 3 | 4 | 5 | 6 |
| Mass | 70 kg | 93 kg | 117 kg | 141 kg |
| In stock | No | No | No | No |
| Price without VAT | 282.58 Eur | 377.18 Eur | 471.77 Eur | 566.37 Eur |
Code: 97848
Double-sided tree rack type 97848655.15 Eur without VAT
(792.73 Eur with VAT)
Atlas ST double-sided cantilever rack with different arm lengths. Number of arms 2 x 6 per web, number of webs 4. Rack height 2000 mm, width 4050 mm, depth 1090 mm, color blue RAL 5010. Arm capacity 200 kg.
Code: 97849
Double-sided tree rack type 97849819.22 Eur without VAT
(991.26 Eur with VAT)
Atlas ST double-sided cantilever rack with different arm lengths. Number of arms 2 x 6 per web, number of webs 5. Rack height 2000 mm, width 5400 mm, depth 1090 mm, color blue RAL 5010. Arm capacity 200 kg.
Code: 97850
Double-sided tree rack type 97850983.33 Eur without VAT
(1 189.83 Eur with VAT)
Atlas ST double-sided cantilever rack with different arm lengths. Number of arms 2 x 6 per web, number of webs 6. Rack height 2000 mm, width 6750 mm, depth 1090 mm, color blue RAL 5010. Arm capacity 200 kg.
Code: 97843
One-sided tree rack (4 models)282.58 Eur without VAT
(341.92 Eur with VAT)
Atlas ST single-sided cantilever racks with different arm lengths. Number of arms 6 per web, number of webs 3 (total rack width 2700 mm), 4 (4050 mm), 5 (5400 mm) or 6 (6750 mm). Rack height 2000 mm, depth 590 mm, color blue RAL 5010. Arm capacity 200 kg.
Code: 97847
Double-sided tree rack (4 models)491.04 Eur without VAT
(594.16 Eur with VAT)
Atlas ST double-sided cantilever racks with different arm lengths. Number of arms 2 x 6 per web, number of webs 3 (total rack width 2700 mm), 4 (4050 mm), 5 (5400 mm) or 6 (6750 mm). Rack height 2000 mm, depth 1090 mm, color blue RAL 5010. Arm capacity 200 kg.
Code: 97844
Tree rack one-sided type 97844377.18 Eur without VAT
(456.39 Eur with VAT)
One-sided ATLAS ST cantilever rack with different arm lengths. Number of arms 6 per web, number of webs 4. Rack height 2000 mm, width 4050 mm, depth 590 mm, color blue RAL 5010. Arm capacity 200 kg.
Code: 97845
Tree rack one-sided type 97845471.77 Eur without VAT
(570.84 Eur with VAT)
One-sided ATLAS ST cantilever rack with different arm lengths. Number of arms 6 per web, number of webs 5. Rack height 2000 mm, width 5400 mm, depth 590 mm, color blue RAL 5010. Arm capacity 200 kg.
