Plug-in office shelf COMPACT port - type 77612

Code: 77612

Shelf with pre-assembled frames, height 2550 mm, width 1000 mm, depth 600 mm, 8 shelves. Galvanized design, double-sided, shelf full description and parameters

Made to order, delivery time 2 - 5 weeks. It may vary depending on the manufacturer's capacity.

276.62 Eur 334.71 Eur with VAT

Quantity

Description and technical parameters

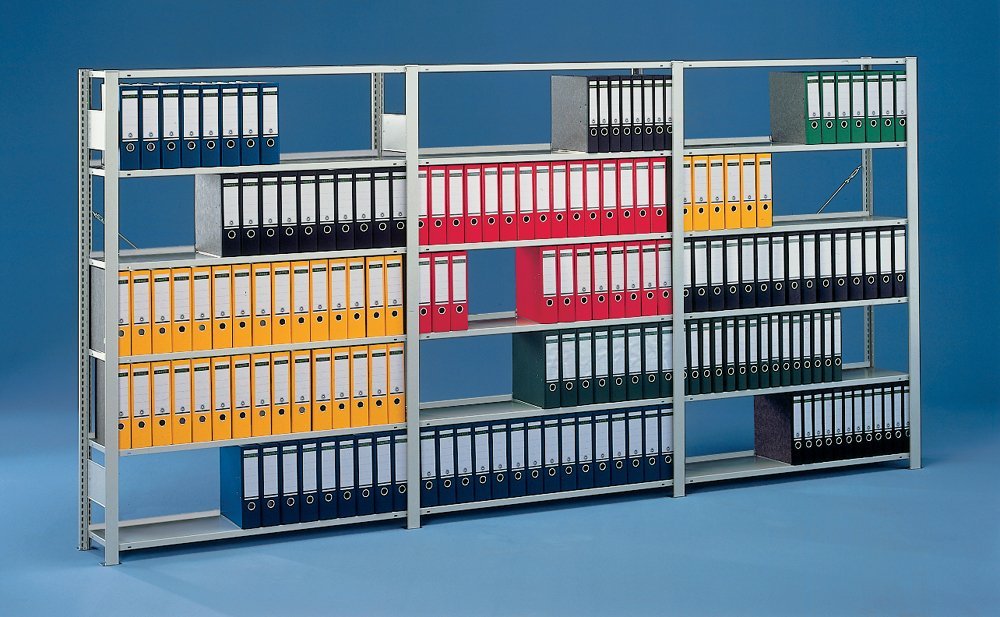

Plug-in office shelf COMPACT port - type 77612

Shelf with pre-assembled frames, height 2550 mm, width 1000 mm, depth 600 mm, 8 shelves. Galvanized design, double-sided, shelf capacity 80 kg. Quick assembly without tools. Only one web - used for setting the basic shelves.

  • shelves/profiles made of high-quality steel, height-adjustable shelves in a grid of 25 mm
  • end or middle shelf stop
  • contents of delivery of the port rack - 1 frame, shelves according to the table
  • one-sided shelf - reinforcement with diagonal braces on the back wall
  • double-sided shelf - reinforcement with stringers
  • the dimensions shown are the dimensions of the shelves, the actual width of the shelf is approx. 6 mm larger and the depth approx. 36 mm larger
Height: 2550 mm
Width: 1000 mm
Depth: 600 mm
Number of shelves: 8
File capacity: 168
Mass: 51.9 kg
Warranty (years): 5
Manufacturer:

All models

Code 77574 77610 77576 71868 71852 Currently browsing 77612 77637 77649 68572 59738
Height 1850 mm 1850 mm 2550 mm 2200 mm 2200 mm 2550 mm 1850 mm 1850 mm 2200 mm 2200 mm
Width 1000 mm 1000 mm 1000 mm 1000 mm 1000 mm 1000 mm 1000 mm 1000 mm 1000 mm 1000 mm
Depth 300 mm 600 mm 300 mm 600 mm 300 mm 600 mm 300 mm 600 mm 300 mm 600 mm
Number of shelves 6 6 8 7 7 8 6 6 7 7
File capacity 60 120 84 144 72 168 60 120 72 144
Mass 21.2 kg 24.6 kg 47.5 kg 37.6 kg 28.9 kg 51.9 kg 22 kg 25.6 kg 30 kg 38.9 kg
In stock No No No No No No No No No No
Price without VAT 128.19 Eur 202.69 Eur 173.47 Eur 230.56 Eur 148.25 Eur 276.62 Eur 167.79 Eur 307.38 Eur 192.82 Eur 346.47 Eur

You can buy more

Similar products

Information / documents

  • Important information and documents

Before you order the shelf:

  • please note that the dimensions shown (width + depth) are the net dimensions of the shelf of the bookcase
  • an additional approx. 60 mm (width of the sides) must be added to the total width of the shelf or shelf set
  • this is important in the case of placing a shelf or a shelf assembly, for example, in a niche or between two walls
  • when measuring the space in which you want to place the shelf, please don't forget the plinth or heating pipes as well
