MULTISTRONG M console rack - single-sided base 75078

Description and technical parameters

MULTISTRONG M console rack - single-sided base 75078

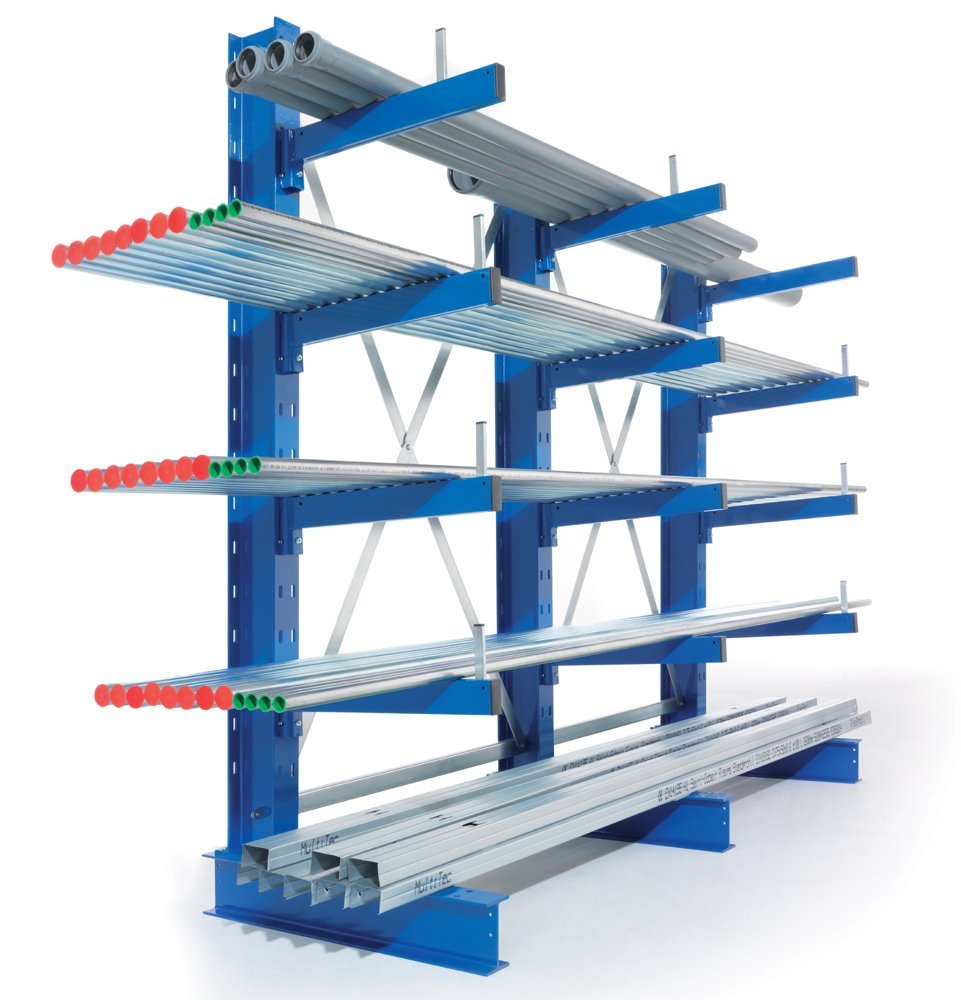

Medium load rack for standing and lying long material, height 2500, width 1000, depth 800 mm, number of arms 4, arm load capacity 250 kg, one-sided web load capacity 1500 kg. Color RAL 5010 blue.

for storage of board and board material
hot cylindrical profiles IPE 140 - perforated on both sides for possible future conversion from single-sided to double-sided
height-adjustable arms in 50 mm increments
protection against falling out of the arms secures the arms against unhooking during storage and unloading of goods
perfect security worked out to the last detail
the specified depth is the depth of the arm, the actual depth of the rack is approx. 230 mm greater

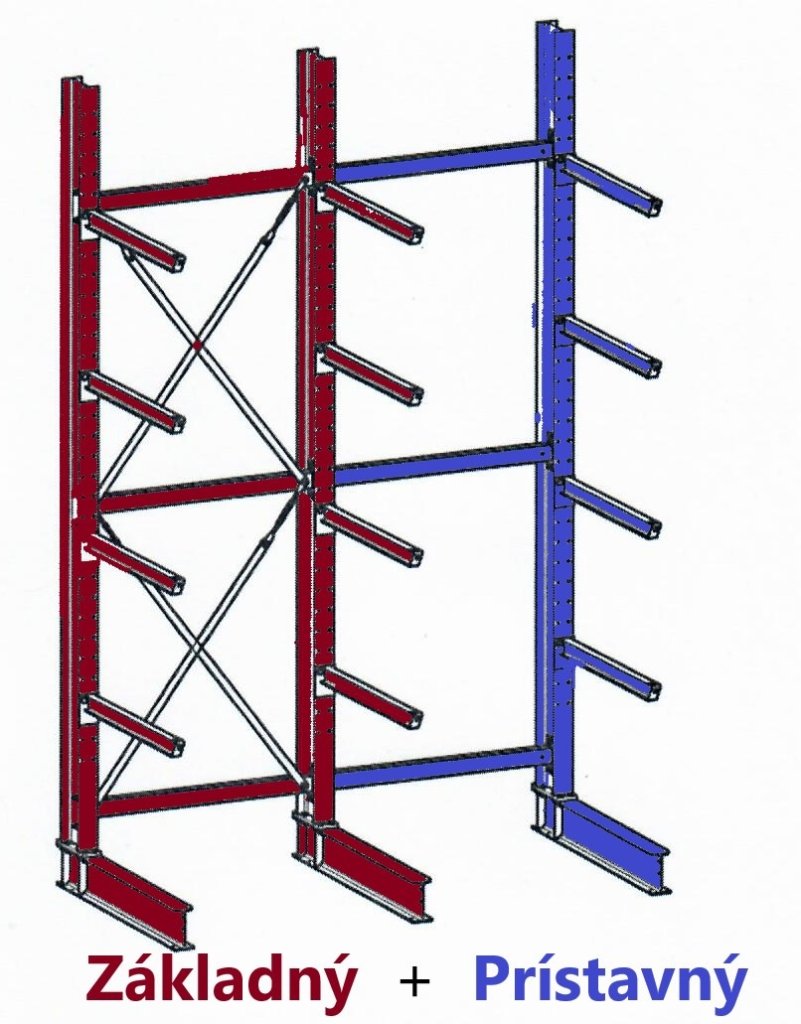

The picture shows the base rack + extension rack.

Height:	2500 mm
Width:	1000 mm
Depth:	800 mm
The bearing capacity of the web is one-sided:	1500 kg
Carrying capacity of the arm:	250 kg
Number of arms:	4
Number of webs:	2
Warranty (years):	5
Manufacturer:

All models

Code	75066	75074	Currently browsing 75078	75070	75082	75086	75090	75094	75103	75107	75111	75115
Height	2000 mm	2500 mm	2500 mm	2000 mm	3000 mm	3000 mm	2000 mm	2000 mm	2500 mm	2500 mm	3000 mm	3000 mm
Width	1000 mm	1000 mm	1000 mm	1000 mm	1000 mm	1000 mm	1300 mm	1300 mm	1300 mm	1300 mm	1300 mm	1300 mm
Depth	500 mm	500 mm	800 mm	800 mm	500 mm	800 mm	500 mm	800 mm	500 mm	800 mm	500 mm	800 mm
The bearing capacity of the web is one-sided	2340 kg	2200 kg	1500 kg	1650 kg	2000 kg	1250 kg	2340 kg	1650 kg	2200 kg	1500 kg	2000 kg	1250 kg
Carrying capacity of the arm	430 kg	430 kg	250 kg	250 kg	430 kg	250 kg	430 kg	250 kg	430 kg	250 kg	430 kg	250 kg
Number of arms	4	4	4	4	5	5	4	4	4	4	5	5
Number of webs	2	2	2	2	2	2	2	2	2	2	2	2
In stock	No	No	No	No	No	No	No	No	No	No	No	No
Price without VAT	446.46 Eur	490.34 Eur	560.51 Eur	516.68 Eur	574.89 Eur	656.27 Eur	450.32 Eur	520.49 Eur	494.20 Eur	564.37 Eur	578.75 Eur	660.08 Eur
	Into the cart	Into the cart	Into the cart	Into the cart	Into the cart	Into the cart	Into the cart	Into the cart	Into the cart	Into the cart	Into the cart	Into the cart

You can buy more

Code: 74895

Additional arm, height 70 mm - 74895

19.78 Eur without VAT

(23.93 Eur with VAT)

Buy

Additional arm complete with cover to be purchased additionally for shelves. Height 70 mm, depth 500 mm, load 430 kg. Color RAL 5010 blue.

MULTISTRONG M cantilever rack - one-sided extension 75079

Code: 75079

MULTISTRONG M cantilever rack - one-sided extension 75079

290.49 Eur without VAT

(351.49 Eur with VAT)

Buy

Medium load rack for standing and lying long material, height 2500, width 1000, depth 800 mm, number of arms 4, arm load capacity 250 kg, one-sided web load capacity 1500 kg. Color RAL 5010 blue. Only one web, serves as an extension of the base rakcs.

Code: 74911

Anti-rolling mandrel 74911

1.54 Eur without VAT

(1.86 Eur with VAT)

Buy

Stop against rolling away 20 x 10 x 170 complete galvanized. Plug-in, usable height 100.

Code: 74912

Anti-rolling mandrel 74912

2.33 Eur without VAT

(2.82 Eur with VAT)

Buy

Stop against rolling 20 x 10 x 270 complete zinc. Plug-in, usable height 200.

Similar products

MULTISTRONG M cantilever rack - single-sided base (12 models)

Code: 75066

MULTISTRONG M cantilever rack - single-sided base (12 models)

446.46 Eur without VAT

(540.22 Eur with VAT)

Buy

Medium load racks for standing and lying long material. Height 2000 - 3000 mm, width 1000 or 1300 mm, depth 500 or 800 mm, number of arms 4 - 5, arm load capacity 250 or 430 kg, one-sided web load capacity 1250 - 2340 kg, rack weights between 50 - 202 kg. Color RAL 5010 blue.

MULTISTRONG M console rack - single-sided base 75074

Code: 75074

MULTISTRONG M console rack - single-sided base 75074

490.34 Eur without VAT

(593.31 Eur with VAT)

Buy

Medium load rack for standing and lying long material, height 2500, width 1000, depth 500 mm, number of arms 4, arm load capacity 430 kg, one-sided web load capacity 2200 kg. Color RAL 5010 blue.

MULTISTRONG M console rack - single-sided base 75070

Code: 75070

MULTISTRONG M console rack - single-sided base 75070

516.68 Eur without VAT

(625.18 Eur with VAT)

Buy

Medium load rack for standing and lying long material, height 2000, width 1000, depth 800 mm, number of arms 4, arm load capacity 250 kg, one-sided web load capacity 1650 kg. Color RAL 5010 blue.

MULTISTRONG M console rack - single-sided base 75082

Code: 75082

MULTISTRONG M console rack - single-sided base 75082

574.89 Eur without VAT

(695.62 Eur with VAT)

Buy

Medium load rack for standing and lying long material, height 3000, width 1000, depth 500 mm, number of arms 5, arm load capacity 430 kg, one-sided web load capacity 2000 kg. Color RAL 5010 blue.

MULTISTRONG M console rack - single-sided base 75086

Code: 75086

MULTISTRONG M console rack - single-sided base 75086

656.27 Eur without VAT

(794.09 Eur with VAT)

Buy

Medium load rack for standing and lying long material, height 3000, width 1000, depth 800 mm, number of arms 5, arm load capacity 250 kg, one-sided web load capacity 1250 kg. Color RAL 5010 blue.

MULTISTRONG M console rack - single-sided base 75090

Code: 75090

MULTISTRONG M console rack - single-sided base 75090

450.32 Eur without VAT

(544.89 Eur with VAT)

Buy

Medium load rack for standing and lying long material, height 2000, width 1300, depth 500 mm, number of arms 4, arm load capacity 430 kg, one-sided web load capacity 2340 kg. Color RAL 5010 blue.

MULTISTRONG M cantilever rack- single-sided base 75094

Code: 75094

MULTISTRONG M cantilever rack- single-sided base 75094

520.49 Eur without VAT

(629.79 Eur with VAT)

Buy

Medium load rack for standing and lying long material, height 2000, width 1300, depth 800 mm, number of arms 4, arm load capacity 250 kg, one-sided web load capacity 1650 kg. Color RAL 5010 blue.

MULTISTRONG M cantilever rack - single-sided base 75103

Code: 75103

MULTISTRONG M cantilever rack - single-sided base 75103

494.20 Eur without VAT

(597.98 Eur with VAT)

Buy

Medium load rack for standing and lying long material, height 2500, width 1300, depth 500 mm, number of arms 4, arm load capacity 430 kg, one-sided web load capacity 2200 kg. Color RAL 5010 blue.

MULTISTRONG M cantilever rack - single-sided base 75107

Code: 75107

MULTISTRONG M cantilever rack - single-sided base 75107

564.37 Eur without VAT

(682.89 Eur with VAT)

Buy

Medium load rack for standing and lying long material, height 2500, width 1300, depth 800 mm, number of arms 4, arm load capacity 250 kg, one-sided web load capacity 1500 kg. Color RAL 5010 blue.

MULTISTRONG M console rack - single-sided base 75111

Code: 75111

MULTISTRONG M console rack - single-sided base 75111

578.75 Eur without VAT

(700.29 Eur with VAT)

Buy

Medium load rack for standing and lying long material, height 3000, width 1300, depth 500 mm, number of arms 5, arm load capacity 430 kg, one-sided web load capacity 2000 kg. Color RAL 5010 blue.

MULTISTRONG M cantilever rack - single-sided base 75115

Code: 75115

MULTISTRONG M cantilever rack - single-sided base 75115

660.08 Eur without VAT

(798.70 Eur with VAT)

Buy

Medium load rack for standing and lying long material, height 3000, width 1300, depth 800 mm, number of arms 5, arm load capacity 250 kg, one-sided web load capacity 1250 kg. Color RAL 5010 blue.

Information / documents

Important information and documents
Available colors and designs

Before you order the shelf:

please note that the dimensions shown (width + depth) are the net dimensions of the shelf of the bookcase
an additional approx. 60 mm (width of the sides) must be added to the total width of the shelf or shelf set
this is important in the case of placing a shelf or a shelf assembly, for example, in a niche or between two walls
when measuring the space in which you want to place the shelf, please don't forget the plinth or heating pipes as well
