MULTISTRONG M cantilever rack - one-sided extension (12 models)

MULTISTRONG M cantilever rack - one-sided extension (12 models)

Code: 75067

Medium load racks for standing and lying long material. Height 2000 - 3000 mm, width 1000 or 1300 mm, depth 500 or 800 mm, number full description and parameters

Show all models

Made to order, delivery time 2 - 5 weeks. It may vary depending on the manufacturer's capacity.

233.44 Eur 282.46 Eur with VAT

Quantity

Description and technical parameters
All models
You can buy more
Similar products
Information / documents

Description and technical parameters

MULTISTRONG M cantilever rack - one-sided extension 75067

Medium load racks for standing and lying long material. Height 2000 - 3000 mm, width 1000 or 1300 mm, depth 500 or 800 mm, number of arms 4 - 5, arm load capacity 250 or 430 kg, one-sided web load capacity 1250 - 2340 kg, rack weights between 50 - 202 kg. Color RAL 5010 blue. Only one web, serves as an extension of the base racks.

for storage of board and board material
hot cylindrical profiles IPE 140 - perforated on both sides for possible future conversion from single-sided to double-sided
height-adjustable arms in 50 mm increments
protection against falling out of the arms secures the arms against unhooking during storage and unloading of goods
perfect security worked out to the last detail
the specified depth is the depth of the arm, the actual depth of the rack is approx. 230 mm greater

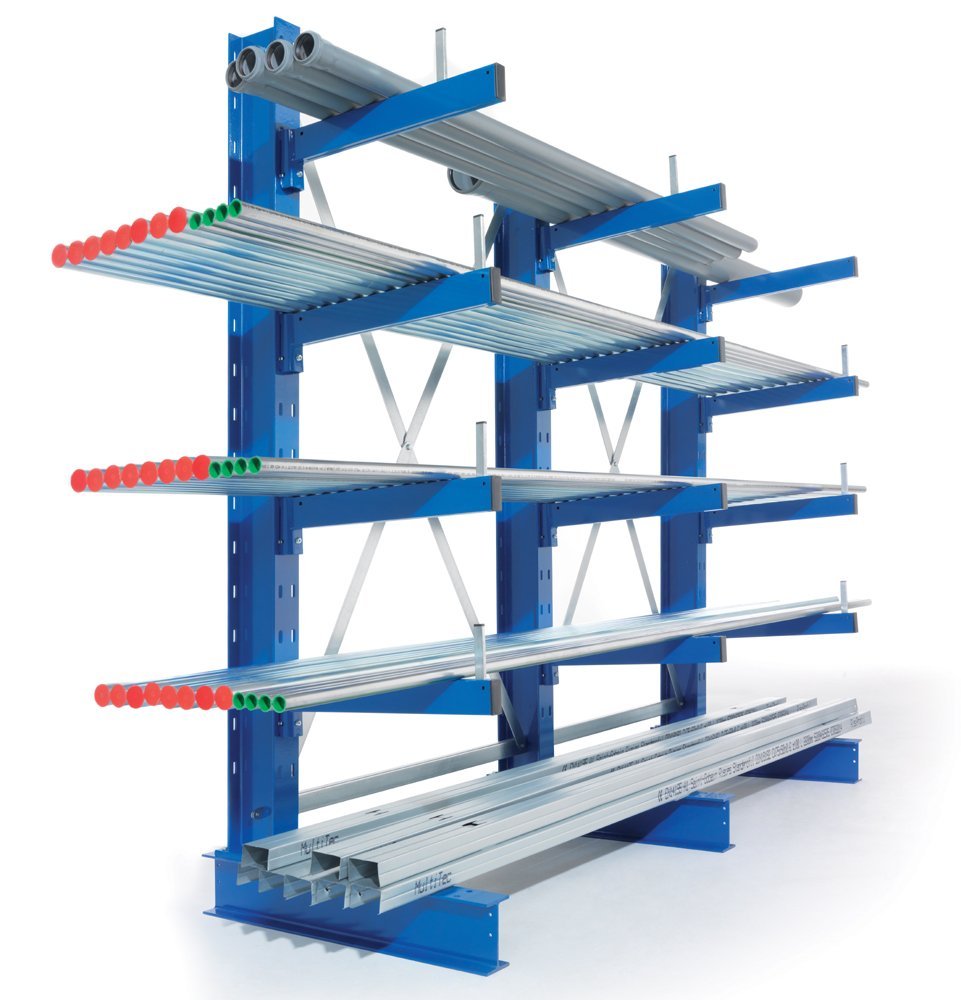

The picture shows the base rack + extension rack.

Height:	2000 mm
Width:	1000 mm
Depth:	500 mm
The bearing capacity of the web is one-sided:	2340 kg
Carrying capacity of the arm:	430 kg
Number of arms:	4
Number of webs:	1
Warranty (years):	5
Manufacturer:

All models

Code	Currently browsing 75067	75071	75075	75079	75083	75087	75091	75095	75104	75108	75112	75116
Height	2000 mm	2000 mm	2500 mm	2500 mm	3000 mm	3000 mm	2000 mm	2000 mm	2500 mm	2500 mm	3000 mm	3000 mm
Width	1000 mm	1000 mm	1000 mm	1000 mm	1000 mm	1000 mm	1300 mm	1300 mm	1300 mm	1300 mm	1300 mm	1300 mm
Depth	500 mm	800 mm	500 mm	800 mm	500 mm	800 mm	500 mm	800 mm	500 mm	800 mm	500 mm	800 mm
The bearing capacity of the web is one-sided	2340 kg	1650 kg	2200 kg	1500 kg	2000 kg	1250 kg	2340 kg	1650 kg	2200 kg	1500 kg	2000 kg	1250 kg
Carrying capacity of the arm	430 kg	250 kg	430 kg	250 kg	430 kg	250 kg	430 kg	250 kg	430 kg	250 kg	430 kg	250 kg
Number of arms	4	4	4	4	5	5	4	4	4	4	5	5
Number of webs	1	1	1	1	1	1	1	1	1	1	1	1
In stock	No	No	No	No	No	No	No	No	No	No	No	No
Price without VAT	233.44 Eur	268.57 Eur	255.41 Eur	290.49 Eur	297.66 Eur	338.37 Eur	237.31 Eur	272.39 Eur	259.22 Eur	294.35 Eur	301.52 Eur	342.19 Eur
	Into the cart	Into the cart	Into the cart	Into the cart	Into the cart	Into the cart	Into the cart	Into the cart	Into the cart	Into the cart	Into the cart	Into the cart

You can buy more

Additional arm, height 70 mm - 74895

Code: 74895

Additional arm, height 70 mm - 74895

19.78 Eur without VAT

(23.93 Eur with VAT)

Additional arm complete with cover to be purchased additionally for shelves. Height 70 mm, depth 500 mm, load 430 kg. Color RAL 5010 blue.

MULTISTRONG M cantilever rack - single-sided base (12 models)

Code: 75066

MULTISTRONG M cantilever rack - single-sided base (12 models)

446.46 Eur without VAT

(540.22 Eur with VAT)

Medium load racks for standing and lying long material. Height 2000 - 3000 mm, width 1000 or 1300 mm, depth 500 or 800 mm, number of arms 4 - 5, arm load capacity 250 or 430 kg, one-sided web load capacity 1250 - 2340 kg, rack weights between 50 - 202 kg. Color RAL 5010 blue.

Anti-rolling mandrel 74911

Code: 74911

Anti-rolling mandrel 74911

1.54 Eur without VAT

(1.86 Eur with VAT)

Stop against rolling away 20 x 10 x 170 complete galvanized. Plug-in, usable height 100.

Anti-rolling mandrel 74912

Code: 74912

Anti-rolling mandrel 74912

2.33 Eur without VAT

(2.82 Eur with VAT)

Stop against rolling 20 x 10 x 270 complete zinc. Plug-in, usable height 200.

Similar products

MULTISTRONG M cantilever rack - one-sided extension 75071

Code: 75071

MULTISTRONG M cantilever rack - one-sided extension 75071

268.57 Eur without VAT

(324.97 Eur with VAT)

Medium load rack for standing and lying long material, height 2000, width 1000, depth 800 mm, number of arms 4, arm load capacity 250 kg, one-sided web load capacity 1650 kg. Color RAL 5010 blue. Only one web, serves as an extension of the base racks.

MULTISTRONG M cantilever rack - one-sided extension 75075

Code: 75075

MULTISTRONG M cantilever rack - one-sided extension 75075

255.41 Eur without VAT

(309.05 Eur with VAT)

Medium load rack for standing and lying long material, height 2500, width 1000, depth 500 mm, number of arms 4, arm load capacity 430 kg, one-sided web load capacity 2200 kg. Color RAL 5010 blue. Only one web, serves as an extension of the base racks.

MULTISTRONG M cantilever rack - one-sided extension 75079

Code: 75079

MULTISTRONG M cantilever rack - one-sided extension 75079

290.49 Eur without VAT

(351.49 Eur with VAT)

Medium load rack for standing and lying long material, height 2500, width 1000, depth 800 mm, number of arms 4, arm load capacity 250 kg, one-sided web load capacity 1500 kg. Color RAL 5010 blue. Only one web, serves as an extension of the base rakcs.

MULTISTRONG M cantilever rack - one-sided extension 75083

Code: 75083

MULTISTRONG M cantilever rack - one-sided extension 75083

297.66 Eur without VAT

(360.17 Eur with VAT)

Medium load rack for standing and lying long material, height 3000, width 1000, depth 500 mm, number of arms 5, arm load capacity 430 kg, one-sided web load capacity 2000 kg. Color RAL 5010 blue. Only one web, serves as an extension of the base racks.

MULTISTRONG M cantilever rack - one-sided extension 75087

Code: 75087

MULTISTRONG M cantilever rack - one-sided extension 75087

338.37 Eur without VAT

(409.43 Eur with VAT)

Medium load rack for standing and lying long material, height 3000, width 1000, depth 800 mm, number of arms 5, arm load capacity 250 kg, one-sided web load capacity 1250 kg. Color RAL 5010 blue. Only one web, serves as an extension of the base racks.

MULTISTRONG M cantilever rack - one-sided extension 75091

Code: 75091

MULTISTRONG M cantilever rack - one-sided extension 75091

237.31 Eur without VAT

(287.15 Eur with VAT)

Medium load rack for standing and lying long material, height 2000, width 1300, depth 500 mm, number of arms 4, arm load capacity 430 kg, one-sided web load capacity 2340 kg. Color RAL 5010 blue. Only one web, serves as an extension of the base racks.

MULTISTRONG M cantilever rack - one-sided extension 75095

Code: 75095

MULTISTRONG M cantilever rack - one-sided extension 75095

272.39 Eur without VAT

(329.59 Eur with VAT)

Medium load rack for standing and lying long material, height 2000, width 1300, depth 800 mm, number of arms 4, arm load capacity 250 kg, one-sided web load capacity 1650 kg. Color RAL 5010 blue. Only one web, serves as an extension of the base racks.

MULTISTRONG M cantilever rack - one-sided extension 75104

Code: 75104

MULTISTRONG M cantilever rack - one-sided extension 75104

259.22 Eur without VAT

(313.66 Eur with VAT)

Medium load rack for standing and lying long material, height 2500, width 1300, depth 500 mm, number of arms 4, arm load capacity 430 kg, one-sided web load capacity 2200 kg. Color RAL 5010 blue. Only one web, serves as an extension of the base racks.

MULTISTRONG M cantilever rack - one-sided extension 75108

Code: 75108

MULTISTRONG M cantilever rack - one-sided extension 75108

294.35 Eur without VAT

(356.16 Eur with VAT)

Medium load rack for standing and lying long material, height 2500, width 1300, depth 800 mm, number of arms 4, arm load capacity 250 kg, one-sided web load capacity 1500 kg. Color RAL 5010 blue. Only one web, serves as an extension of the base racks.

MULTISTRONG M cantilever rack - one-sided extension 75112

Code: 75112

MULTISTRONG M cantilever rack - one-sided extension 75112

301.52 Eur without VAT

(364.84 Eur with VAT)

Medium load rack for standing and lying long material, height 3000, width 1300, depth 500 mm, number of arms 5, arm load capacity 430 kg, one-sided web load capacity 2000 kg. Color RAL 5010 blue. Only one web, serves as an extension of the base racks.

MULTISTRONG M cantilever rack - one-sided extension 75116

Code: 75116

MULTISTRONG M cantilever rack - one-sided extension 75116

342.19 Eur without VAT

(414.05 Eur with VAT)

Medium load rack for standing and lying long material, height 3000, width 1300, depth 800 mm, number of arms 5, arm load capacity 250 kg, one-sided web load capacity 1250 kg. Color RAL 5010 blue. Only one web, serves as an extension of the basic shelves.

Information / documents

Important information and documents
Available colors and designs

Before you order the shelf:

please note that the dimensions shown (width + depth) are the net dimensions of the shelf of the bookcase
an additional approx. 60 mm (width of the sides) must be added to the total width of the shelf or shelf set
this is important in the case of placing a shelf or a shelf assembly, for example, in a niche or between two walls
when measuring the space in which you want to place the shelf, please don't forget the plinth or heating pipes as well
