Code: DPR_02_A
Perforated panel for tables DPR 02A167.28 Eur without VAT
(202.41 Eur with VAT)
Perforated panel for hanging tool holders on workshop tables and 2000 mm wide boards. Height 760, width 2000, depth 95 mm.
Code: DPJ_202

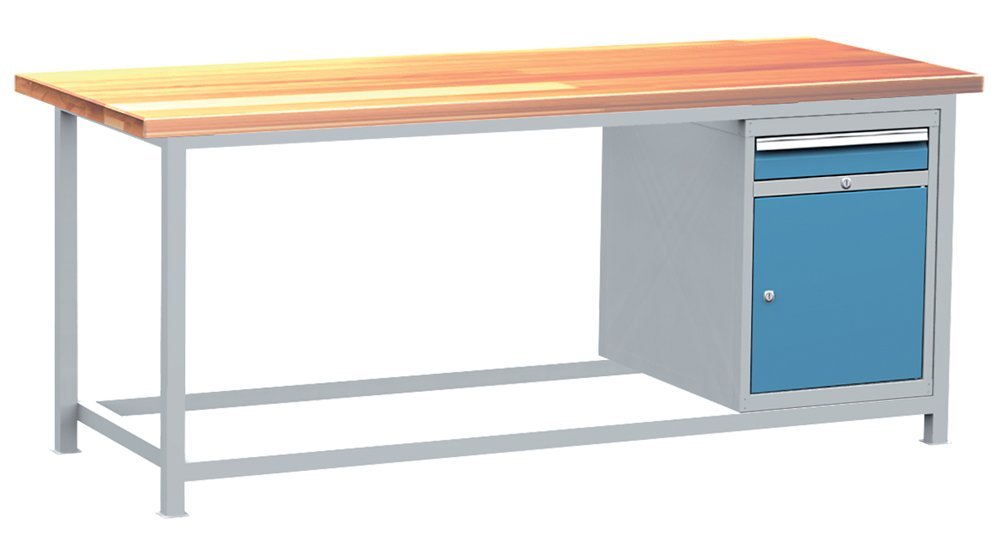

Workshop table with container, assembly DPJ 202, width 2000, height 850, depth 750 mm, worktop beech joint 40 mm. Body capacity full description and parameters
Workshop table with container, assembly DPJ 202, width 2000, height 850, depth 750 mm, worktop beech joint 40 mm. Body capacity 1000 kg, drawer capacity 80 kg, shelf capacity 60 kg.
Table components:
| Height: | 850 mm |
|---|---|
| Board width: | 2000 mm |
| Plate depth: | 750 mm |
| Welded product: | Yes |
| Area load capacity: | 1000 kg |
| Equipment: | 1x container |
| Warranty (years): | 2 |
| Manufacturer: |
|
Code: DPR_02_A
Perforated panel for tables DPR 02A167.28 Eur without VAT
(202.41 Eur with VAT)
Perforated panel for hanging tool holders on workshop tables and 2000 mm wide boards. Height 760, width 2000, depth 95 mm.
Code: DPB_01_A
Cabinet extension DPB 01A258.75 Eur without VAT
(313.09 Eur with VAT)
Two-door cabinet with niche - extension, suitable for workshop tables, width 1000, height 1100, depth 200 mm. Body color RAL 7035 light gray.
Code: DPB_02_A
Cabinet extension DPB 02A209.01 Eur without VAT
(252.90 Eur with VAT)
One-door cabinet with niche - extension, suitable for workshop tables, width 500, height 1100, depth 200 mm. Body color RAL 7035 light gray.
Code: DPM_02_P
Shelf for DPM 02 cabinet15.97 Eur without VAT
(19.32 Eur with VAT)
Additional shelf for workshop cabinets DPM 02A and DPM 02B.
Code: DPM_01_A
Table cabinet DPM 01A99.49 Eur without VAT
(120.38 Eur with VAT)
One-door cabinet DPM 01A, width 318, height 660, depth 349 mm. Body color RAL 7035 light gray.
Code: DPM_02_A
Table cabinet DPM 02A152.71 Eur without VAT
(184.78 Eur with VAT)
Two-door cabinet DPM 02A, width 818, height 660, depth 349 mm. Body color RAL 7035 light gray.
Code: DPM_01_B
Table cabinet DPM 01B79.28 Eur without VAT
(95.93 Eur with VAT)
Cabinet without door DPM 01B, width 318, height 660, depth 349 mm. Body color RAL 7035 light gray.
Code: DPM_02_B
Table cabinet DPM 02B101.24 Eur without VAT
(122.50 Eur with VAT)
Cabinet without door DPM 02B, width 818, height 660, depth 349 mm. Body color RAL 7035 light gray.
Code: DPM_01_P
Shelf for DPM 01 cabinet11.17 Eur without VAT
(13.52 Eur with VAT)
Additional shelf for workshop cabinets DPM 01A and DPM 01B.
Code: DPP_02_A
Table container DPP 02A521.66 Eur without VAT
(631.21 Eur with VAT)
Three-drawer container DPP 02A, width 500, height 660, depth 700 mm. 2x socket 150, 1x 240 mm. Body color RAL 7035 light gray.
Code: DPP_02_B
Table container DPP 02B586.98 Eur without VAT
(710.25 Eur with VAT)
Four-drawer container DPP 02B, width 500, height 660, depth 700 mm. 1x socket 90, 2x 120, 1x 210 mm. Body color RAL 7035 light gray.
Code: DPP_02_C
Table container DPP 02C663.63 Eur without VAT
(802.99 Eur with VAT)
Five-drawer container DPP 02C, width 500, height 660, depth 700 mm. 2x socket 60, 1x 90, 1x 120, 1x 210 mm. Body color RAL 7035 light gray.
Code: DPP_02_D
Table container DPP 02D245.70 Eur without VAT
(297.30 Eur with VAT)
Single-door container DPP 02D, width 500, height 660, depth 700 mm. 1x door 540 mm + 2x adjustable shelves. Body color RAL 7035 light gray.
Code: DPP_02_E1
Table container DPP 02E1388.49 Eur without VAT
(470.07 Eur with VAT)
One-door container with one drawer DPP 02E, width 500, height 660, depth 700 mm. 1x 90mm drawer, 1x 450mm door + 1x adjustable shelf. Body color RAL 7035 light gray.
Code: 7000168
Plastic dividing insert VND 700016839.14 Eur without VAT
(47.36 Eur with VAT)
Plastic dividing insert for VND DPK PD sockets.
Code: VND_DPK_11A
Internal division of sockets VND DPK 11A25.06 Eur without VAT
(30.32 Eur with VAT)
Internal division of sockets DPK VND 11A. Installation is possible in sockets where the height of the socket front is 60 - 120 mm.
Code: VND_DPK_11B
Internal division of VND DPK 11B sockets35.61 Eur without VAT
(43.09 Eur with VAT)
Internal division of sockets DPK VND 11. Installation is possible in sockets where the height of the socket front is 60 - 120 m.
Code: VND_DPK_11C
Internal division of VND DPK 11C sockets43.90 Eur without VAT
(53.12 Eur with VAT)
Internal division of sockets DPK VND 11. Installation is possible in sockets where the height of the socket front is 60 - 120 mm.
Code: DPJ_105
Workshop table with containers, set DPJ 1051 046.51 Eur without VAT
(1 266.28 Eur with VAT)
Workshop table with containers, assembly DPJ 105, width 1500, height 850, depth 750 mm, worktop beech joint 40 mm. Body capacity 1000 kg, shelf capacity 60 kg.
Code: DPJ_102
Workshop table with containers, set DPJ 1021 365.77 Eur without VAT
(1 652.58 Eur with VAT)
Workshop table with containers, assembly DPJ 102, width 1500, height 850, depth 750 mm, worktop beech joint 40 mm. Body capacity 1000 kg.
Code: DPJ_103
Workshop table with containers, set DPJ 103856.16 Eur without VAT
(1 035.95 Eur with VAT)
Workshop table with containers, assembly DPJ 103, width 1500, height 1610, depth 750 mm, worktop beech joint 40 mm. Body capacity 1000 kg, shelf capacity 60 kg.
Code: DPJ_204
Workshop table with containers, set DPJ 2041 851.48 Eur without VAT
(2 240.29 Eur with VAT)
Workshop table with containers, assembly DPJ 204, width 2000, height 850, depth 750 mm, worktop beech joint 40 mm. Body capacity 1000 kg, drawer capacity 80 kg, shelf capacity 60 kg.
Code: DPJ_203
Workshop table with containers, set DPJ 2031 917.52 Eur without VAT
(2 320.20 Eur with VAT)
Workshop table with containers, assembly DPJ 203, width 2000, height 1610, depth 750 mm, worktop beech joint 40 mm. Body capacity 1000 kg, drawer capacity 80 kg.
Code: DPJ_101
Workshop table Kovos DPJ 101455.62 Eur without VAT
(551.30 Eur with VAT)
Basic welded work table, width 1500, height 850, depth 750 mm. Can be supplemented with different types of workshop containers. Body capacity 1000 kg.
Code: DPJ_201
Workshop table Kovos DPJ 201499.63 Eur without VAT
(604.55 Eur with VAT)
Basic welded work table, width 2000, height 850, depth 750 mm. The possibility of filling with different types of containers and attachments. Body capacity 1000 kg.
Code: DPJ_104
Workshop table with containers, set DPJ 1041 785.51 Eur without VAT
(2 160.47 Eur with VAT)
Workshop table with containers, assembly DPJ 104, width 1500, height 850, depth 750 mm, worktop beech joint 40 mm. Body capacity 1000 kg, drawer capacity 80 kg, shelf capacity 60 kg.
Code: DPJ_106
Workshop table with containers, set DPJ 1061 510.36 Eur without VAT
(1 827.54 Eur with VAT)
Workshop table with containers, assembly DPJ 106, width 1500, height 1950, depth 750 mm, worktop beech joint 40 mm. Body capacity 1000 kg, drawer capacity 80 kg, shelf capacity 20 kg.
Code: DPJ_206
Workshop table with containers, set DPJ 2061 651.32 Eur without VAT
(1 998.10 Eur with VAT)
Workshop table with containers, assembly DPJ 206, width 2000, height 850, depth 750 mm, worktop beech joint 40 mm. Body capacity 1000 kg, drawer capacity 80 kg, shelf capacity 20/60 kg.
Code: DPJ_205
Workshop table with containers, set DPJ 2051 143.74 Eur without VAT
(1 383.93 Eur with VAT)
Workshop table with containers, assembly DPJ 205, width 2000, height 850, depth 750 mm, worktop beech joint 40 mm. Body capacity 1000 kg, shelf capacity 60 kg.
KOVOS worktops are made of wood. Wood is a natural material, and therefore due to changes in temperature or humidity, the boards may slightly curve, even though special care is taken in their surface treatment. The stability of the shape of the worktop is guaranteed at a relative air humidity of 50 - 60%. Wooden table tops should definitely not come into direct contact with water and are intended exclusively for interior use. Also, the color of the boards may differ slightly from each other, depending on the input lumber used.
  |
Highly durable worktop layered and glued from beech veneer, sanded and treated with a solution of linseed oil with additives, the upper peripheral edges are bevelled. We offer the board in a thickness of 40 mm. |
|||
 |
Laminated chipboard LTD, we offer the board in a standard thickness of 25 mm with an ABS edge of 2 mm, shade RAL 7035 light gray. |
|||
 |
Board with a raised edge on three sides, the edges are made of 25 mm thick beech joint, their height is 120 mm. The board is sanded and treated with a solution of linseed oil with additives, the upper peripheral edges are bevelled. We offer raised edges for beech joint thicknesses of 25, 40 and 50 mm. |
|||
 |
The front edge of the plate is plated with galvanized or stainless steel sheet 1 mm thick. The sheeting is U-shaped, so the plate is protected from above and below. The upper part of the plate is lowered in the place of plating so that the plating continues smoothly on the plate. We offer plating for beech joints of thickness 25 and 40 mm. |
|||
  |
There is a choice of smooth rubber with a thickness of 4 mm, rubber with a wheel pattern with a thickness of 4 mm or grooved rubber with a fine groove of 6 mm. We offer rubbers for all types of boards.
|
|||
 |
PP boards with a thickness of 15 mm are attached to a beech joint with a thickness of 25 mm, thus creating a combined board, where the beech joint ensures good physical properties and the PP board with good chemical properties. We offer PP boards in white and black. Main advantages of PP board: - light, stable, elastic, sterile |
|||
|
PE boards with a thickness of 15 mm are attached to a beech joint with a thickness of 25 mm, thereby creating a combined board, where the beech joint ensures good physical properties and the PE board with good chemical properties. We offer PP boards in white and black. The main advantages of PE board: - higher chemical resistance |
light gray RAL 7035 (A)
yellow RAL 1023 (B)
red RAL 3000 (B)
blue RAL 5012 (B)
green RAL 6024 (B)
dark gray RAL 7031 (B)
gray / front surfaces blue
RAL 1001
RAL 2008
RAL 3003
RAL 5003
RAL 5005
RAL 5010
RAL 5018
green RAL 6001
RAL 7032
RAL 8014
RAL 9003
RAL 1003
RAL 1007
RAL 1013
RAL 1015
RAL 1016
RAL 1017
RAL 1018
RAL 1021
RAL 1028
RAL 1033
RAL 2000
RAL 2002
RAL 2004
RAL 2009
RAL 2011
RAL 2012
RAL 3001
RAL 3002
RAL 3004
RAL 3005
RAL 3011
RAL 3020
RAL 4003
RAL 4006
RAL 4008
RAL 5002
RAL 5007
RAL 5008
RAL 5009
RAL 5011
RAL 5013
RAL 5014
RAL 5015
RAL 5017
RAL 5023
RAL 5024
RAL 6005
RAL 6017
RAL 6018
RAL 6019
RAL 6029
RAL 6033
RAL 6034
RAL 7001
RAL 7005
RAL 7012
RAL 7015
RAL 7016
RAL 7034
RAL 7036
RAL 7037
RAL 7038
RAL 7040
RAL 7043
RAL 7044
RAL 8004
RAL 8011
RAL 8016
RAL 8017
RAL 8019
RAL 9001
RAL 9002
RAL 9004
RAL 9005
RAL 9010
RAL 9011
RAL 9018
Surface treatment is carried out by the technology of electrostatic application of powder colors on the surface of products pre-treated with Fe phosphate. The colors are fired at a temperature of min. 180 °C approx. 20 min. Using automatic paint application and manual spraying, a uniform color layer is achieved, the thickness of which is on average 50-80 μm.
| Surcharges in % according to the ordered quantity in CZK without VAT | |||||||
| Body / front face combination | from CZK 0 | from 10,000 | from 20,000 | from 50,000 | from 100,000 | from 250,000 | from 500,000 |
| AA + AB | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| AC | 50 | 35 | 16 | 12 | 3.5 | 2.5 | 1.5 |
| AD | 80 | 45 | 20 | 15 | 6 | 4 | 3 |
| BA + BB | 10 | 8 | 6 | 3.5 | 1.5 | 1 | 0 |
| BC | 50 | 35 | 16 | 12 | 3.5 | 2.5 | 1.5 |
| BD | 80 | 45 | 20 | 15 | 6 | 4 | 3 |
| CA + CB | 50 | 35 | 16 | 12 | 3.5 | 2.5 | 1.5 |
| CC | 80 | 45 | 20 | 15 | 6 | 4 | 3 |
| CD | 100 | 50 | 25 | 20 | 8 | 6 | 5 |
| DA + DB | 80 | 45 |
20 | 15 |
6 |
4 |
3 |
| DC + DD |
100 | 50 | 25 | 20 | 8 | 6 | 5 |
| Category E | individual surcharge | ||||||
