Workshop table leg DPN 01AEV 01

Code: DPN_01_AEV_01

Leg with two electrical sockets 230V / 16A and two quick couplings for air connection. Height 810 mm, width 150 mm, depth 699 mm, full description and parameters

Made to order, delivery time 4 - 6 weeks. It may vary depending on the manufacturer's capacity.

466.91 Eur 564.96 Eur with VAT

Quantity

Description and technical parameters

Workshop table leg DPN 01AEV 01

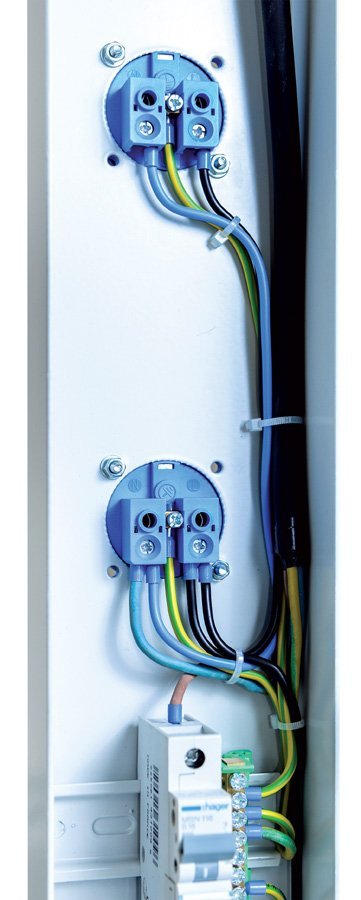

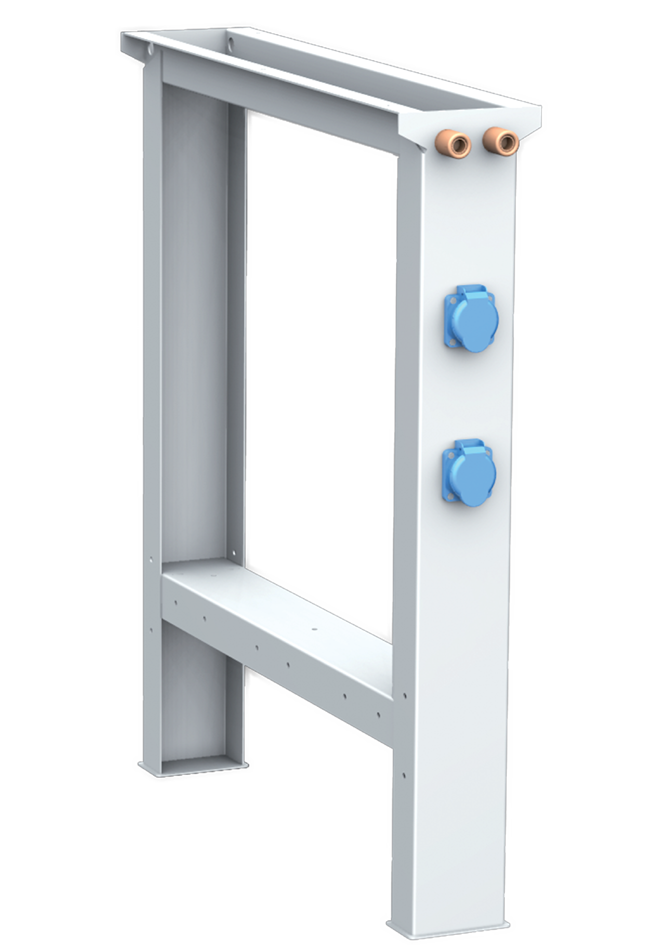

Leg with two electrical sockets 230V / 16A and two quick couplings for air connection. Height 810 mm, width 150 mm, depth 699 mm, color light gray RAL 7035.

  • height of the leg structure is 810 mm
  • construction width 150 mm
  • construction depth 699 mm
  • height of the work surface of the table: height of the structure + thickness of the selected board
Height: 810 mm
Width: 150 mm
Depth: 700 mm
Mass: 11 kg
Area load capacity: 500 kg
Warranty (years): 2
Manufacturer:

You can buy more

Similar products

Information / documents

  • Workshop table configurator
  • KOVOS worktops
  • Documents to download
KOVOS electronic workshop table configurator

KOVOS worktops are made of wood. Wood is a natural material, and therefore due to changes in temperature or humidity, the boards may slightly curve, even though special care is taken in their surface treatment. The stability of the shape of the worktop is guaranteed at a relative air humidity of 50 - 60%. Wooden table tops should definitely not come into direct contact with water and are intended exclusively for interior use. Also, the color of the boards may differ slightly from each other, depending on the input lumber used.

Highly durable worktop layered and glued from beech veneer, sanded and treated with a solution of linseed oil with additives, the upper peripheral edges are bevelled. We offer the board in a thickness of 40 mm.

Laminated chipboard LTD, we offer the board in a standard thickness of 25 mm with an ABS edge of 2 mm, shade RAL 7035 light gray.

Board with a raised edge on three sides, the edges are made of 25 mm thick beech joint, their height is 120 mm. The board is sanded and treated with a solution of linseed oil with additives, the upper peripheral edges are bevelled. We offer raised edges for beech joint thicknesses of 25, 40 and 50 mm.

The front edge of the plate is plated with galvanized or stainless steel sheet 1 mm thick. The sheeting is U-shaped, so the plate is protected from above and below. The upper part of the plate is lowered in the place of plating so that the plating continues smoothly on the plate. We offer plating for beech joints of thickness 25 and 40 mm.

There is a choice of smooth rubber with a thickness of 4 mm, rubber with a wheel pattern with a thickness of 4 mm or grooved rubber with a fine groove of 6 mm. We offer rubbers for all types of boards.

smooth rubber 4 mm

wheel pattern 4 mm

grooved rubber 6 mm

PP boards with a thickness of 15 mm are attached to a beech joint with a thickness of 25 mm, thus creating a combined board, where the beech joint ensures good physical properties and the PP board with good chemical properties. We offer PP boards in white and black.

Main advantages of PP board:

- light, stable, elastic, sterile
- high insulating ability
- high load shock absorbing
- acid resistant
- safe for food
- recyclable
- production without additives harmful to the environment and health

PE boards with a thickness of 15 mm are attached to a beech joint with a thickness of 25 mm, thereby creating a combined board, where the beech joint ensures good physical properties and the PE board with good chemical properties. We offer PP boards in white and black.

The main advantages of PE board:

- higher chemical resistance
- good impact expansion
- shock-absorbing and impact-resistant even at low temperatures
- well weldable
- well thermoformable
- waterproof
- very good electrical insulation capabilities
- recommended for food storage
- physiologically unsuspicious
- suitable for contact with drinking water
