Code: EPS_11
Economy workshop table. 25 mm thick beech joint plate. Width 1500 mm, depth 750 mm, fixed table height 835 mm, container with five full description and parameters

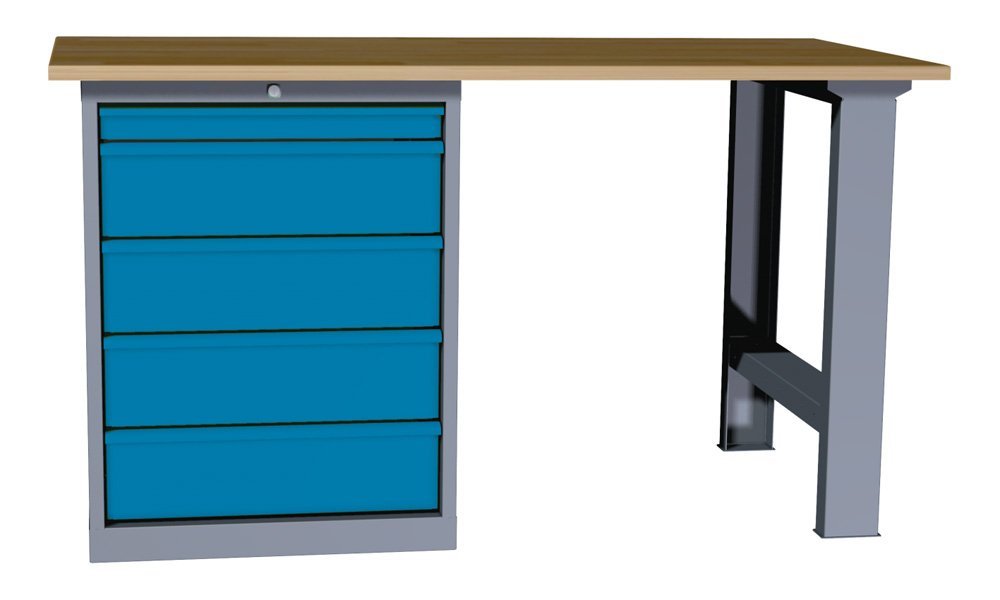

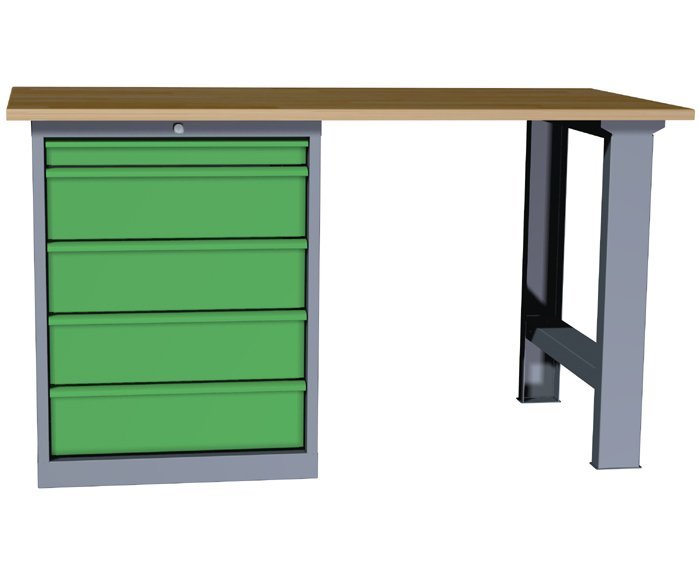

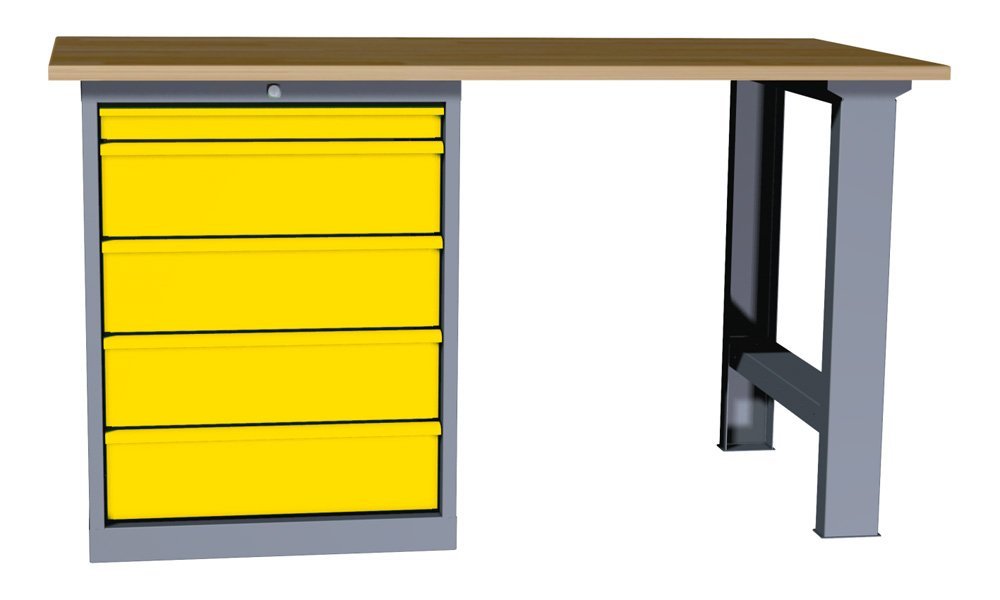

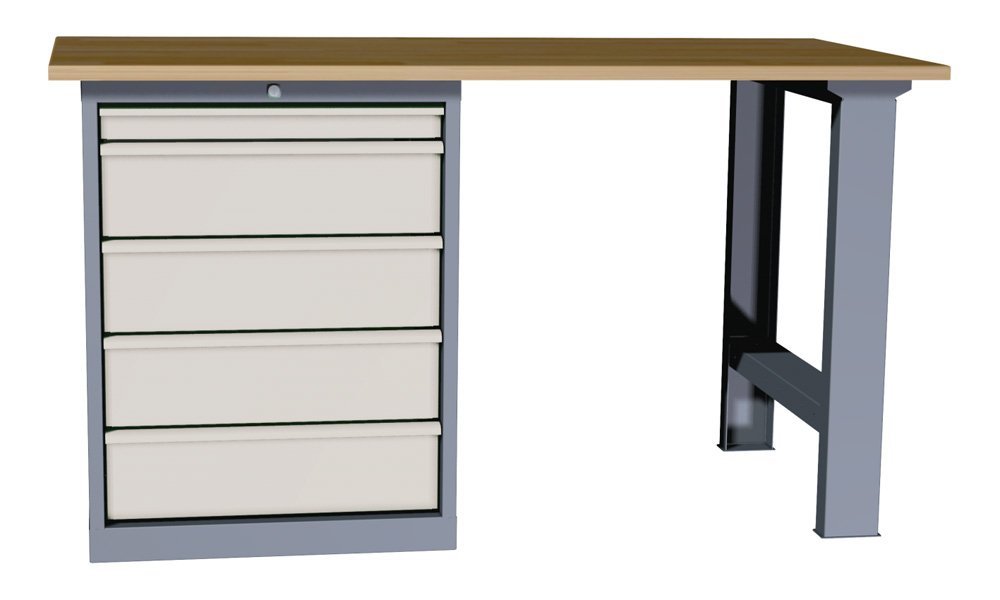

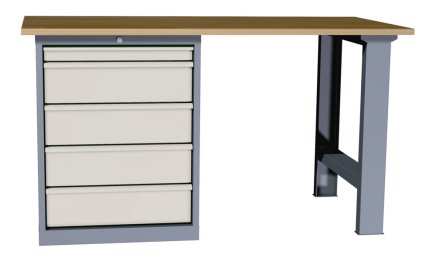

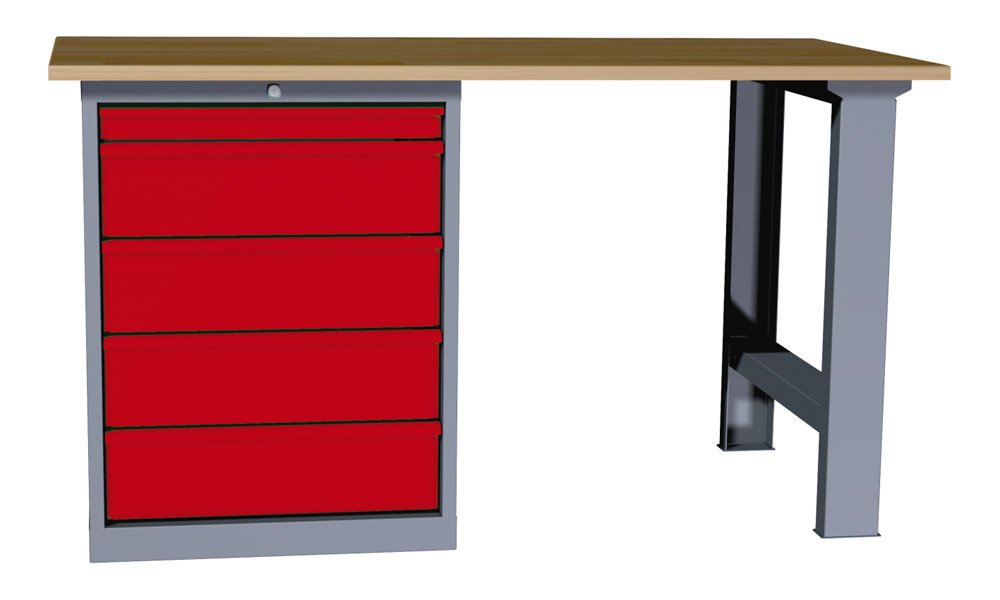

Economy workshop table. 25 mm thick beech joint plate. Width 1500 mm, depth 750 mm, fixed table height 835 mm, container with five drawers. The 620 x 600 mm container can be attached on the right or left, 1 x 60, 4 x 150 mm drawer. Body color RAL 7031 dark gray.
| Height: | 835 mm |
|---|---|
| Board width: | 1500 mm |
| Plate depth: | 750 mm |
| Mass: | 93.2 kg |
| Area load capacity: | 300 kg |
| Equipment: | 1x container |
| Assembled product: | Yes |
| Warranty (years): | 2 |
| Manufacturer: |
|
Code: VND_EPO_11A
Internal division of VND EPO 11A sockets26.83 Eur without VAT
(32.46 Eur with VAT)
Internal division of VND EPO 11A sockets. Installation is possible in sockets where the height of the socket front is 60 and 90 mm. Dimensions 47 x 538 x 457 mm.
Code: VND_EPO_12A
Internal division of sockets VND EPO 12A40.56 Eur without VAT
(49.08 Eur with VAT)
Internal division of sockets VND EPO 12A. Installation is possible in drawers where the height of the drawer front is 120 and 150 mm. Dimensions 95 x 538 x 457 mm.
Code: VND_EPO_11B
Internal division of VND EPO 11B sockets41.79 Eur without VAT
(50.57 Eur with VAT)
Internal division of sockets VND EPO 11B. Installation is possible in sockets where the height of the socket front is 60 and 90 mm. Dimensions 47 x 538 x 457 mm.
Code: VND_EPO_12B
Internal division of sockets VND EPO 12B58.83 Eur without VAT
(71.18 Eur with VAT)
Internal division of sockets VND EPO 12B. Installation is possible in drawers where the height of the drawer front is 120 and 150 mm. Dimensions 95 x 538 x 457 mm.
Code: VND_EPO_11C
Internal division of sockets VND EPO 11C54.08 Eur without VAT
(65.44 Eur with VAT)
Internal division of sockets VND EPO 11C. Installation is possible in sockets where the height of the socket front is 60 and 90 mm. Dimensions 47 x 538 x 457 mm.
Code: VND_EPO_12C
Internal division of sockets VND EPO 12C83.57 Eur without VAT
(101.12 Eur with VAT)
Internal division of sockets VND EPO 12C. Installation is possible in drawers where the height of the drawer front is 120 and 150 mm. Dimensions 95 x 538 x 457 mm.
Code: EPO_01_A
Workshop drawer cabinet Economy EPO 01A624.44 Eur without VAT
(755.57 Eur with VAT)
Six-drawer workshop cabinet, width 620, height 1000, depth 600 mm. Body color gray RAL 7031, drawer color green RAL 6001, blue RAL 5012, red RAL 3000, light gray RAL 7035 or yellow RAL 1023. 1x drawer 90, 5x 150 mm.
Code: EPO_03_A
Workbench container Economy EPO 03A538.52 Eur without VAT
(651.61 Eur with VAT)
Five-drawer workbench container, width 620, height 810, depth 600 mm. Body color gray RAL 7031, drawer color green RAL 6001, blue RAL 5012, red RAL 3000, light gray RAL 7035 or yellow RAL 1023. 1x drawer 60, 4x 150 mm.
Code: EPO_01_C
Workshop drawer cabinet Economy EPO 01C681.67 Eur without VAT
(824.82 Eur with VAT)
Eight-drawer workshop cabinet, width 620, height 1000, depth 600 mm. Body color gray RAL 7031, drawer color green RAL 6001, blue RAL 5012, red RAL 3000, light gray RAL 7035 or yellow RAL 1023. 2x drawer 60, 2x 90, 2x 120, 2x 150 mm.
Code: EPO_03_D
Workbench container Economy EPO 03D350.23 Eur without VAT
(423.78 Eur with VAT)
Work table container, width 620, height 810, depth 600 mm. Body color gray RAL 7031, drawer color green RAL 6001, blue RAL 5012, red RAL 3000, light gray RAL 7035 or yellow RAL 1023, 1x shelf, 1x internal drawer. Shelf capacity 60 kg, drawer capacity 40 kg.
Code: EPS_01_A
Work table Economy EPS 01A332.24 Eur without VAT
(402.01 Eur with VAT)
Economy workshop table. 25 mm thick beech joint plate. Width 1500 mm, depth 750 mm, fixed table height 835 mm. Color gray RAL 7031.
Code: EPS_12
Work table Economy EPS 12513.23 Eur without VAT
(621.01 Eur with VAT)
Economy workshop table. 25 mm thick beech joint plate. Width 1500 mm, depth 750 mm, fixed table height 835 mm, 1x suspended drawer EPZ_01_A, drawer height 90 mm. Body color RAL 7031 dark gray.
Code: EPZ_01_A
Hanging socket Economy EPZ 01A181.13 Eur without VAT
(219.17 Eur with VAT)
Hanging desk drawer, width 620, height 180, depth 600 mm. Body color gray RAL 7031, drawer color green RAL 6001, blue RAL 5012, red RAL 3000, light gray RAL 7035 or yellow RAL 1023. 1x drawer 90 mm.
Code: EPD_01_A
Workshop cabinet Economy EPD 01A476.06 Eur without VAT
(576.03 Eur with VAT)
Economy one-door workshop cabinet. Height 1800 x width 620 x depth 600 mm, 4 adjustable shelves. Body color gray RAL 7031, door color green RAL 6001, blue RAL 5012, red RAL 3000 or yellow RAL 1023.
Code: EPD_01_B
Workshop cabinet Economy EPD 01B569.89 Eur without VAT
(689.57 Eur with VAT)
Economy one-door workshop cabinet. Height 1800 x width 620 x depth 600 mm, 4 adjustable shelves, 3 drawers. Body color gray RAL 7031, door color green RAL 6001, blue RAL 5012, red RAL 3000, light gray RAL 7035 or yellow RAL 1023.
Code: EPV_01_A
Service trolley Economy EPV 01A631.41 Eur without VAT
(764.01 Eur with VAT)
Workshop service cart, width 620, height 930, depth 600 mm. 6 drawers. Upper surface with rubber and frame to prevent objects from falling out. Body color gray RAL 7031, drawer fronts green RAL 6001, blue RAL 5012, red RAL 3000, light gray RAL 7035 or yellow RAL 1023. 1x drawer 60, 2x 90, 1x 120, 2x 150 mm.
Code: EPD_01_E
Workshop cabinet Economy EPD 01E747.76 Eur without VAT
(904.79 Eur with VAT)
Economy one-door workshop cabinet. Height 1800 x width 620 x depth 600 mm, 3 adjustable shelves, 8 drawers. Body color gray RAL 7031, door color green RAL 6001, blue RAL 5012, red RAL 3000, light gray RAL 7035 or yellow RAL 1023.
KOVOS worktops are made of wood. Wood is a natural material, and therefore due to changes in temperature or humidity, the boards may slightly curve, even though special care is taken in their surface treatment. The stability of the shape of the worktop is guaranteed at a relative air humidity of 50 - 60%. Wooden table tops should definitely not come into direct contact with water and are intended exclusively for interior use. Also, the color of the boards may differ slightly from each other, depending on the input lumber used.
  |
Highly durable worktop layered and glued from beech veneer, sanded and treated with a solution of linseed oil with additives, the upper peripheral edges are bevelled. We offer the board in a thickness of 40 mm. |
|||
 |
Laminated chipboard LTD, we offer the board in a standard thickness of 25 mm with an ABS edge of 2 mm, shade RAL 7035 light gray. |
|||
 |
Board with a raised edge on three sides, the edges are made of 25 mm thick beech joint, their height is 120 mm. The board is sanded and treated with a solution of linseed oil with additives, the upper peripheral edges are bevelled. We offer raised edges for beech joint thicknesses of 25, 40 and 50 mm. |
|||
 |
The front edge of the plate is plated with galvanized or stainless steel sheet 1 mm thick. The sheeting is U-shaped, so the plate is protected from above and below. The upper part of the plate is lowered in the place of plating so that the plating continues smoothly on the plate. We offer plating for beech joints of thickness 25 and 40 mm. |
|||
  |
There is a choice of smooth rubber with a thickness of 4 mm, rubber with a wheel pattern with a thickness of 4 mm or grooved rubber with a fine groove of 6 mm. We offer rubbers for all types of boards.
|
|||
 |
PP boards with a thickness of 15 mm are attached to a beech joint with a thickness of 25 mm, thus creating a combined board, where the beech joint ensures good physical properties and the PP board with good chemical properties. We offer PP boards in white and black. Main advantages of PP board: - light, stable, elastic, sterile |
|||
|
PE boards with a thickness of 15 mm are attached to a beech joint with a thickness of 25 mm, thereby creating a combined board, where the beech joint ensures good physical properties and the PE board with good chemical properties. We offer PP boards in white and black. The main advantages of PE board: - higher chemical resistance |
light gray RAL 7035 (A)
yellow RAL 1023 (B)
red RAL 3000 (B)
blue RAL 5012 (B)
green RAL 6024 (B)
dark gray RAL 7031 (B)
gray / front surfaces blue
RAL 1001
RAL 2008
RAL 3003
RAL 5003
RAL 5005
RAL 5010
RAL 5018
green RAL 6001
RAL 7032
RAL 8014
RAL 9003
RAL 1003
RAL 1007
RAL 1013
RAL 1015
RAL 1016
RAL 1017
RAL 1018
RAL 1021
RAL 1028
RAL 1033
RAL 2000
RAL 2002
RAL 2004
RAL 2009
RAL 2011
RAL 2012
RAL 3001
RAL 3002
RAL 3004
RAL 3005
RAL 3011
RAL 3020
RAL 4003
RAL 4006
RAL 4008
RAL 5002
RAL 5007
RAL 5008
RAL 5009
RAL 5011
RAL 5013
RAL 5014
RAL 5015
RAL 5017
RAL 5023
RAL 5024
RAL 6005
RAL 6017
RAL 6018
RAL 6019
RAL 6029
RAL 6033
RAL 6034
RAL 7001
RAL 7005
RAL 7012
RAL 7015
RAL 7016
RAL 7034
RAL 7036
RAL 7037
RAL 7038
RAL 7040
RAL 7043
RAL 7044
RAL 8004
RAL 8011
RAL 8016
RAL 8017
RAL 8019
RAL 9001
RAL 9002
RAL 9004
RAL 9005
RAL 9010
RAL 9011
RAL 9018
Surface treatment is carried out by the technology of electrostatic application of powder colors on the surface of products pre-treated with Fe phosphate. The colors are fired at a temperature of min. 180 °C approx. 20 min. Using automatic paint application and manual spraying, a uniform color layer is achieved, the thickness of which is on average 50-80 μm.
| Surcharges in % according to the ordered quantity in CZK without VAT | |||||||
| Body / front face combination | from CZK 0 | from 10,000 | from 20,000 | from 50,000 | from 100,000 | from 250,000 | from 500,000 |
| AA + AB | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| AC | 50 | 35 | 16 | 12 | 3.5 | 2.5 | 1.5 |
| AD | 80 | 45 | 20 | 15 | 6 | 4 | 3 |
| BA + BB | 10 | 8 | 6 | 3.5 | 1.5 | 1 | 0 |
| BC | 50 | 35 | 16 | 12 | 3.5 | 2.5 | 1.5 |
| BD | 80 | 45 | 20 | 15 | 6 | 4 | 3 |
| CA + CB | 50 | 35 | 16 | 12 | 3.5 | 2.5 | 1.5 |
| CC | 80 | 45 | 20 | 15 | 6 | 4 | 3 |
| CD | 100 | 50 | 25 | 20 | 8 | 6 | 5 |
| DA + DB | 80 | 45 |
20 | 15 |
6 |
4 |
3 |
| DC + DD |
100 | 50 | 25 | 20 | 8 | 6 | 5 |
| Category E | individual surcharge | ||||||
