- In stock
Code: PSZ_POL_01
Hanging metal shelf PSZ_POL_0159.31 Eur without VAT
(71.77 Eur with VAT)
Hanging metal shelf for punch racks. Dimensions in mm (H x W x D) 100 x 950 x 215.
Code: PSZ_22_A_VAR_4

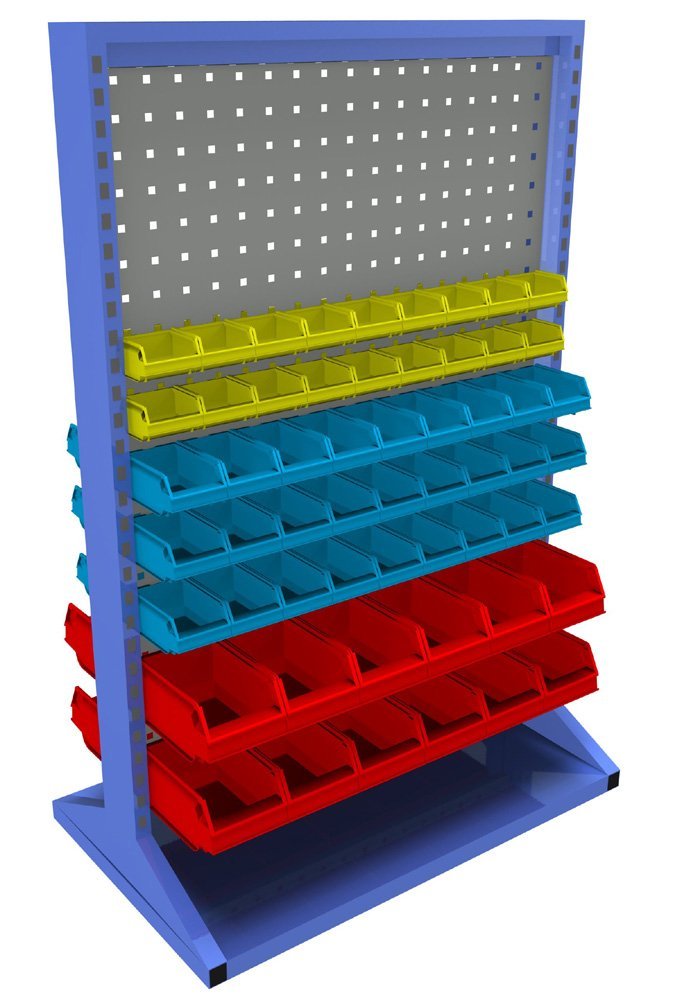

Stationary double-sided panel with equipment. The construction of the stand consists of a robust frame with metal perforated walls full description and parameters
Stationary double-sided panel with equipment. The construction of the stand consists of a robust frame with metal perforated walls for hanging plastic boxes and tool holders. The frame is painted with durable powder paint, the perforated panels are galvanized or painted with durable powder paint.
| Height: | 1503 mm |
|---|---|
| Width: | 1000 mm |
| Depth: | 504 mm |
| Mass: | 52.8 kg |
| Number of panels: | 6 |
| Number of plastic containers: | 114 |
| Welded product: | Yes |
| Warranty (years): | 2 |
| Manufacturer: |
|
| Code | PSZ_22_A_VAR_1 | PSZ_22_A_VAR_2 | PSZ_22_A_VAR_3 | Currently browsing PSZ_22_A_VAR_4 | PSZ_22_A_VAR_5 | PSZ_22_A_VAR_6 |
|---|---|---|---|---|---|---|
| Height | 1503 mm | 1503 mm | 1503 mm | 1503 mm | 1503 mm | 1503 mm |
| Width | 1000 mm | 1000 mm | 1000 mm | 1000 mm | 1000 mm | 1000 mm |
| Depth | 504 mm | 504 mm | 504 mm | 504 mm | 504 mm | 504 mm |
| Mass | 52.8 kg | 52.8 kg | 52.8 kg | 52.8 kg | 52.8 kg | 52.8 kg |
| Number of panels | 6 | 6 | 6 | 6 | 6 | 6 |
| Number of plastic containers | 150 | 150 | 150 | 114 | 90 | 60 |
| Welded product | Yes | Yes | Yes | Yes | Yes | Yes |
| In stock | No | No | No | No | No | No |
| Price without VAT | 697.46 Eur | 676.40 Eur | 711.50 Eur | 589.10 Eur | 591.56 Eur | 609.80 Eur |
Code: PSZ_POL_01
Hanging metal shelf PSZ_POL_0159.31 Eur without VAT
(71.77 Eur with VAT)
Hanging metal shelf for punch racks. Dimensions in mm (H x W x D) 100 x 950 x 215.
Code: QDN_50_01
Bracket set for Q-system QDN 500174.50 Eur without VAT
(90.15 Eur with VAT)
Set of brackets for the Q-system QDN 5001.
Code: QDN_50_02
Bracket set for Q-system QDN 500246.90 Eur without VAT
(56.75 Eur with VAT)
Set of holders for Q-system QDN 5002.
Code: QDN_50_03
Bracket set for Q-system QDN 500373.01 Eur without VAT
(88.34 Eur with VAT)
Set of brackets for Q-system QDN 5003.
Code: QDN_50_04
Bracket set for Q-system QDN 500468.82 Eur without VAT
(83.27 Eur with VAT)
Set of holders for Q-system QDN 5004.
Code: PSZ_22_A_S1
Perforated stand PSZ 22 A S1 double-sided for 6 panels428.95 Eur without VAT
(519.03 Eur with VAT)
Fixed double-sided perforated stand for 6 panels. Used for hanging tools and plastic boxes. Overall dimensions of the stand in mm (H x W x D) 1503 x 1000 x 504.
Code: PSZ_22_A_VAR_1
Stationary double-sided panels with medium equipment (6 models)697.46 Eur without VAT
(843.93 Eur with VAT)
Stationary double-sided panels with equipment. The construction of the stand consists of a robust frame with metal perforated walls for hanging plastic boxes and tool holders. The frame is painted with durable powder paint, the perforated panels are galvanized or painted with durable powder paint.
Code: PSZ_22_A_VAR_2
Stationary double-sided panel with equipment PSZ_22_A_VAR_2676.40 Eur without VAT
(818.44 Eur with VAT)
Stationary double-sided panel with equipment. The structure of the stand consists of a robust frame with metal perforated walls for hanging plastic boxes. The frame is painted with durable powder paint, the perforated panels are galvanized or painted with durable powder paint.
Code: PSZ_22_A_VAR_3
Stationary double-sided panel with equipment PSZ_22_A_VAR_3711.50 Eur without VAT
(860.92 Eur with VAT)
Stationary double-sided panel with equipment. The structure of the stand consists of a robust frame with metal perforated walls for hanging plastic boxes. The frame is painted with durable powder paint, the perforated panels are galvanized or painted with durable powder paint.
Code: PSZ_22_A_VAR_5
Stationary double-sided panel with equipment PSZ_22_A_VAR_5591.56 Eur without VAT
(715.79 Eur with VAT)
Stationary double-sided panel with equipment. The construction of the stand consists of a robust frame with metal perforated walls for hanging plastic boxes and tool holders. The frame is painted with durable powder paint, the perforated panels are galvanized or painted with durable powder paint.
Code: PSZ_22_A_VAR_6
Stationary double-sided panel with equipment PSZ_22_A_VAR_6609.80 Eur without VAT
(737.86 Eur with VAT)
Stationary double-sided panel with equipment. The construction of the stand consists of a robust frame with metal perforated walls for hanging plastic boxes and tool holders. The frame is painted with durable powder paint, the perforated panels are galvanized or painted with durable powder paint.
KOVOS worktops are made of wood. Wood is a natural material, and therefore due to changes in temperature or humidity, the boards may slightly curve, even though special care is taken in their surface treatment. The stability of the shape of the worktop is guaranteed at a relative air humidity of 50 - 60%. Wooden table tops should definitely not come into direct contact with water and are intended exclusively for interior use. Also, the color of the boards may differ slightly from each other, depending on the input lumber used.
  |
Highly durable worktop layered and glued from beech veneer, sanded and treated with a solution of linseed oil with additives, the upper peripheral edges are bevelled. We offer the board in a thickness of 40 mm. |
|||
 |
Laminated chipboard LTD, we offer the board in a standard thickness of 25 mm with an ABS edge of 2 mm, shade RAL 7035 light gray. |
|||
 |
Board with a raised edge on three sides, the edges are made of 25 mm thick beech joint, their height is 120 mm. The board is sanded and treated with a solution of linseed oil with additives, the upper peripheral edges are bevelled. We offer raised edges for beech joint thicknesses of 25, 40 and 50 mm. |
|||
 |
The front edge of the plate is plated with galvanized or stainless steel sheet 1 mm thick. The sheeting is U-shaped, so the plate is protected from above and below. The upper part of the plate is lowered in the place of plating so that the plating continues smoothly on the plate. We offer plating for beech joints of thickness 25 and 40 mm. |
|||
  |
There is a choice of smooth rubber with a thickness of 4 mm, rubber with a wheel pattern with a thickness of 4 mm or grooved rubber with a fine groove of 6 mm. We offer rubbers for all types of boards.
|
|||
 |
PP boards with a thickness of 15 mm are attached to a beech joint with a thickness of 25 mm, thus creating a combined board, where the beech joint ensures good physical properties and the PP board with good chemical properties. We offer PP boards in white and black. Main advantages of PP board: - light, stable, elastic, sterile |
|||
|
PE boards with a thickness of 15 mm are attached to a beech joint with a thickness of 25 mm, thereby creating a combined board, where the beech joint ensures good physical properties and the PE board with good chemical properties. We offer PP boards in white and black. The main advantages of PE board: - higher chemical resistance |
light gray RAL 7035 (A)
yellow RAL 1023 (B)
red RAL 3000 (B)
blue RAL 5012 (B)
green RAL 6024 (B)
dark gray RAL 7031 (B)
gray / front surfaces blue
RAL 1001
RAL 2008
RAL 3003
RAL 5003
RAL 5005
RAL 5010
RAL 5018
green RAL 6001
RAL 7032
RAL 8014
RAL 9003
RAL 1003
RAL 1007
RAL 1013
RAL 1015
RAL 1016
RAL 1017
RAL 1018
RAL 1021
RAL 1028
RAL 1033
RAL 2000
RAL 2002
RAL 2004
RAL 2009
RAL 2011
RAL 2012
RAL 3001
RAL 3002
RAL 3004
RAL 3005
RAL 3011
RAL 3020
RAL 4003
RAL 4006
RAL 4008
RAL 5002
RAL 5007
RAL 5008
RAL 5009
RAL 5011
RAL 5013
RAL 5014
RAL 5015
RAL 5017
RAL 5023
RAL 5024
RAL 6005
RAL 6017
RAL 6018
RAL 6019
RAL 6029
RAL 6033
RAL 6034
RAL 7001
RAL 7005
RAL 7012
RAL 7015
RAL 7016
RAL 7034
RAL 7036
RAL 7037
RAL 7038
RAL 7040
RAL 7043
RAL 7044
RAL 8004
RAL 8011
RAL 8016
RAL 8017
RAL 8019
RAL 9001
RAL 9002
RAL 9004
RAL 9005
RAL 9010
RAL 9011
RAL 9018
Surface treatment is carried out by the technology of electrostatic application of powder colors on the surface of products pre-treated with Fe phosphate. The colors are fired at a temperature of min. 180 °C approx. 20 min. Using automatic paint application and manual spraying, a uniform color layer is achieved, the thickness of which is on average 50-80 μm.
| Surcharges in % according to the ordered quantity in CZK without VAT | |||||||
| Body / front face combination | from CZK 0 | from 10,000 | from 20,000 | from 50,000 | from 100,000 | from 250,000 | from 500,000 |
| AA + AB | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| AC | 50 | 35 | 16 | 12 | 3.5 | 2.5 | 1.5 |
| AD | 80 | 45 | 20 | 15 | 6 | 4 | 3 |
| BA + BB | 10 | 8 | 6 | 3.5 | 1.5 | 1 | 0 |
| BC | 50 | 35 | 16 | 12 | 3.5 | 2.5 | 1.5 |
| BD | 80 | 45 | 20 | 15 | 6 | 4 | 3 |
| CA + CB | 50 | 35 | 16 | 12 | 3.5 | 2.5 | 1.5 |
| CC | 80 | 45 | 20 | 15 | 6 | 4 | 3 |
| CD | 100 | 50 | 25 | 20 | 8 | 6 | 5 |
| DA + DB | 80 | 45 |
20 | 15 |
6 |
4 |
3 |
| DC + DD |
100 | 50 | 25 | 20 | 8 | 6 | 5 |
| Category E | individual surcharge | ||||||
