Code: UF-3-2H

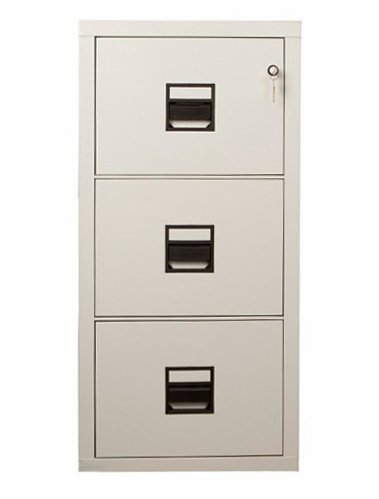

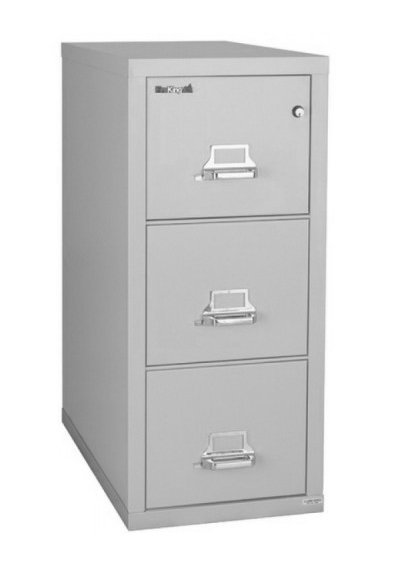

Fireproof filing cabinet Fireking type UF-3-2H. Height 1103 x width 539 x depth 813 mm. Fire resistance test 120 minutes, color full description and parameters
Fireproof filing cabinet Fireking type UF-3-2H. Height 1103 x width 539 x depth 813 mm. Fire resistance test 120 minutes, color light gray RAL 7035.

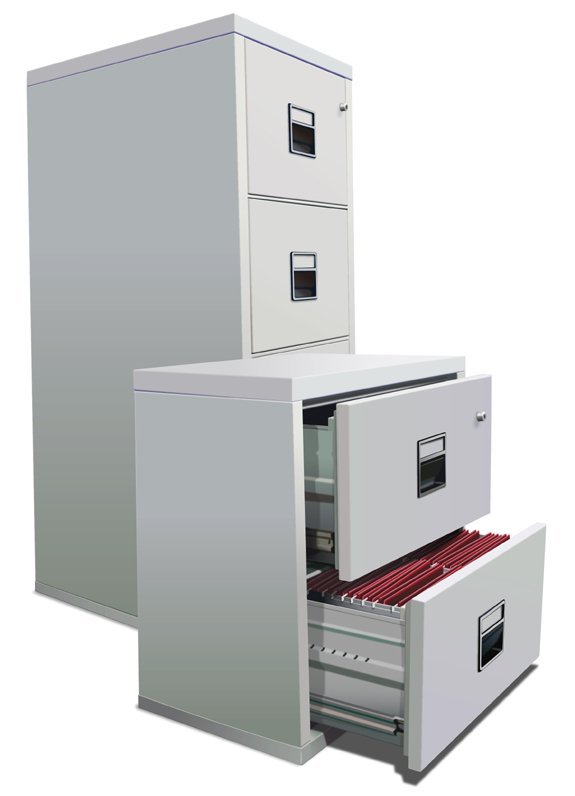

Overview and features of all FireKing fireproof file cabinets - single-row UF and double-row MLT:
| Model | Content (l) | Weight (kg) |
Outer dimensions of file cabinet (mm) |
Drawer internal dimensions (mm) |
||||
| Height | Width | Depth | Height |
Width | Depth | |||
| UF-2 (2-drawer) |
152 |
195 | 759 | 539 | 800 | 299 | 387 | 660 |
| UF-3 (3-socket) | 229 |
300 | 1103 | 539 | 800 | 299 | 387 | 660 |
| UF-4 (4-socket) | 305 |
345 | 1448 | 539 | 800 | 299 | 387 | 660 |
| UF-2-2H (2-drawer) | 152 |
230 | 759 | 539 | 813 | 299 | 387 | 660 |
| UF-3-2H (3-drawer) | 229 |
360 | 1117 | 539 | 813 | 299 | 387 | 660 |
| UF-4-2H (4-drawer) | 305 |
400 | 1448 | 539 | 813 | 299 | 387 | 660 |
| MLT-2 (2-socket) | 185 |
260 | 759 | 952 | 562 | 295 | 810 | 387 |
| MLT-3 (3-socket) | 277 |
390 | 1103 | 952 | 562 | 295 | 810 | 387 |
| MLT-4 (4-drawer) | 370 |
460 | 1448 | 952 | 562 | 295 | 810 | 387 |
Standard equipment:
| Height: | 1103 mm |
|---|---|
| Width: | 539 mm |
| Depth: | 813 mm |
| Mass: | 360 kg |
| Number of sockets: | 3 |
| For format: | A4 |
| Fire resistance tested: | 120 minutes |
| Welded product: | Yes |
| Warranty (years): | 5 |
| Manufacturer: |
|
Code: UF-3
Fireproof filing cabinet Fireking UF-3 (2 models)Price on request
Fireproof filing cabinet Fireking type UF-3. Height 1103 x width 539 x depth 800/813 mm. Fire resistance test 60 minutes, for type UF-3-2H 120 minutes. Color light gray RAL 7035.
Code: UF-4
Fireproof filing cabinet Fireking UF-4 (2 models)Price on request
Fireproof filing cabinet Fireking type UF-4. Height 1448 x width 539 x depth 800/813 mm. Fire resistance test 60 minutes, for type UF-4-2H 120 minutes. Color light gray RAL 7035.
Code: UF-2-2H
Fireproof filing cabinet Fireking UF-2-2HPrice on request
Fireproof filing cabinet Fireking type UF-2-2H. Height 759 x width 539 x depth 813 mm. Fire resistance test 120 minutes, color light gray RAL 7035.
Code: UF-4-2H
Fireproof filing cabinet Fireking UF-4-2HPrice on request
Fireproof filing cabinet Fireking type UF-4-2H. Height 1448 x width 539 x depth 813 mm. Fire resistance test 120 minutes, color light gray RAL 7035.
Code: Ignis 2
IGNIS 2 fire protection file1 215.71 Eur without VAT
(1 471.01 Eur with VAT)
Fireproof file cabinet for documents with two drawers. Fire resistance according to UNE-EN 15659 60 minutes. Height 825 x width 545 x depth 653 mm, color light grey. Key locking.
Code: MLT-2
Fireproof file cabinet Fireking two-row MLT-2Price on request
Fireproof file cabinet Fireking double row type MLT-2. Height 759 x width 952 x depth 562 mm. Fire resistance test 60 minutes, color light gray RAL 7035.
Code: MLT-3
Fireproof file cabinet Fireking double row MLT-3Price on request
Fireproof file cabinet Fireking double row type MLT-3. Height 1103 x width 952 x depth 562 mm. Fire resistance test 60 minutes, color light gray RAL 7035.
Code: MLT-4
Fireproof file cabinet Fireking two-row MLT-4Price on request
Fireproof file cabinet Fireking double row type MLT-4. Height 1448 x width 952 x depth 562 mm. Fire resistance test 60 minutes, color light gray RAL 7035.
Code: UF-2
Fireproof filing cabinet Fireking UF-2 (2 models)Price on request
Fireproof filing cabinet Fireking type UF-2. Height 759 x width 539 x depth 800/813 mm. Fire resistance test 60 minutes, for type UF-2-2H 120 minutes. Color light gray RAL 7035.
Rozměry papíru podle ISO/DIN (v mm):
| Formát | A- | B- | C- | D- | E- |
| 0 | 841 x 1189 | 1000 × 1414 | 917 × 1297 | ||
| 1 | 594 x 841 | 707 × 1000 | 648 × 917 | 545 × 771 | |
| 2 | 420 × 594 | 500 × 707 | 458 × 648 | 385 × 545 | |
| 3 | 297 × 420 | 353 × 500 | 324 × 458 | 272 × 385 | 400 × 560 |
| 4 | 210 × 297 | 250 × 353 | 229 × 324 | 192 × 272 | 280 × 400 |
| 5 | 148 × 210 | 176 × 250 | 162 × 229 | 136 × 192 | 200 × 280 |
| 6 | 105 × 148 | 125 × 176 | 114 × 162 | 96 × 136 | 140 × 200 |
| 7 | 74 × 105 | 88 × 125 | 81 × 114 | 68 × 96 | |
| 8 | 52 × 74 | 62 × 88 | 57 × 81 | ||
| 9 | 37 × 52 | 44 × 62 | 40 × 57 | ||
| 10 | 26 × 37 | 31 × 44 | 28 × 40 |
Rozměry obálek podle ISO/DIN (v mm):
| Formát | Velikost | Formát obsahu |
| DL | 110 × 220 | 1/3 A4 (dvakrát přehnutá A4) |
| C7/C6 | 81 x 162 | 1/3 A5 (dvakrát přehnutá A5) |
| C6 | 114 × 162 | A6 (dvakrát přehnutá A4) |
| C6/C5 | 114 × 229 | 1/3 A4 (dvakrát přehnutá A4) |
| C5 | 162 × 229 | A5 (jednou přehnutá A4) |
| C4 | 229 × 324 | A4 |
| C3 | 324 × 458 | A3 |
| B6 | 125 × 176 | obálka formátu C6 |
| B5 | 176 × 250 | obálka formátu C5 |
| B4 | 250 × 353 | obálka formátu C4 |
| E4 | 280 × 400 | B4 |
Formáty používané v USA, Velké Británii, Kanadě, Mexiku aj.:
| Název | Velikost v palcích (in) | Velikost v mm (mm) | Poměr stran |
| Quarto | 10 × 8 | 254,0 × 203,2 | 1,25 |
| Foolscap | 13 × 8 | 330,2 × 203,2 | 1,63 |
| Letter | 8½ × 11 | 215,9 × 279,4 | 1,29 |
| -- | 8 × 10½ | 203,2 × 266,7 | 1,31 |
| Legal | 8½ × 14 | 215,9 × 355,6 | 1,65 |
| Ledger / Tabloid | 11 × 17 | 279,4 × 431,8 | 1,55 |
| Executive | 7¼ × 10½ | 184,15 × 266,7 | 1,45 |
| Post | 15½ × 19¼ | 393,7 × 488,95 | 1,24 |
| Crown | 15 × 20 | 381,0 × 508,0 | 1,33 |
| Large post | 16½ × 21 | 419,1 × 533,4 | 1,28 |
| Demy | 17½ × 22½ | 444,5 × 571,5 | 1,29 |
| Medium | 18 × 23 | 457,2 × 584,2 | 1,28 |
| Royal | 20 × 25 | 508,0 × 635,0 | 1,25 |
| Elephant | 23 × 28 | 584,2 × 711,2 | 1,22 |
| Double Demy | 23½ × 35 | 596,9 × 889,0 | 1,49 |
| Quad Demy | 35 × 45 | 889,0 × 1143,0 | 1,29 |
| STMT | 5½ x 8½ | 139,7 × 215,9 | 1,55 |
| A | 8½ × 11 | 215,9 × 279,4 | 1,29 |
| B | 11 × 17 | 279,4 × 431,8 | 1,55 |
| C | 17 × 22 | 431,8 × 558,8 | 1,29 |
| D | 22 × 34 | 558,8 × 863,6 | 1,55 |
| E | 34 × 44 | 863,6 × 1117,6 | 1,29 |
