Code: 7000170
Plastic dividing insert VND 700017064.11 Eur without VAT
(77.57 Eur with VAT)
Plastic dividing insert for VND DPO PD sockets.
Code: DPO_01_D

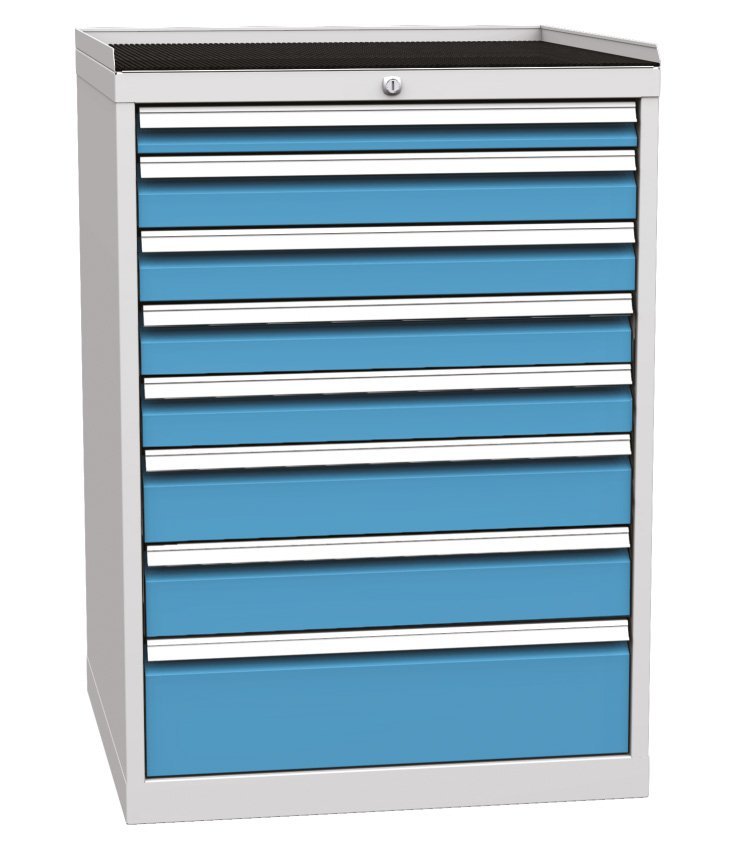

Eight-drawer workshop cabinet, width 720, height 1030, depth 700 mm. Drawer extension 80%, drawer load capacity 80 kg, central full description and parameters
Eight-drawer workshop cabinet, width 720, height 1030, depth 700 mm. Drawer extension 80%, drawer load capacity 80 kg, central lock. 1x socket 60, 4x 90, 2x 120, 1x 180 mm. Body color RAL 7035 light gray.
| Height: | 1030 mm |
|---|---|
| Width: | 720 mm |
| Depth: | 700 mm |
| Mass: | 124.7 kg |
| Number of sockets: | 8 |
| Load capacity of one drawer: | 80 kg |
| Carrying capacity of the hull: | 300 kg |
| Welded product: | Yes |
| Warranty (years): | 2 |
| Manufacturer: |
|
Code: 7000170
Plastic dividing insert VND 700017064.11 Eur without VAT
(77.57 Eur with VAT)
Plastic dividing insert for VND DPO PD sockets.
Code: VND_DPO_11A
Internal division of VND DPO 11A sockets25.86 Eur without VAT
(31.29 Eur with VAT)
Internal division of DPO VND 11A sockets. Installation is possible in sockets where the height of the socket front is 60 - 120 mm.
Code: VND_DPO_11B
Internal division of VND DPO 11B sockets39.05 Eur without VAT
(47.25 Eur with VAT)
Internal division of DPO VND 11B sockets. Installation is possible in sockets where the height of the socket front is 60 - 120 mm.
Code: VND_DPO_11C
Internal division of VND DPO 11C sockets47.58 Eur without VAT
(57.57 Eur with VAT)
Internal division of DPO VND 11C sockets. Installation is possible in sockets where the height of the socket front is 60 - 120 mm.
Code: VND_DPO_12A
Internal division of VND DPO 12A sockets36.27 Eur without VAT
(43.89 Eur with VAT)
Internal division of DPO VND 12A sockets. Installation is possible in drawers where the height of the drawer front is 150 - 240 mm.
Code: VND_DPO_12B
Internal division of VND DPO 12B sockets55.82 Eur without VAT
(67.54 Eur with VAT)
Internal division of DPO VND 12B sockets. Installation is possible in drawers where the height of the drawer front is 150 - 240 mm.
Code: VND_DPO_12C
Internal division of VND DPO 12C sockets69.06 Eur without VAT
(83.56 Eur with VAT)
Internal division of DPO VND 12C sockets. Installation is possible in drawers where the height of the drawer front is 150 - 240 mm.
Code: DPO_01_A
Drawer workshop cabinet DPO 01A832.84 Eur without VAT
(1 007.74 Eur with VAT)
Five-drawer workshop cabinet, width 720, height 1030, depth 700 mm. Drawer extension 80%, drawer load capacity 80 kg, central lock. 2x socket 120, 2x 180, 1x 240 mm. Body color RAL 7035 light gray.
Code: DPO_01_B
Drawer workshop cabinet DPO 01B905.32 Eur without VAT
(1 095.44 Eur with VAT)
Six-drawer workshop cabinet, width 720, height 1030, depth 700 mm. Drawer extension 80%, drawer load capacity 80 kg, central lock. 1x drawer 60, 2x 90, 2x 180, 1x 240 mm. Body color RAL 7035 light gray. In stock in light gray body, blue drawers.
Code: DPO_01_C
Drawer workshop cabinet DPO 01C984.47 Eur without VAT
(1 191.21 Eur with VAT)
Seven-drawer workshop cabinet, width 720, height 1030, depth 700 mm. Drawer extension 80%, drawer load capacity 80 kg, central lock. 1x socket 60, 2x 90, 2x 120, 2x 180 mm. Body color RAL 7035 light gray.
Code: DPO_03_A
Drawer workshop cabinet DPO 03A565.04 Eur without VAT
(683.70 Eur with VAT)
Three-drawer workshop cabinet, width 720, height 840, depth 700 mm. Drawer extension 80%, drawer load capacity 80 kg, central lock. 1x socket 180, 2x 240 mm. Body color RAL 7035 light gray.
Code: DPO_03_B
Drawer workshop cabinet DPO 03B645.26 Eur without VAT
(780.76 Eur with VAT)
Four-drawer workshop cabinet, width 720, height 840, depth 700 mm. Drawer extension 80%, drawer load capacity 80 kg, central lock. 1x drawer 90, 1x 150, 1x 180, 1x 240 mm. Body color RAL 7035 light gray.
Code: DPO_03_C
Drawer workshop cabinet DPO 03C711.49 Eur without VAT
(860.90 Eur with VAT)
Five-drawer workshop cabinet, width 720, height 840, depth 700 mm. Drawer extension 80%, drawer load capacity 80 kg, central lock. 2x socket 90, 2x 120, 1x 240 mm. Body color RAL 7035 light gray.
Code: DPO_05_A
Drawer workshop cabinet DPO 05A1 200.77 Eur without VAT
(1 452.93 Eur with VAT)
Eight-drawer workshop cabinet, width 720, height 1350, depth 700 mm. Drawer extension 80%, drawer load capacity 80 kg, central lock. 1x drawer 60, 2x 90, 1x 120, 1x 150. 1x 180, 1x 210, 1x 240 mm. Body color RAL 7035 light gray.
Code: DPO_05_B
Drawer workshop cabinet DPO 05B1 276.52 Eur without VAT
(1 544.59 Eur with VAT)
Nine-drawer workshop cabinet, width 720, height 1350, depth 700 mm. Drawer extension 80%, drawer load capacity 80 kg, central lock. 2x drawer 60, 2x 90, 2x 120, 2x 180, 1x 240 mm. Body color RAL 7035 light gray.
Code: DPO_05_C
Drawer workshop cabinet DPO 05C1 338.61 Eur without VAT
(1 619.72 Eur with VAT)
Ten-drawer workshop cabinet, width 720, height 1350, depth 700 mm. Drawer extension 80%, drawer load capacity 80 kg, central lock. 6x socket 90, 2x 120, 2x 180 mm. Body color RAL 7035 light gray.
Code: DPO_05_D
Drawer workshop cabinet DPO 05D1 430.04 Eur without VAT
(1 730.35 Eur with VAT)
Eleven-drawer workshop cabinet, width 720, height 1350, depth 700 mm. Drawer extension 80%, drawer load capacity 80 kg, central lock. 2x socket 60, 4x 90, 3x 120, 2x 150 mm. Body color RAL 7035 light gray.
Code: DPO_01_E
Drawer workshop cabinet DPO 01E984.47 Eur without VAT
(1 191.21 Eur with VAT)
Seven-drawer workshop cabinet, width 720, height 1030, depth 700 mm. Drawer extension 80%, drawer load capacity 80 kg, central lock. 1x drawer 60, 2x 90, 1x 120, 2x 150, 1x 180 mm. Body color RAL 7035 light gray.
Code: DPO_01_F
Drawer workshop cabinet DPO 01F905.32 Eur without VAT
(1 095.44 Eur with VAT)
Six-drawer workshop cabinet, width 720, height 1030, depth 700 mm. Drawer extension 80%, drawer load capacity 80 kg, central lock. 1x drawer 60, 1x 90, 1x 120, 1x 150, 1x 180, 1x 240 mm. Body color RAL 7035 light gray.
Code: DPO_03_D
Drawer workshop cabinet DPO 03D816.39 Eur without VAT
(987.83 Eur with VAT)
Six-drawer workshop cabinet, width 720, height 840, depth 700 mm. Drawer extension 80%, drawer load capacity 80 kg, central lock. 1x socket 60, 2x 90, 2x 120, 1x 180 mm. Body color RAL 7035 light gray.
Code: DPO_03_E
Drawer workshop cabinet DPO 03E739.61 Eur without VAT
(894.93 Eur with VAT)
Five-drawer workshop cabinet, width 720, height 840, depth 700 mm. Drawer extension 80%, drawer load capacity 80 kg, central lock. 1x drawer 60, 1x 90, 1x 120, 1x 180, 1x 210 mm. Body color RAL 7035 light gray.
Code: DPO_03_F
Drawer workshop cabinet DPO 03F739.61 Eur without VAT
(894.93 Eur with VAT)
Five-drawer workshop cabinet, width 720, height 840, depth 700 mm. Drawer extension 80%, drawer load capacity 80 kg, central lock. 1x drawer 60, 1x 90, 1x 120, 1x 150, 1x 240 mm. Body color RAL 7035 light gray.
Code: DPO_05_E
Drawer workshop cabinet DPO 05E1 276.52 Eur without VAT
(1 544.59 Eur with VAT)
Nine-drawer workshop cabinet, width 720, height 1350, depth 700 mm. Drawer extension 80%, drawer load capacity 80 kg, central lock. 1x drawer 60, 2x 90, 2x 120, 2x 150, 2x 180 mm. Body color RAL 7035 light gray.
Code: DPO_05_F
Drawer workshop cabinet DPO 05F1 200.77 Eur without VAT
(1 452.93 Eur with VAT)
Eight-drawer workshop cabinet, width 720, height 1350, depth 700 mm. Drawer extension 80%, drawer load capacity 80 kg, central lock. 1x drawer 60, 2x 90, 1x 120, 2x 150. 2x 240 mm. Body color RAL 7035 light gray.
KOVOS worktops are made of wood. Wood is a natural material, and therefore due to changes in temperature or humidity, the boards may slightly curve, even though special care is taken in their surface treatment. The stability of the shape of the worktop is guaranteed at a relative air humidity of 50 - 60%. Wooden table tops should definitely not come into direct contact with water and are intended exclusively for interior use. Also, the color of the boards may differ slightly from each other, depending on the input lumber used.
  |
Highly durable worktop layered and glued from beech veneer, sanded and treated with a solution of linseed oil with additives, the upper peripheral edges are bevelled. We offer the board in a thickness of 40 mm. |
|||
 |
Laminated chipboard LTD, we offer the board in a standard thickness of 25 mm with an ABS edge of 2 mm, shade RAL 7035 light gray. |
|||
 |
Board with a raised edge on three sides, the edges are made of 25 mm thick beech joint, their height is 120 mm. The board is sanded and treated with a solution of linseed oil with additives, the upper peripheral edges are bevelled. We offer raised edges for beech joint thicknesses of 25, 40 and 50 mm. |
|||
 |
The front edge of the plate is plated with galvanized or stainless steel sheet 1 mm thick. The sheeting is U-shaped, so the plate is protected from above and below. The upper part of the plate is lowered in the place of plating so that the plating continues smoothly on the plate. We offer plating for beech joints of thickness 25 and 40 mm. |
|||
  |
There is a choice of smooth rubber with a thickness of 4 mm, rubber with a wheel pattern with a thickness of 4 mm or grooved rubber with a fine groove of 6 mm. We offer rubbers for all types of boards.
|
|||
 |
PP boards with a thickness of 15 mm are attached to a beech joint with a thickness of 25 mm, thus creating a combined board, where the beech joint ensures good physical properties and the PP board with good chemical properties. We offer PP boards in white and black. Main advantages of PP board: - light, stable, elastic, sterile |
|||
|
PE boards with a thickness of 15 mm are attached to a beech joint with a thickness of 25 mm, thereby creating a combined board, where the beech joint ensures good physical properties and the PE board with good chemical properties. We offer PP boards in white and black. The main advantages of PE board: - higher chemical resistance |
light gray RAL 7035 (A)
yellow RAL 1023 (B)
red RAL 3000 (B)
blue RAL 5012 (B)
green RAL 6024 (B)
dark gray RAL 7031 (B)
gray / front surfaces blue
RAL 1001
RAL 2008
RAL 3003
RAL 5003
RAL 5005
RAL 5010
RAL 5018
green RAL 6001
RAL 7032
RAL 8014
RAL 9003
RAL 1003
RAL 1007
RAL 1013
RAL 1015
RAL 1016
RAL 1017
RAL 1018
RAL 1021
RAL 1028
RAL 1033
RAL 2000
RAL 2002
RAL 2004
RAL 2009
RAL 2011
RAL 2012
RAL 3001
RAL 3002
RAL 3004
RAL 3005
RAL 3011
RAL 3020
RAL 4003
RAL 4006
RAL 4008
RAL 5002
RAL 5007
RAL 5008
RAL 5009
RAL 5011
RAL 5013
RAL 5014
RAL 5015
RAL 5017
RAL 5023
RAL 5024
RAL 6005
RAL 6017
RAL 6018
RAL 6019
RAL 6029
RAL 6033
RAL 6034
RAL 7001
RAL 7005
RAL 7012
RAL 7015
RAL 7016
RAL 7034
RAL 7036
RAL 7037
RAL 7038
RAL 7040
RAL 7043
RAL 7044
RAL 8004
RAL 8011
RAL 8016
RAL 8017
RAL 8019
RAL 9001
RAL 9002
RAL 9004
RAL 9005
RAL 9010
RAL 9011
RAL 9018
Surface treatment is carried out by the technology of electrostatic application of powder colors on the surface of products pre-treated with Fe phosphate. The colors are fired at a temperature of min. 180 °C approx. 20 min. Using automatic paint application and manual spraying, a uniform color layer is achieved, the thickness of which is on average 50-80 μm.
| Surcharges in % according to the ordered quantity in CZK without VAT | |||||||
| Body / front face combination | from CZK 0 | from 10,000 | from 20,000 | from 50,000 | from 100,000 | from 250,000 | from 500,000 |
| AA + AB | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| AC | 50 | 35 | 16 | 12 | 3.5 | 2.5 | 1.5 |
| AD | 80 | 45 | 20 | 15 | 6 | 4 | 3 |
| BA + BB | 10 | 8 | 6 | 3.5 | 1.5 | 1 | 0 |
| BC | 50 | 35 | 16 | 12 | 3.5 | 2.5 | 1.5 |
| BD | 80 | 45 | 20 | 15 | 6 | 4 | 3 |
| CA + CB | 50 | 35 | 16 | 12 | 3.5 | 2.5 | 1.5 |
| CC | 80 | 45 | 20 | 15 | 6 | 4 | 3 |
| CD | 100 | 50 | 25 | 20 | 8 | 6 | 5 |
| DA + DB | 80 | 45 |
20 | 15 |
6 |
4 |
3 |
| DC + DD |
100 | 50 | 25 | 20 | 8 | 6 | 5 |
| Category E | individual surcharge | ||||||
