Code: MTR_01_A
Perforated panel MTR 01A97.50 Eur without VAT
(117.98 Eur with VAT)
Perforated panel for hanging tool holders to assembly tables and 1500 mm wide boards. Height 975, width 1310, depth 130 mm.

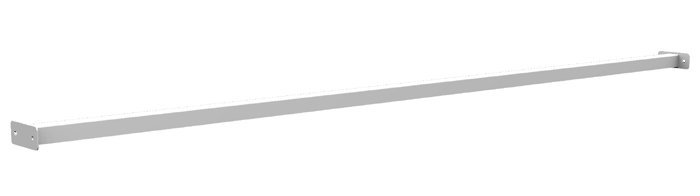

Code: MMT_02_A
Coupling for strengthening the MTS 02A table structure. full description and parameters
Coupling for strengthening the MTS 02A table structure.
| Height: | 38 mm |
|---|---|
| Width: | 1720 mm |
| Depth: | 90 mm |
| Mass: | 2.5 kg |
| Warranty (years): | 2 |
| Manufacturer: |
|
Code: MTR_01_A
Perforated panel MTR 01A97.50 Eur without VAT
(117.98 Eur with VAT)
Perforated panel for hanging tool holders to assembly tables and 1500 mm wide boards. Height 975, width 1310, depth 130 mm.
Code: MTR_02_A
Perforated panel MTR 02A19.50 Eur without VAT
(23.60 Eur with VAT)
Additional perforated panel for MTR 01A. Height 190 x width 1268 x depth 30 mm.
Code: MTR_01_B
Perforated panel MTR 01B156.25 Eur without VAT
(189.06 Eur with VAT)
Perforated panel for hanging tool holders to assembly tables and boards with a width of 2000 mm. Height 975, width 1810, depth 130 mm.
Code: MTR_02_B
Perforated panel MTR 02B16.02 Eur without VAT
(19.38 Eur with VAT)
Additional perforated panel for MTR 01B. Height 190 x width 884 x depth 30 mm.
Code: MTO_02_A
Ramp MTO 02A76.79 Eur without VAT
(92.92 Eur with VAT)
Ramp intended for installing a lighting fixture or hanging tools. Height 370 x width 1810 x depth 413 mm.
Code: MTP_00_A
Side shelf MTP 00A60.29 Eur without VAT
(72.95 Eur with VAT)
Side positionable folding shelf for MTS tables.
Code: MTP_00_B
Q-system lateral MTP 00B53.74 Eur without VAT
(65.03 Eur with VAT)
Laterally positionable Q-system for MTS tables.
Code: MTP_02_A
Folding shelf MTP 02A40.09 Eur without VAT
(48.51 Eur with VAT)
Folding shelf for MTS table in length 2000 mm. It is mounted on the perforated panel MTR 02A. Shelf size 140 x 840 x 400 mm.
Code: MMT_01_A
Connector MMT 01A26.94 Eur without VAT
(32.60 Eur with VAT)
Coupling for strengthening the MTS 01A table structure.
Code: MTO_01_A
Ramp MTO 01A57.94 Eur without VAT
(70.11 Eur with VAT)
Ramp intended for installing a lighting fixture or hanging tools. Height 370 x width 1310 x depth 413 mm.
Code: MTP_01_A
Folding shelf MTP 01A59.17 Eur without VAT
(71.60 Eur with VAT)
Folding shelf for MTS table in length 1500 mm. It is mounted on the perforated panel MTR 01A. Shelf size 140 x 1229 x 400 mm.
Code: MON_01_A
Footrest MON 01A101.47 Eur without VAT
(122.78 Eur with VAT)
Height adjustable and foldable footrest for MTS tables.
KOVOS worktops are made of wood. Wood is a natural material, and therefore due to changes in temperature or humidity, the boards may slightly curve, even though special care is taken in their surface treatment. The stability of the shape of the worktop is guaranteed at a relative air humidity of 50 - 60%. Wooden table tops should definitely not come into direct contact with water and are intended exclusively for interior use. Also, the color of the boards may differ slightly from each other, depending on the input lumber used.
  |
Highly durable worktop layered and glued from beech veneer, sanded and treated with a solution of linseed oil with additives, the upper peripheral edges are bevelled. We offer the board in a thickness of 40 mm. |
|||
 |
Laminated chipboard LTD, we offer the board in a standard thickness of 25 mm with an ABS edge of 2 mm, shade RAL 7035 light gray. |
|||
 |
Board with a raised edge on three sides, the edges are made of 25 mm thick beech joint, their height is 120 mm. The board is sanded and treated with a solution of linseed oil with additives, the upper peripheral edges are bevelled. We offer raised edges for beech joint thicknesses of 25, 40 and 50 mm. |
|||
 |
The front edge of the plate is plated with galvanized or stainless steel sheet 1 mm thick. The sheeting is U-shaped, so the plate is protected from above and below. The upper part of the plate is lowered in the place of plating so that the plating continues smoothly on the plate. We offer plating for beech joints of thickness 25 and 40 mm. |
|||
  |
There is a choice of smooth rubber with a thickness of 4 mm, rubber with a wheel pattern with a thickness of 4 mm or grooved rubber with a fine groove of 6 mm. We offer rubbers for all types of boards.
|
|||
 |
PP boards with a thickness of 15 mm are attached to a beech joint with a thickness of 25 mm, thus creating a combined board, where the beech joint ensures good physical properties and the PP board with good chemical properties. We offer PP boards in white and black. Main advantages of PP board: - light, stable, elastic, sterile |
|||
|
PE boards with a thickness of 15 mm are attached to a beech joint with a thickness of 25 mm, thereby creating a combined board, where the beech joint ensures good physical properties and the PE board with good chemical properties. We offer PP boards in white and black. The main advantages of PE board: - higher chemical resistance |
light gray RAL 7035 (A)
yellow RAL 1023 (B)
red RAL 3000 (B)
blue RAL 5012 (B)
green RAL 6024 (B)
dark gray RAL 7031 (B)
gray / front surfaces blue
RAL 1001
RAL 2008
RAL 3003
RAL 5003
RAL 5005
RAL 5010
RAL 5018
green RAL 6001
RAL 7032
RAL 8014
RAL 9003
RAL 1003
RAL 1007
RAL 1013
RAL 1015
RAL 1016
RAL 1017
RAL 1018
RAL 1021
RAL 1028
RAL 1033
RAL 2000
RAL 2002
RAL 2004
RAL 2009
RAL 2011
RAL 2012
RAL 3001
RAL 3002
RAL 3004
RAL 3005
RAL 3011
RAL 3020
RAL 4003
RAL 4006
RAL 4008
RAL 5002
RAL 5007
RAL 5008
RAL 5009
RAL 5011
RAL 5013
RAL 5014
RAL 5015
RAL 5017
RAL 5023
RAL 5024
RAL 6005
RAL 6017
RAL 6018
RAL 6019
RAL 6029
RAL 6033
RAL 6034
RAL 7001
RAL 7005
RAL 7012
RAL 7015
RAL 7016
RAL 7034
RAL 7036
RAL 7037
RAL 7038
RAL 7040
RAL 7043
RAL 7044
RAL 8004
RAL 8011
RAL 8016
RAL 8017
RAL 8019
RAL 9001
RAL 9002
RAL 9004
RAL 9005
RAL 9010
RAL 9011
RAL 9018
Surface treatment is carried out by the technology of electrostatic application of powder colors on the surface of products pre-treated with Fe phosphate. The colors are fired at a temperature of min. 180 °C approx. 20 min. Using automatic paint application and manual spraying, a uniform color layer is achieved, the thickness of which is on average 50-80 μm.
| Surcharges in % according to the ordered quantity in CZK without VAT | |||||||
| Body / front face combination | from CZK 0 | from 10,000 | from 20,000 | from 50,000 | from 100,000 | from 250,000 | from 500,000 |
| AA + AB | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| AC | 50 | 35 | 16 | 12 | 3.5 | 2.5 | 1.5 |
| AD | 80 | 45 | 20 | 15 | 6 | 4 | 3 |
| BA + BB | 10 | 8 | 6 | 3.5 | 1.5 | 1 | 0 |
| BC | 50 | 35 | 16 | 12 | 3.5 | 2.5 | 1.5 |
| BD | 80 | 45 | 20 | 15 | 6 | 4 | 3 |
| CA + CB | 50 | 35 | 16 | 12 | 3.5 | 2.5 | 1.5 |
| CC | 80 | 45 | 20 | 15 | 6 | 4 | 3 |
| CD | 100 | 50 | 25 | 20 | 8 | 6 | 5 |
| DA + DB | 80 | 45 |
20 | 15 |
6 |
4 |
3 |
| DC + DD |
100 | 50 | 25 | 20 | 8 | 6 | 5 |
| Category E | individual surcharge | ||||||
