Tipper with outlet 4702A

Code: 4702A

Tippable transporter made in Germany with outlet, the tub is made of 2 mm thick steel sheet, leakproof welded, the upper edge is full description and parameters

Show all models

Made to order, delivery time 4 - 6 weeks. It may vary depending on the manufacturer's capacity.

1 150.67 Eur 1 392.31 Eur with VAT

Quantity

Description and technical parameters
All models
You can buy more
Similar products
Information / documents

Description and technical parameters

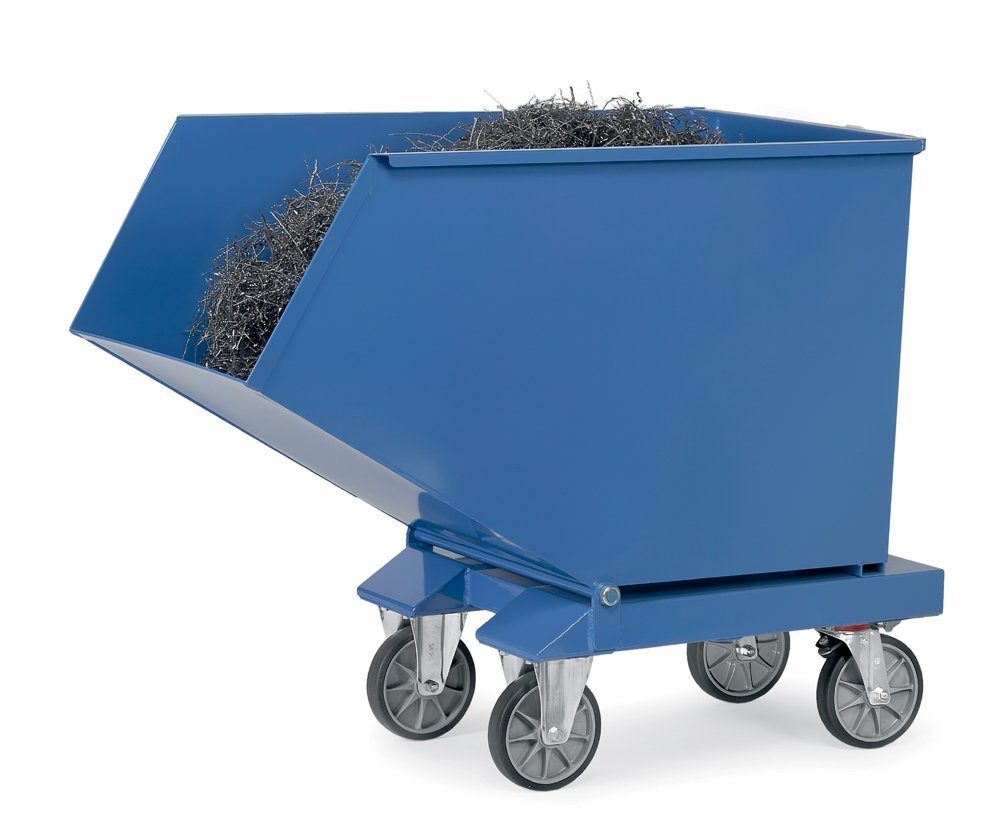

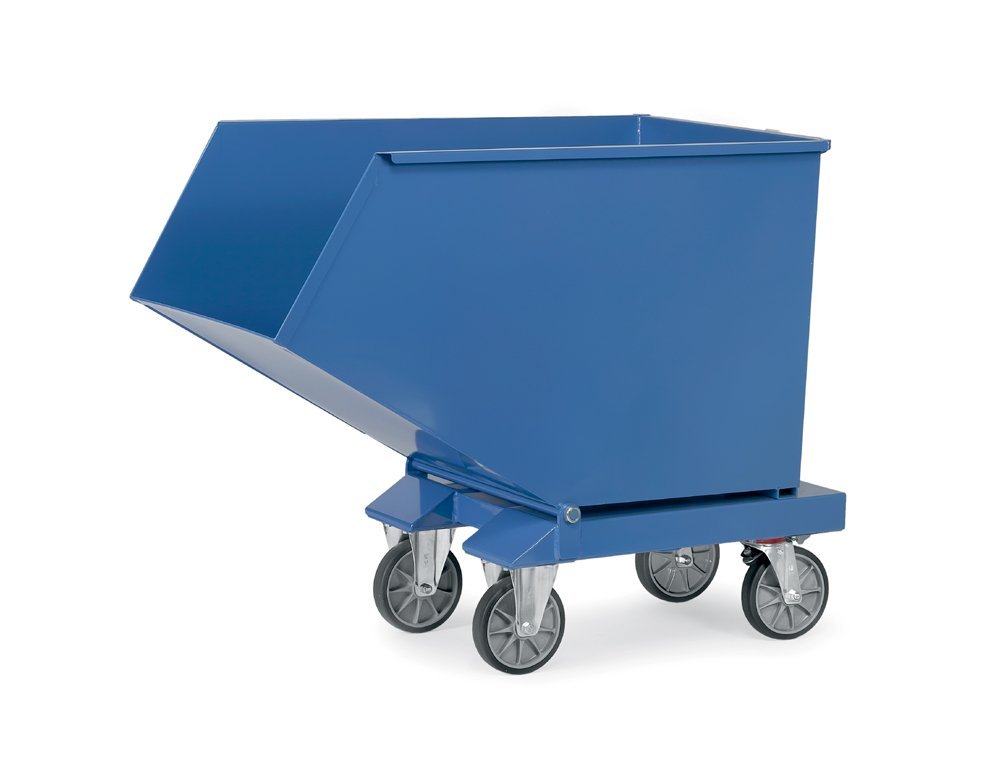

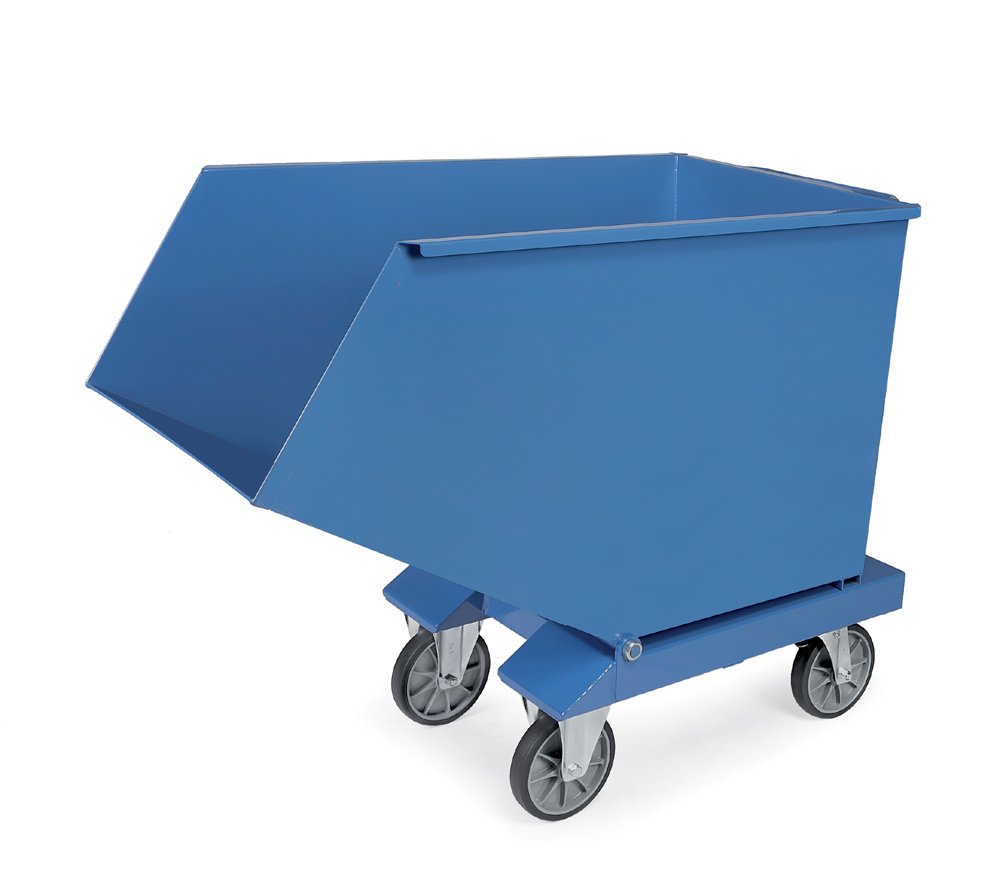

Tipper with outlet 4702A

Tippable transporter made in Germany with outlet, the tub is made of 2 mm thick steel sheet, leakproof welded, the upper edge is reinforced for greater durability. The chassis is made of 3 mm thick steel sheet. 4 special Fetra TPE pneumatic wheels, of which 2 swivel with brake, 2 fixed. Type number 4704 has elastic wheels.

German-made tipping transporter with outlet
the tub is made of 2 mm thick steel sheet, sealed welded, the upper edge is reinforced for greater resistance
color blue RAL 5007

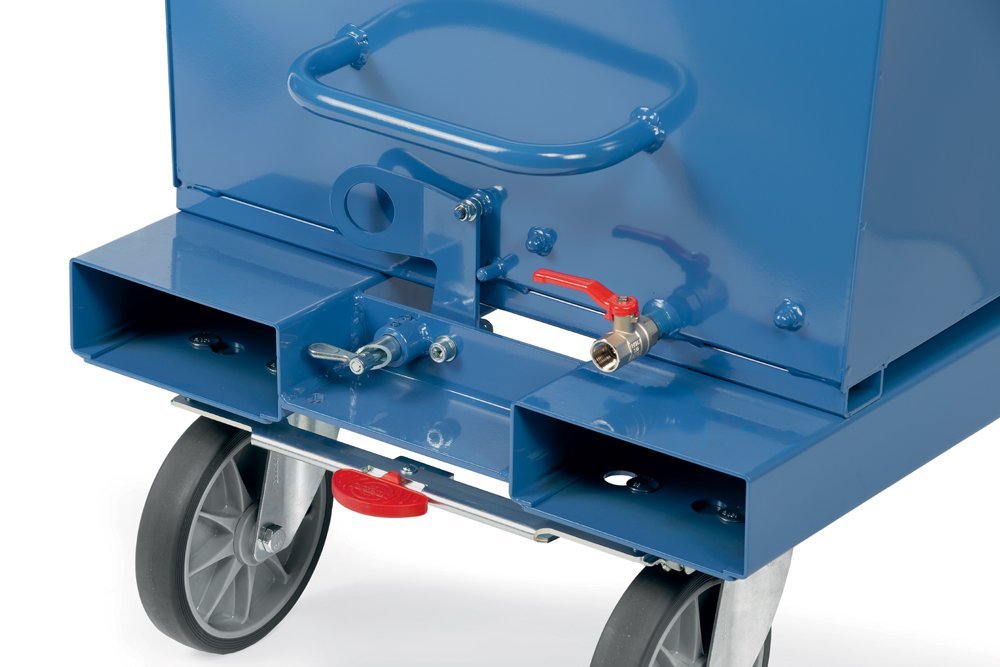

the chassis is made of 3 mm thick sheet steel with built-in forklift pockets
can be attached to a forklift with a chain for safe tipping
4 special Fetra TPE pneumatic wheels, of which 2 swivel with brake, 2 fixed
type number 4704 has elastic wheels
Fetra central brake system - Totalstop

Special Fetra TPE wheels

pneumatic wheels made of thermoplastic elastomer
maintenance-free ball bearings
dark gray hoops - won't stain the floor
protective thread around the wheel axis
silent operation
very low initial, rolling and turning resistance
TPE wheels minimize the required force for transport - even heavy loads can be moved comfortably, safely and with low noise
are produced in accordance with EU regulation 1272/2013 PAH (polycyclic aromatic hydrocarbons)
Fetra's unique design (European design right Ⓓ EU 00134689,4-001/00134689,4-003)

Fetra central braking system - Totalstop

Innovative, comfortable, ergonomic and safe.

this braking system developed by Fetra can be easily locked or released with just one foot
the movement of both swivel wheels is safely secured
due to its position, the brake pedal is visible and the trolley can be secured in any position
Patent DE 201220011982

Forklift dimensions:

Code	Liter Contents	A (mm)	B (mm)	C (mm)	D (mm)
4701A	250	194	203	603	70
4702A	450	194	203	603	70
4703A	600	194	327	727	70
4704A	800	194	578	978	70

Carrying capacity:	500 kg
Mass:	75.5 kg
Liters content:	450
The height of the tipping edge:	721 mm
Warranty (years):	10
Manufacturer:

All models

Code	4701A	Currently browsing 4702A	4703A	4704A
Carrying capacity	500 kg	500 kg	500 kg	800 kg
Mass	62 kg	75.5 kg	96 kg	114 kg
Liters content	250	450	600	800
The height of the tipping edge	766 mm	721 mm	828 mm	721 mm
In stock	No	No	No	No
Price without VAT	1 014.01 Eur	1 150.67 Eur	1 271.33 Eur	1 595.13 Eur
	Into the cart	Into the cart	Into the cart	Into the cart
