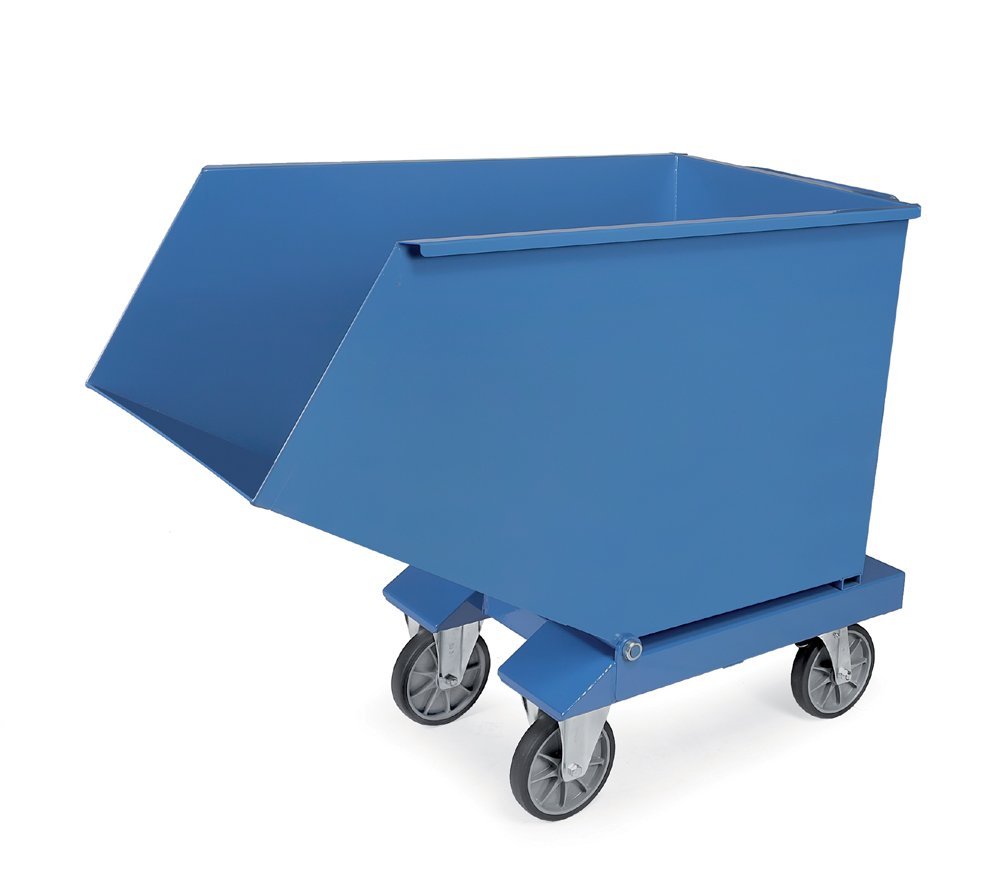

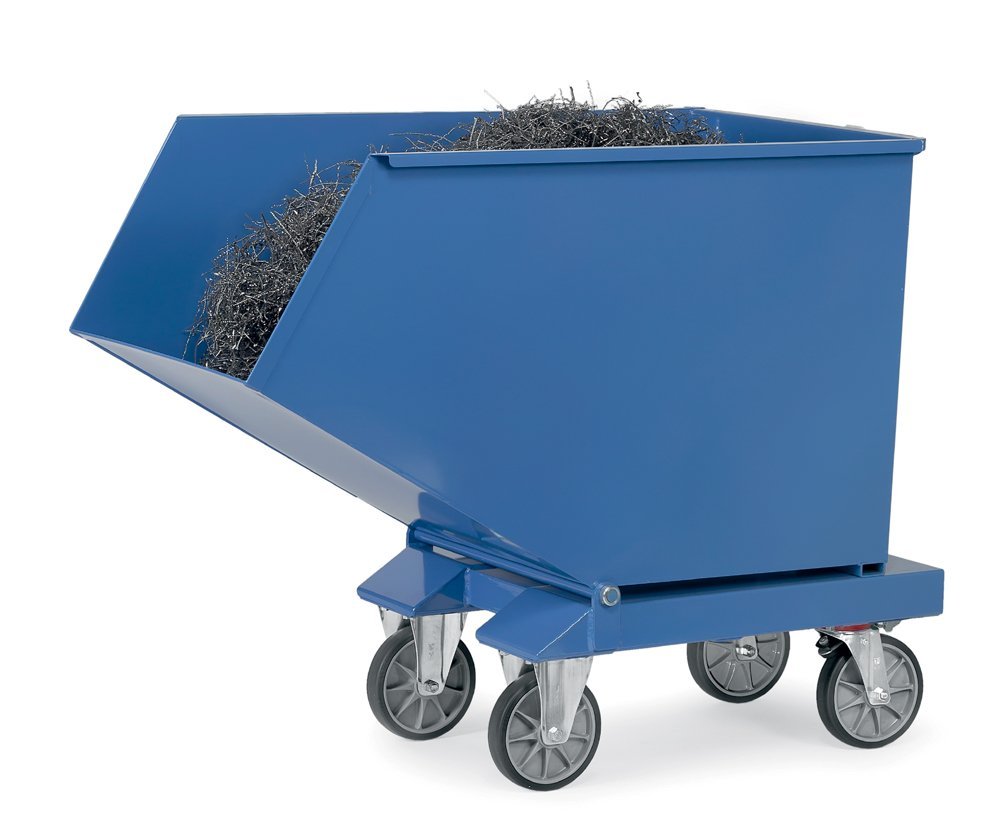

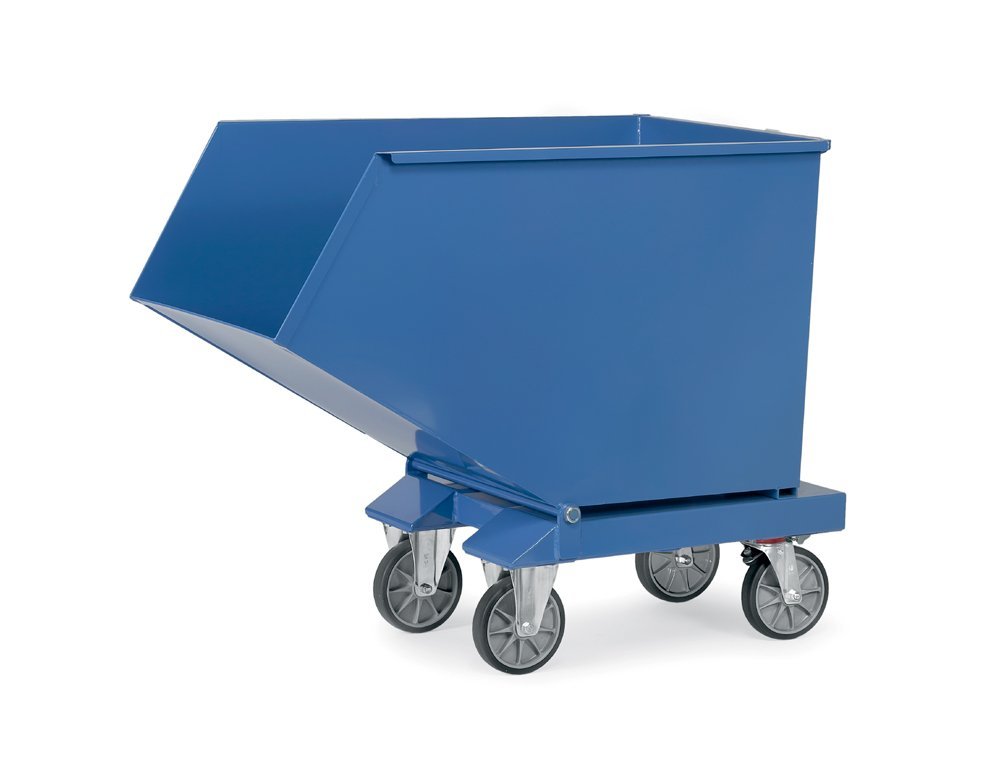

Tipper 4703
Tipper 4703 - 1
Tipper 4703 - 2
Tipper 4703 - 3

Tipper 4703

Code: 4703

Tippable transporter made in Germany, the tub is made of 2 mm thick steel sheet, leakproof welded, the upper edge is reinforced full description and parameters

Show all models

Made to order, delivery time 4 - 6 weeks. It may vary depending on the manufacturer's capacity.

1 225.77 Eur 1 483.18 Eur with VAT

Quantity

Description and technical parameters

Tipper 4703

Tippable transporter made in Germany, the tub is made of 2 mm thick steel sheet, leakproof welded, the upper edge is reinforced for greater resistance. The chassis is made of 3 mm thick steel sheet. 4 special Fetra TPE pneumatic wheels, of which 2 swivel with brake, 2 fixed. Type number 4704 has elastic wheels.

  • Tippable transporter made in Germany
  • the tub is made of 2 mm thick steel sheet, sealed welded, the upper edge is reinforced for greater resistance
  • color blue RAL 5007
  • the chassis is made of 3 mm thick sheet steel with built-in forklift pockets
  • can be attached to a forklift with a chain for safe tipping
  • 4 special Fetra TPE pneumatic wheels, of which 2 swivel with brake, 2 fixed
  • Fetra central brake system - Totalstop

Special Fetra TPE wheels

  • pneumatic wheels made of thermoplastic elastomer
  • maintenance-free ball bearings
  • dark gray hoops - won't stain the floor
  • protective thread around the wheel axis
  • silent operation
  • very low initial, rolling and turning resistance
  • TPE wheels minimize the required force for transport - even heavy loads can be moved comfortably, safely and with low noise
  • are produced in accordance with EU regulation 1272/2013 PAH (polycyclic aromatic hydrocarbons)
  • Fetra's unique design (European design right Ⓓ EU 00134689,4-001/00134689,4-003)

Fetra central braking system - Totalstop

Innovative, comfortable, ergonomic and safe.

  • this braking system developed by Fetra can be easily locked or released with just one foot
  • the movement of both swivel wheels is safely secured
  • due to its position, the brake pedal is visible and the trolley can be secured in any position
  • Patent DE 201220011982

Forklift dimensions:

Code Liter Contents A (mm) B (mm) C (mm) D (mm)
4701 250 194 203 603 70
4702 450 194 203 603 70
4703 600 194 327 727 70
4704 800 194 578 978 70
Carrying capacity: 500 kg
Mass: 89.5 kg
Liters content: 600
The height of the tipping edge: 828 mm
Warranty (years): 10
Manufacturer:

All models

Code 4701 4702 Currently browsing 4703 4704
Carrying capacity 500 kg 500 kg 500 kg 800 kg
Mass 62 kg 75.5 kg 89.5 kg 114 kg
Liters content 250 450 600 800
The height of the tipping edge 766 mm 721 mm 828 mm 721 mm
In stock No No No No
Price without VAT 945.65 Eur 1 105.12 Eur 1 225.77 Eur 1 549.58 Eur
Into the cart
Into the cart
Into the cart
Into the cart
