Tailor-made tubular system workshop trolley with container 22082105

Tailor-made tubular system workshop trolley with container 22082105 - 1

Tailor-made tubular system workshop trolley with container 22082105 - 2

Tailor-made tubular system workshop trolley with container 22082105

Code: 22082105

Workshop trolley made from a tubular modular system. This trolley is equipped with an 18 mm thick laminated chipboard that full description and parameters

Select the color of the structure:

Made to order, delivery time 2 - 4 weeks.

693.47 Eur 839.10 Eur with VAT

Quantity

Description and technical parameters

Description and technical parameters

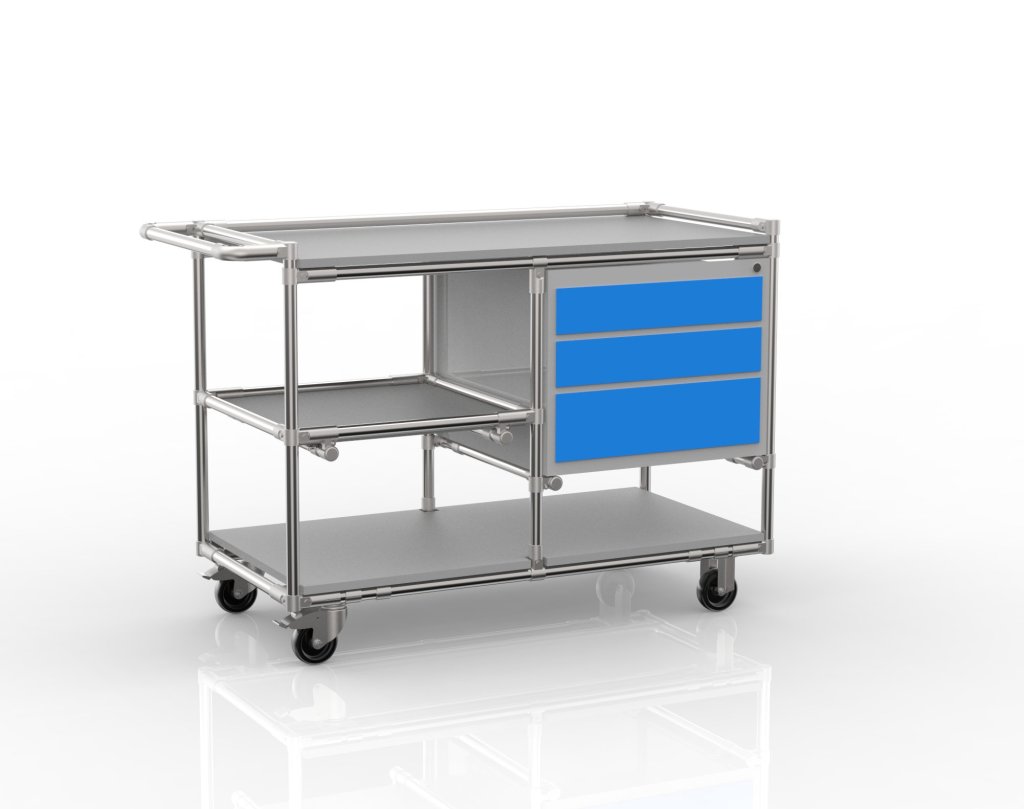

Tailor-made tubular system workshop trolley with container 22082105

Workshop trolley made from a tubular modular system. This trolley is equipped with an 18 mm thick laminated chipboard that provides a solid and stable work surface. The cart includes four wheels with a diameter of 100 mm and a workshop three-drawer container XB35-3TG for practical storage of tools. Total load capacity 250 kg, floor load capacity 100 kg.

tailored implementation
the color of the trolley can be selected according to the available tubes on the website
DTDL plate thickness 18 mm
three drawer container XB35-3TG
total load capacity 250 kg*
floor load capacity 100 kg*
2x swivel wheel with brake Ø100m
2x swivel wheel fixed Ø100m
ESD variant available

Customized application, all dimensions can be adjusted according to customer needs. The tubes are available in several colors and in ESD or stainless steel versions.

*at uniform load

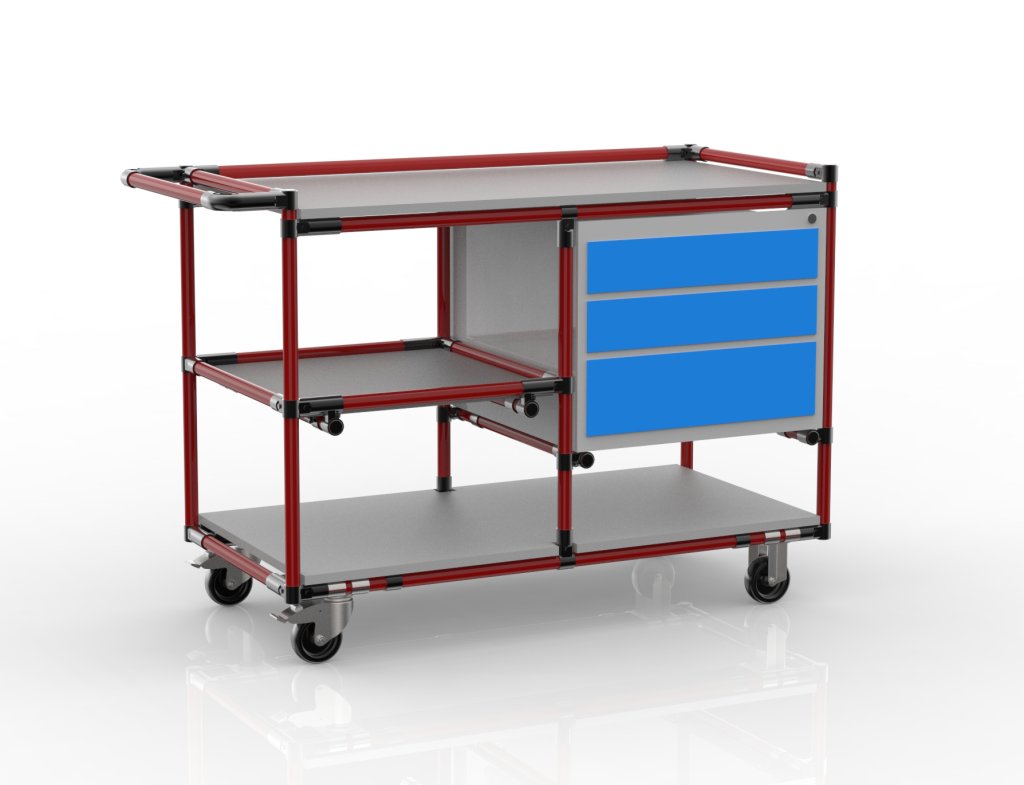

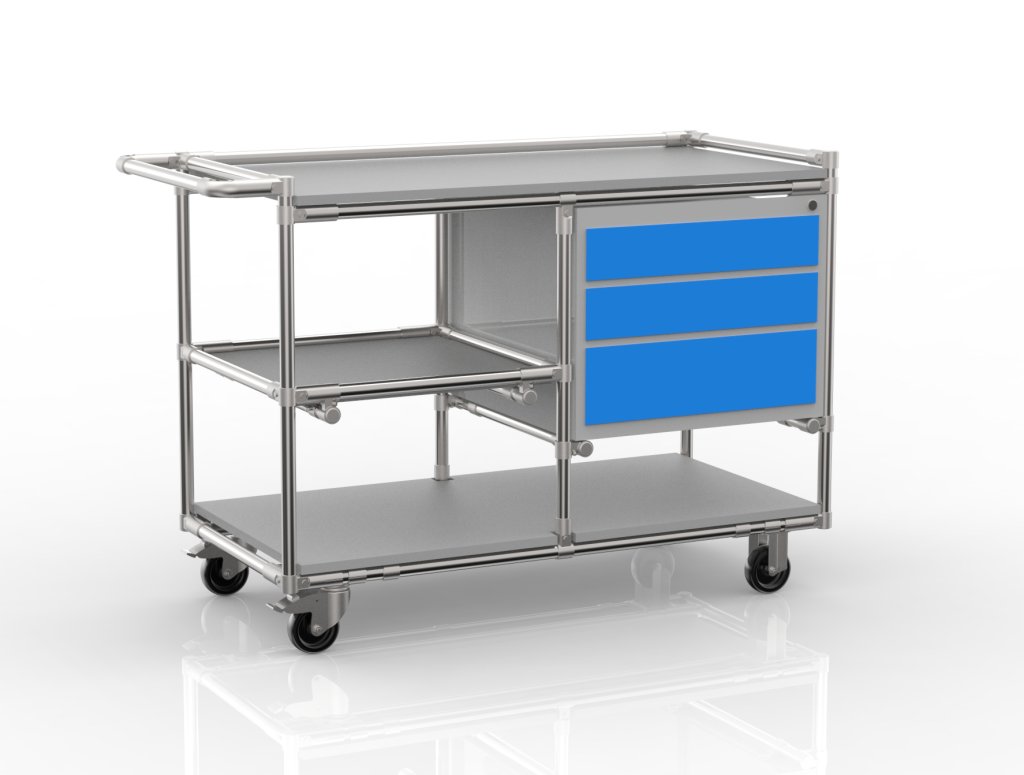

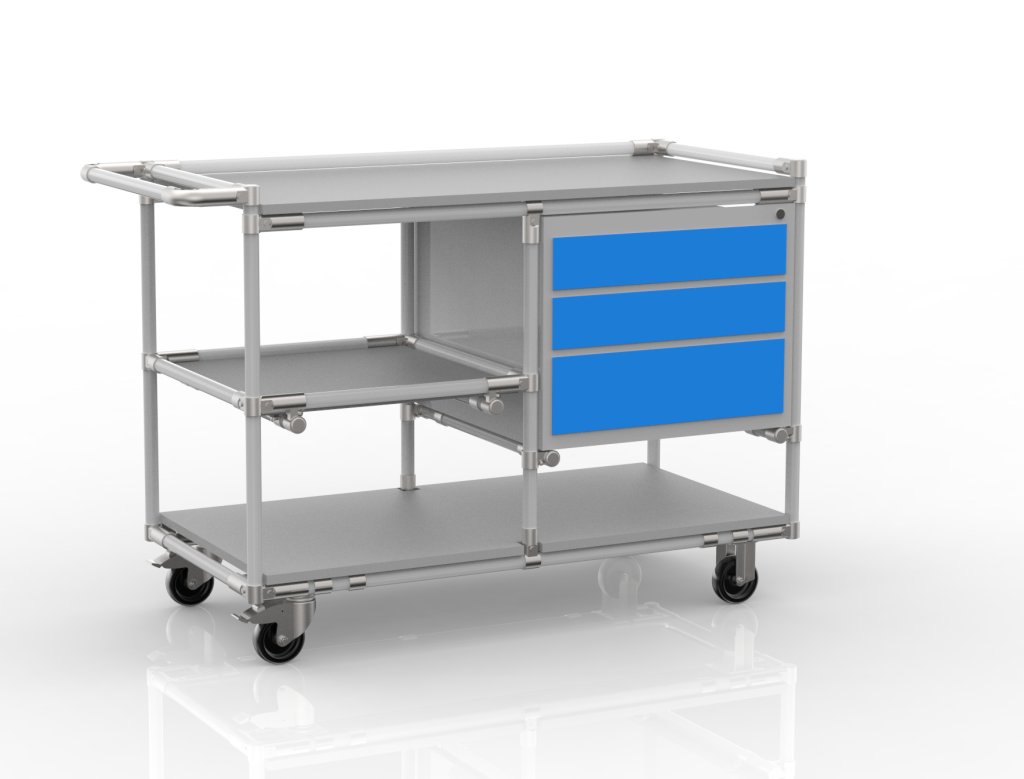

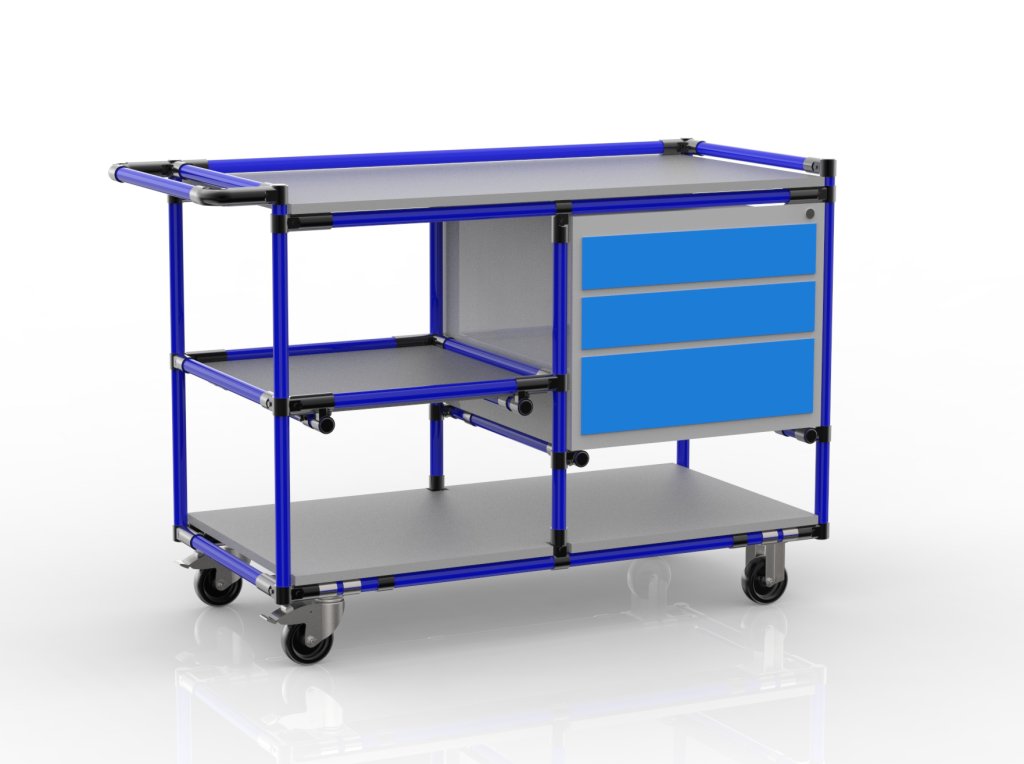

Color variants	ESD variant	Stainless steel variant

1 mm thick steel tube (LP-1100) or 2 mm (LP-1200)	antistatic steel tube 1 mm thick (CP-1100BK) or 2 mm (CP-1200BK)	0.7 mm thick stainless steel tube (ST-1070) or 1.1 mm (ST-1110)
