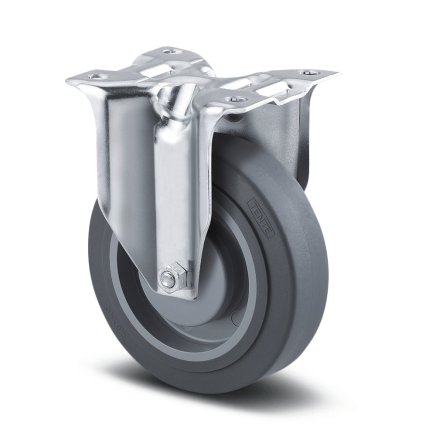

Solid gray supratech instrument wheel with ø 125 mm and plate attachment

Code: 3478PJP125P62

Fixed instrument wheel with a diameter of 125 mm, fork made of pressed steel, galvanized, double-row ball track in the swivel head full description and parameters

Show all models

On order, delivery time 2 - 3 weeks. It may vary depending on the manufacturer's capacity.

19.09 Eur 23.10 Eur with VAT

Quantity

Description and technical parameters
All models

Description and technical parameters

Gray Supratech fixed instrument wheel with ø 125 mm and plate mounting 3478PJP125P62

Fixed instrument wheel with a diameter of 125 mm, fork made of pressed steel, galvanized, double-row ball track in the swivel head, wheel fixed with a screw and nut, anti-filament cover, fixing with a plate. Wheel center made of polypropylene, tread made of gray TENTEprene (thermoplastic rubber), precision ball bearing.

polypropylene wheel center
gray non-marking thermoplastic rubber tread
double-row ball bearing with fiber wrap protection
temperature resistance -20 °C to 60 °C
plate size 103 x 85 mm
hole spacing 80/77 x 60 mm
hole diameter 9 mm
dynamic load capacity 180 kg
static load capacity 360 kg
wheel diameter 125 mm
tread width 40 mm
tread hardness Shore A65
meets the EN 12532 standard
building height 155 mm

Carrying capacity:	180 kg
Wheel diameter:	125 mm
Bearings:	ball
Warranty (years):	7
Manufacturer:

All models

Code	3478PJP100P62	Currently browsing 3478PJP125P62	3478PJP160P63
Carrying capacity	110 kg	180 kg	200 kg
Wheel diameter	100 mm	125 mm	160 mm
Bearings	ball	ball	ball
In stock	No	No	No
Price without VAT	16.50 Eur	19.09 Eur	24.77 Eur
	Into the cart	Into the cart	Into the cart
