OPRO platform trolley (12 models)
OPRO platform trolley (12 models) - 1
OPRO platform trolley (12 models) - 2
OPRO platform trolley (12 models) - 3
OPRO platform trolley (12 models) - 4
OPRO platform trolley (12 models) - 5
OPRO platform trolley (12 models) - 6

OPRO platform trolley (12 models)

Code: OPRO 502/I/S

OPRO 502/I/S platform trolley, load capacity 500 kg, dimensions of the loading surface 900 x 650 mm. Two side walls, solid wheels full description and parameters

Show all models

On order, delivery time 2 - 3 weeks. It may vary depending on the manufacturer's capacity.

288.26 Eur 348.79 Eur with VAT

Quantity

Description and technical parameters

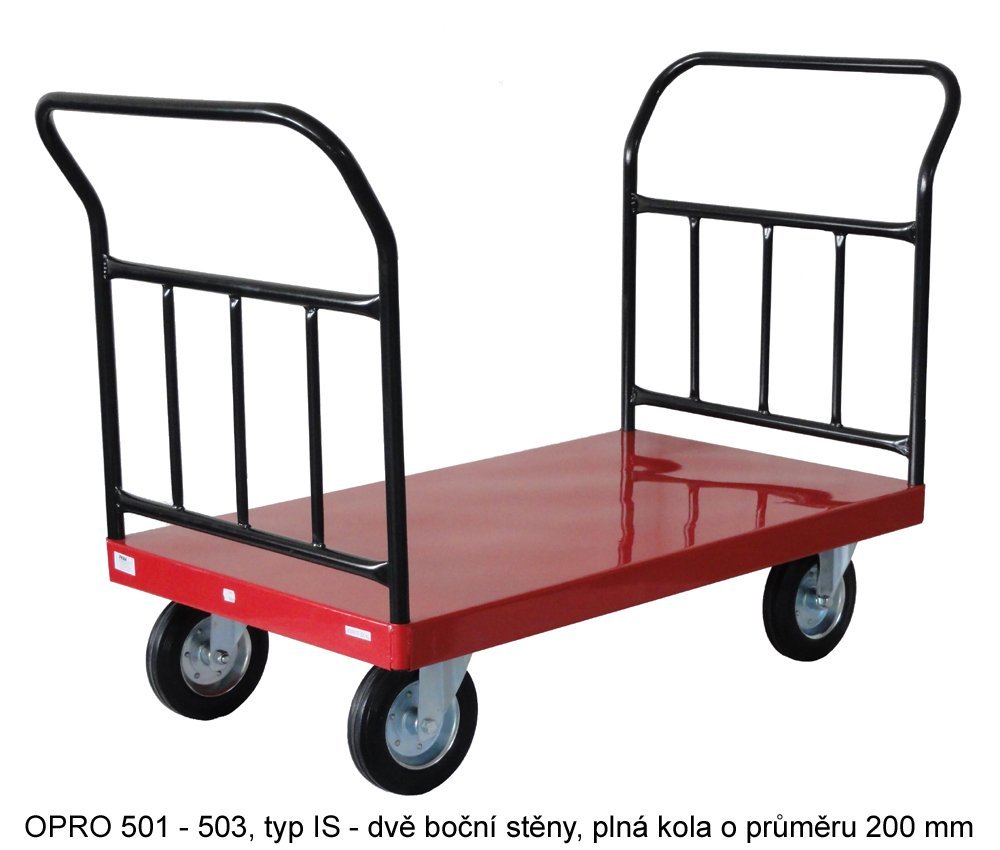

Platform trolley OPRO 502/I/S

OPRO 502/I/S platform trolley, load capacity 500 kg, dimensions of the loading surface 900 x 650 mm. Two side walls, solid wheels Ø 200 mm.

OPRO 502/I/S platform trolley, load capacity 500 kg, dimensions of the loading surface 900 x 650 mm. Two side walls, solid wheels Ø 200 mm.

Dimensions and features of all types of OPRO trolleys
Type load capacity (kg) length (mm) width (mm) height (mm) wheels Ø wheels (mm)
OPRO 502/I/S 500 900 650 950 full 200
OPRO 502/I/B 500 900 650 1010 bantam 260
OPRO 502/II/S 500 900 650 950 full 200
OPRO 502/II/B 500 900 650 1010 bantam 260
OPRO 501/I/S 500 1120 650 950 full 200
OPRO 501/I/B 500 1120 650 1010 bantam 260
OPRO 501/II/S 500 1120 650 950 full 200
OPRO 501/II/B 500 1120 650 1010 bantam 260
OPRO 503/I/S 500 1200 800 950 full 200
OPRO 503/I/B 500 1200 800 1010 bantam 260
OPRO 503/II/S 500 1200 800 950 full 200
OPRO 503/II/B 500 1200 800 1010 bantam 260
Carrying capacity: 500 kg
Length: 900 mm
Wheel diameter: 200 mm
Warranty (years): 2

All models

Code Currently browsing OPRO 502/I/S OPRO 502/I/B OPRO 502/II/S OPRO 502/II/B OPRO 501/I/S OPRO 501/I/B OPRO 501/II/S OPRO 501/II/B OPRO 503/I/S OPRO 503/I/B OPRO 503/II/S OPRO 503/II/B
Carrying capacity 500 kg 500 kg 500 kg 500 kg 500 kg 500 kg 500 kg 500 kg 500 kg 500 kg 500 kg 500 kg
Length 900 mm 900 mm 900 mm 900 mm 1120 mm 1120 mm 1120 mm 1120 mm 1200 mm 1200 mm 1200 mm 1200 mm
Mass kg kg kg kg kg kg kg kg kg kg kg 65 kg
Wheel diameter 200 mm 260 mm 200 mm 260 mm 200 mm 260 mm 200 mm 260 mm 200 mm 260 mm 200 mm 260 mm
In stock No No No No No No No No No No No No
Price without VAT 288.26 Eur 434.83 Eur 365.03 Eur 483.69 Eur 309.20 Eur 448.79 Eur 365.03 Eur 511.60 Eur 337.11 Eur 469.73 Eur 413.89 Eur 532.54 Eur
Into the cart
Into the cart
Into the cart
Into the cart
Into the cart
Into the cart
Into the cart
Into the cart
Into the cart
Into the cart
Into the cart
Into the cart

Similar products

Platform trolley with one wire filling sw-500.101, sw-600.101, sw-700.101, sw-800.101 (4 models)
Country of origin

Code: sw-500.101

Platform trolley with one wire filling sw-500.101, sw-600.101, sw-700.101, sw-800.101 (4 models)

193.85 Eur without VAT

(234.56 Eur with VAT)

Buy

Steel construction, wooden loading surface - beech. Surface treatment with RAL 5010 blue powder coating, resistant to impacts and scratches. Highly durable thermoplastic castors with ball bearings, 2 swivel with central Easy Stop brake, 2 fixed. Dimensions height 975 x width 975 x depth 500 mm. Wire mesh size 50 x 50 mm.

Platform trolley with two wire fillings sw-500.201 (4 models)
Country of origin

Code: sw-500.201

Platform trolley with two wire fillings sw-500.201 (4 models)

236.28 Eur without VAT

(285.90 Eur with VAT)

Buy

Steel construction, wooden loading surface - beech. Surface treatment with RAL 5010 blue powder coating, resistant to impacts and scratches. Highly durable thermoplastic castors with ball bearings, 2 swivel with central Easy Stop brake, 2 fixed. Dimensions height 975 x width 1040 x depth 500 mm. Wire mesh size 50 x 50 mm.

Platform trolley with three wire fillings sw-500.301 (4 models)
Country of origin

Code: sw-500.301

Platform trolley with three wire fillings sw-500.301 (4 models)

277.56 Eur without VAT

(335.85 Eur with VAT)

Buy

Steel construction, wooden loading surface - beech. Surface treatment with RAL 5010 blue powder coating, resistant to impacts and scratches. Highly durable thermoplastic castors with ball bearings, 2 swivel with central Easy Stop brake, 2 fixed. Dimensions height 975 x width 1040 x depth 500 mm. Wire mesh size 50 x 50 mm.

Information / documents

  • Dimensions of OPRO trolleys
  • Explanatory notes on the marking of the clods
Type load capacity (kg) length (mm) width (mm) height (mm) wheels Ø wheels (mm)
OPRO 502/I/S 500 900 650 950 full 200
OPRO 502/I/B 500 900 650 1010 bantam 260
OPRO 502/II/S 500 900 650 950 full 200
OPRO 502/II/B 500 900 650 1010 bantam 260
OPRO 501/I/S 500 1120 650 950 full 200
OPRO 501/I/B 500 1120 650 1010 bantam 260
OPRO 501/II/S 500 1120 650 950 full 200
OPRO 501/II/B 500 1120 650 1010 bantam 260
OPRO 503/I/S 500 1200 800 950 full 200
OPRO 503/I/B 500 1200 800 1010 bantam 260
OPRO 503/II/S 500 1200 800 950 full 200
OPRO 503/II/B 500 1200 800 1010 bantam 260

1) Description of label:

type of wheel disc (P - plastic, K - metal)
Wheel Ø (26=260, 30=300, 35=350)
type of wheel (N - inflatable, S - solid rubber)
maximum guaranteed load capacity in kg
type designation of the species
RA - simple (miller)
RB - simple (non-professional)
RF - simple reinforced
RC - standard (professional)
RD - standard - tapered
RE - for crates
RES - for crates with a slide
RK - keg KEGY
RN - furniture
SV - barrel classic barrel 200 l
AL - aluminum ingots
RL - for pressure bottles
PO / PB - dustbin and 10 kg PB bottle

Marking of bearings:

KL - sliding bearing
VL - rolling bearing (steel needles in a plastic cage)
JL - needle bearing (20 separate steel needles)
KU - ball bearing

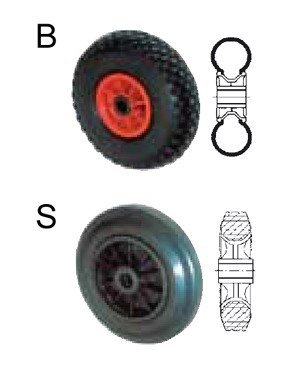

2) Description of used bikes:

wheels Ø140, Ø160, Ø200

wheels with a metal or plastic disk measure with a rubber hoop
wheels fitted with sliding bearings, some Ø160 wheels may have rolling bearings

Usage: simple, less loaded orbs. Ø160 wheels are used for stair treads, either with a sliding bearing (for smaller loads) or with a rolling bearing for heavier loads. The rolling principle of the trio of 160 wheels corresponds to the stair step standard = 160 mm.

wheels Ø200 P (N20 P)
Ø260 P (N26 P)
mantle 3.00 – 4

Inflatable wheels with plastic disc and sliding bearing. The most common type of wheel used for most mid-range loads up to 250 kg. With this more affordable type of wheel, it is necessary to respect the plastic disc, which absolutely requires compliance with the limitation of maximum inflation to a pressure of up to 150 kPa. If this restriction is not observed, the plastic trim will tear off. disc or changing the heel of the mantle and the destruction of the soul.

wheel Ø260 K (N26K)
mantle 3.00 – 4

Inflatable wheel with a metal disc, can have a sliding or rolling bearing. Optimum wheel diameter from the point of view of the mechanics of tilting heavy loads. It is used for loads with a maximum load of 250 to 300 kg.

wheel Ø260 K (S26K)

Bike with solid rubber rim with metal disc. Due to its high hardness, this wheel has very little rolling resistance. During operation, it is necessary to respect the fact that this wheel is absolutely "inflexible". Therefore, it is not able to absorb any impact on the edge or other unevenness. This impact on the edge leads to the destruction of the wheel by cracking in the longitudinal direction of the rim. (A solid rubber hoop is made by joining two lightweight moldings)

wheel Ø300 (N30K)
mantle 4.00 – 4

Inflatable wheel with a metal disc, equipped with a rolling bearing. The standard type of wheel used in most professional and special wheels.*

wheel Ø350 (N35K)
mantle 3.50 – 6

Inflatable wheels with a metal disc. The disc is strengthened by molding and connected by six screws. This wheel has either a wider standard hub using a rolling bearing and plastic plug or a reinforced hub and is assembled using twenty pieces of 4×45 steel pins. The use of this wheel is for the heaviest loads up to a maximum load of 350 kg.

Diameters of the axles of the wheels on which the wheels are mounted:

For wheels Ø140 and Ø160, the axle diameter is 15 mm. For all other wheels, with the exception of the reinforced Ø350 wheel, the axle diameter is 20 mm. For the reinforced wheel Ø350, the axle diameter is 22 mm. For most wheels, the size of the axle allows the use of both plastic and metal disc wheels. It can therefore be replaced with wheels with a metal disc for wheels equipped with plastic discs.
  • Rubber handles Ø25 mm or plastic handles with a protective rim Ø25 mm can be used for rudder.
  • Rudles are produced by welding in a protective atmosphere, sandblasted before painting with KOMAXID. The color shade can be customized according to the customer's request.
  • Individual production can ensure specific adjustments to individual types of standard ore, or the production of completely atypical ore according to customer requirements and within short delivery times.

* Due to its dimensions, this type of wheel is the closest possible to the replacement for the discontinued BARUM 12×4 wheel.

Note: due to possible design modifications over time, the given parameters of individual clods in terms of dimensions and weight can be considered informative.
