Code: RZ 300 N26 K KU

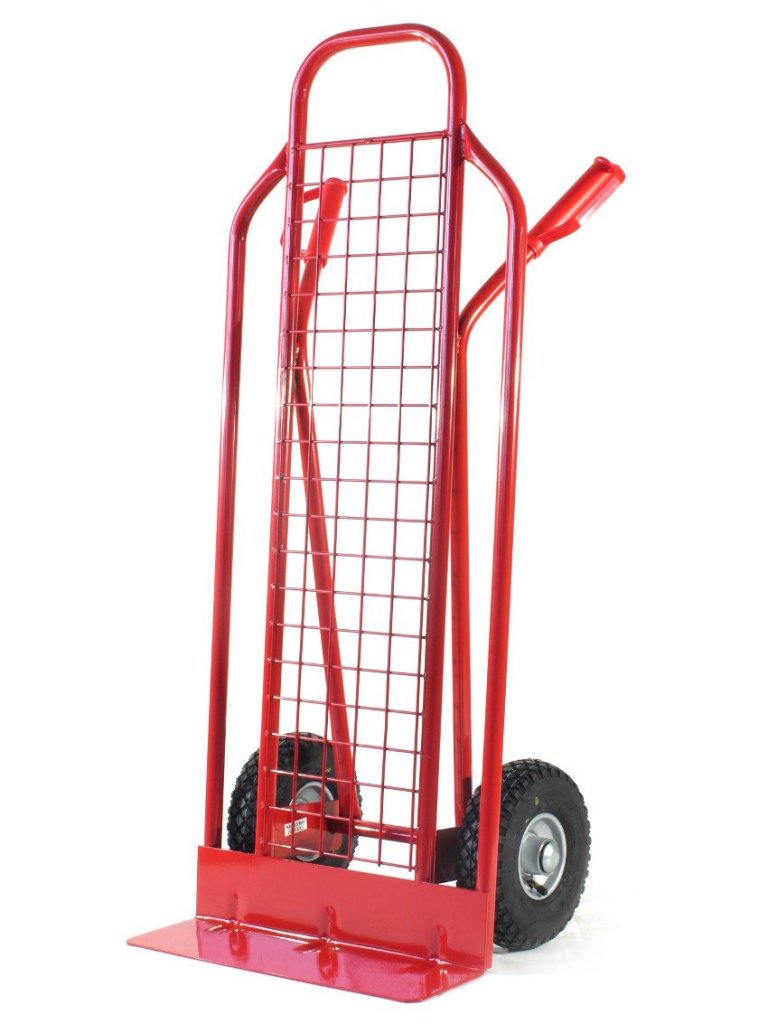

Universal handcart RZ 300 N26 K KU, load capacity 300 kg, shovel size 500 x 150 mm. A structure equipped with a metal net for full description and parameters
Universal handcart RZ 300 N26 K KU, load capacity 300 kg, shovel size 500 x 150 mm. A structure equipped with a metal net for transporting smaller packages or printed materials. Inflatable wheels with a diameter of 260 mm.
| Carrying capacity: | 300 kg |
|---|---|
| Height: | 1170 mm |
| Width: | 640 mm |
| Dimension of the shovel: | 500 x 150 mm |
| Design of wheels: | inflatable (bantam) |
| Bearings: | ball |
| Mass: | 18.5 kg |
| Warranty (years): | 2 |
Code: RF 200 N26 P KL
Handcart RF 200 N26 P KL78.87 Eur without VAT
(95.43 Eur with VAT)
Handcart RF 200 N26 P KL single, load capacity 200 kg, bucket size 400 x 200 mm. The color of the handcart is for reference only, the actual delivered depends on the current stock.
Code: RC 300 N30 K VL_150
Handcart RC 300 N30 K VL_150138.20 Eur without VAT
(167.22 Eur with VAT)
Handcart RC 300 N30 K VL classic, load capacity 300 kg, bucket size 450 x 150 or 500 x 220 mm. The color of the handcart is for reference only, the actual delivered depends on the current stock.
Code: RC 350 K SUPER VL_150
Handcart RC 350 K SUPER VL146.57 Eur without VAT
(177.35 Eur with VAT)
Handcart RC 350 K SUPER VL classic, reinforced load capacity 350 kg, bucket size 500 x 150. The color of the handcart is only indicative, the actual delivered depends on the current stock.
Code: RE 250 N26 K VL
Handcart RE 250 N26 KVL134.71 Eur without VAT
(163.00 Eur with VAT)
Handcart RE 250 N26 K VL for crates, load capacity 250 kg, bucket size 300 x 220 mm. The color of the handcart is for reference only, the actual delivered depends on the current stock.
Code: sk-710.306
Handcart with telescopic extension for tires sk-710.306, sk-710.307 (2 models)444.93 Eur without VAT
(538.37 Eur with VAT)
Easy-to-use handcart for tires with a diameter of 540 - 820 mm. With telescopic extension for up to 8 tires. Pneumatic wheels with ball bearing and plastic cover. Large handle with soft plastic cover for easy handling. Hheight 1275 - 1905 mm, width 705 mm, depth 740 mm.
1) Description of label:
 |
type of wheel disc (P - plastic, K - metal) |
|
Marking of bearings: |
KL - sliding bearing |
2) Description of used bikes:
|
wheels Ø140, Ø160, Ø200 |
wheels with a metal or plastic disk measure with a rubber hoop Usage: simple, less loaded orbs. Ø160 wheels are used for stair treads, either with a sliding bearing (for smaller loads) or with a rolling bearing for heavier loads. The rolling principle of the trio of 160 wheels corresponds to the stair step standard = 160 mm. |
|
wheels Ø200 P (N20 P) |
Inflatable wheels with plastic disc and sliding bearing. The most common type of wheel used for most mid-range loads up to 250 kg. With this more affordable type of wheel, it is necessary to respect the plastic disc, which absolutely requires compliance with the limitation of maximum inflation to a pressure of up to 150 kPa. If this restriction is not observed, the plastic trim will tear off. disc or changing the heel of the mantle and the destruction of the soul. |
|
wheel Ø260 K (N26K) |
Inflatable wheel with a metal disc, can have a sliding or rolling bearing. Optimum wheel diameter from the point of view of the mechanics of tilting heavy loads. It is used for loads with a maximum load of 250 to 300 kg. |
|
wheel Ø260 K (S26K) |
Bike with solid rubber rim with metal disc. Due to its high hardness, this wheel has very little rolling resistance. During operation, it is necessary to respect the fact that this wheel is absolutely "inflexible". Therefore, it is not able to absorb any impact on the edge or other unevenness. This impact on the edge leads to the destruction of the wheel by cracking in the longitudinal direction of the rim. (A solid rubber hoop is made by joining two lightweight moldings) |
|
wheel Ø300 (N30K) |
Inflatable wheel with a metal disc, equipped with a rolling bearing. The standard type of wheel used in most professional and special wheels.* |
|
wheel Ø350 (N35K) |
Inflatable wheels with a metal disc. The disc is strengthened by molding and connected by six screws. This wheel has either a wider standard hub using a rolling bearing and plastic plug or a reinforced hub and is assembled using twenty pieces of 4×45 steel pins. The use of this wheel is for the heaviest loads up to a maximum load of 350 kg. |
|
Diameters of the axles of the wheels on which the wheels are mounted: |
For wheels Ø140 and Ø160, the axle diameter is 15 mm. For all other wheels, with the exception of the reinforced Ø350 wheel, the axle diameter is 20 mm. For the reinforced wheel Ø350, the axle diameter is 22 mm. For most wheels, the size of the axle allows the use of both plastic and metal disc wheels. It can therefore be replaced with wheels with a metal disc for wheels equipped with plastic discs. |
* Due to its dimensions, this type of wheel is the closest possible to the replacement for the discontinued BARUM 12×4 wheel.
Note: due to possible design modifications over time, the given parameters of individual clods in terms of dimensions and weight can be considered informative.
