Double-sided tree rack type SO206748

Code: SO206748

Double-sided cantilever rack with different arm lengths. Number of arms 2 x 6 per web, number of webs 6. Rack height 2000 mm, full description and parameters

Made to order, delivery time 6-8 weeks. It may vary depending on the manufacturer's capacity.

Price on request

Quantity

Description and technical parameters

Double-sided tree rack type SO206748

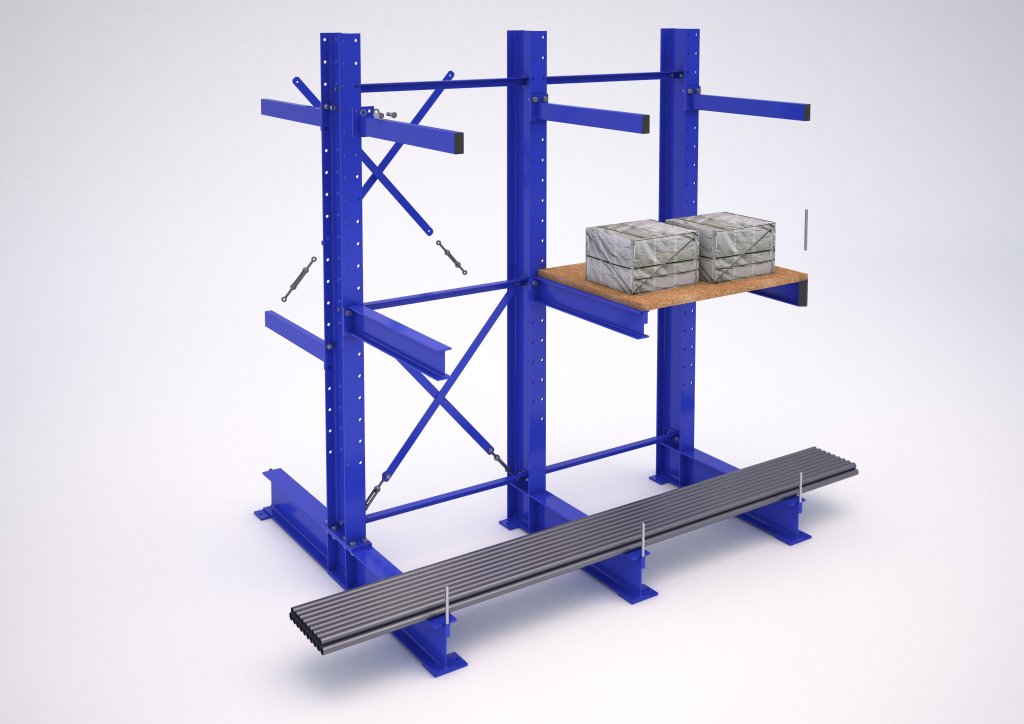

Double-sided cantilever rack with different arm lengths. Number of arms 2 x 6 per web, number of webs 6. Rack height 2000 mm, width 6750 mm, depth 1090 mm, color blue RAL 5010. Arm capacity 200 kg. For these products, even with a purchase value over CZK 3,000 excluding VAT, shipping is paid according to the place of delivery. Personal collection in Chrudim.

  • double-sided cantilever shelf with different arm lengths
  • with the number of webs 3, the total width of the shelf is 2700 mm
  • with the number of webs 4, the total width of the shelf is 4050 mm
  • with the number of webs 5, the total width of the rack is 5400 mm
  • with the number of webs 6, the total width of the rack is 6750 mm
  • axial distance of webs is 1350 mm
  • arm capacity 200kg
  • clear arm depth 500, 410, 340, 280, 225, 190 and 150 mm
Height: 2000 mm
Width: 6750 mm
Depth: 1090 mm
Column load capacity: 900 kg
Carrying capacity of the arm: 200 kg
Number of arms: 12
Number of webs: 6
Mass: 186 kg
Warranty (years): 5
Manufacturer:

All models

Code SO202748 SO204048 SO205448 Currently browsing SO206748
Height 2000 mm 2000 mm 2000 mm 2000 mm
Width 2700 mm 4050 mm 5400 mm 6750 mm
Depth 1090 mm 1090 mm 1090 mm 1090 mm
Column load capacity 900 kg 900 kg 900 kg 900 kg
Carrying capacity of the arm 200 kg 200 kg 200 kg 200 kg
Number of arms 12 12 12 12
Number of webs 3 4 5 6
Mass 92 kg 124 kg 155 kg 186 kg
In stock No No No No
Price without VAT Price on request Price on request Price on request Price on request
