Code: KO204050
Double-sided cantilever rack with the same length of arms. Number of arms 2 x 5 per web, number of webs 4. Rack height 2000 mm, full description and parameters

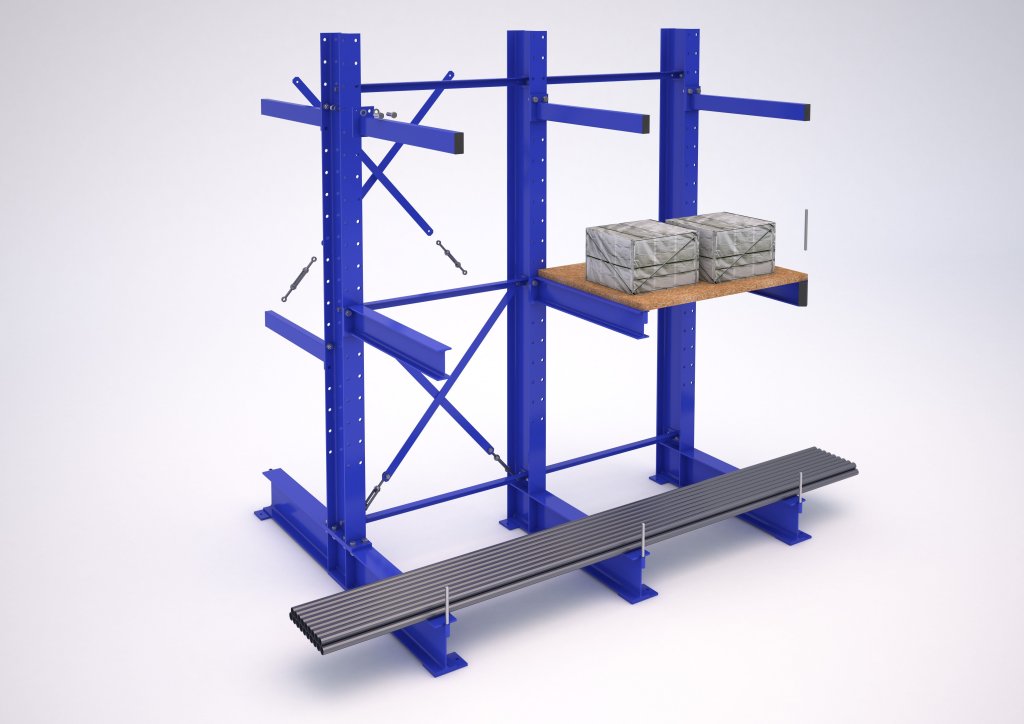

Double-sided cantilever rack with the same length of arms. Number of arms 2 x 5 per web, number of webs 4. Rack height 2000 mm, width 4050 mm, depth 1150 mm, color blue RAL 5010. Arm capacity 200 kg. For these products, even with a purchase value over CZK 3,000 excluding VAT, shipping is paid according to the place of delivery. Personal collection in Chrudim.
| Height: | 2000 mm |
|---|---|
| Width: | 4050 mm |
| Depth: | 1150 mm |
| Column load capacity: | 1200 kg |
| Carrying capacity of the arm: | 200 kg |
| Number of arms: | 10 |
| Number of webs: | 4 |
| Mass: | 167 kg |
| Warranty (years): | 5 |
| Manufacturer: |
|
| Code | KO202750 | Currently browsing KO204050 | KO205450 | KO206750 |
|---|---|---|---|---|
| Height | 2000 mm | 2000 mm | 2000 mm | 2000 mm |
| Width | 2700 mm | 4050 mm | 5400 mm | 6750 mm |
| Depth | 1150 mm | 1150 mm | 1150 mm | 1150 mm |
| Column load capacity | 1200 kg | 1200 kg | 1200 kg | 1200 kg |
| Carrying capacity of the arm | 200 kg | 200 kg | 200 kg | 200 kg |
| Number of arms | 10 | 10 | 10 | 10 |
| Number of webs | 3 | 4 | 5 | 6 |
| Mass | 125 kg | 167 kg | 209 kg | 251 kg |
| In stock | No | No | No | No |
| Price without VAT | Price on request | Price on request | Price on request | Price on request |
Code: KO202750
Complete double-sided console rack, (4 models)Price on request
Cantilever racks on both sides with the same arm length. Number of arms 2 x 5 per web, number of webs 3 (total rack width 2700 mm), 4 (4050 mm), 5 (5400 mm) or 6 (6750 mm). Rack height 2000 mm, depth 1150 mm, color blue RAL 5010. Arm capacity 200 kg. For these products, even with a purchase value over CZK 3,000 excluding VAT, shipping is paid according to the place of delivery. Personal collection in Chrudim.
Code: KO205450
Console rack double-sided type KO205450Price on request
Double-sided cantilever rack with the same length of arms. Number of arms 2 x 5 per web, number of webs 5. Rack height 2000 mm, width 5400 mm, depth 1150 mm, color blue RAL 5010. Arm capacity 200 kg. For these products, even with a purchase value over CZK 3,000 excluding VAT, shipping is paid according to the place of delivery. Personal collection in Chrudim.
Code: KO206750
Console rack double-sided type KO206750Price on request
Double-sided cantilever rack with the same length of arms. Number of arms 2 x 5 per web, number of webs 6. Rack height 2000 mm, width 6750 mm, depth 1150 mm, color blue RAL 5010. Arm capacity 200 kg. For these products, even with a purchase value over CZK 3,000 excluding VAT, shipping is paid according to the place of delivery. Personal collection in Chrudim.
Code: KJ202763
Complete single-sided console rack, (4 models)Price on request
One-sided cantilever racks with the same arm length. Number of arms 5 per web, number of webs 3 (total rack width 2700 mm), 4 (4050 mm), 5 (5400 mm) or 6 (6750 mm). Rack height 2000 mm, depth 630 mm, color blue RAL 5010. Arm capacity 200 kg. For these products, even with a purchase value over CZK 3,000 excluding VAT, shipping is paid according to the place of delivery. Personal collection in Chrudim.
Code: KJ204063
Cantilever rack one-sided type KJ204063Price on request
One-sided cantilever rack with the same length of arms. Number of arms 5 per web, number of webs 4. Rack height 2000 mm, width 4050 mm, depth 630 mm, color blue RAL 5010. Arm capacity 200 kg. For these products, even with a purchase value over CZK 3,000 excluding VAT, shipping is paid according to the place of delivery. Personal collection in Chrudim.
Code: KJ205463
Console rack one-sided type KJ205463Price on request
One-sided cantilever rack with the same length of arms. Number of arms 5 per web, number of webs 5. Rack height 2000 mm, width 5400 mm, depth 630 mm, color blue RAL 5010. Arm capacity 200 kg. For these products, even with a purchase value over CZK 3,000 excluding VAT, shipping is paid according to the place of delivery. Personal collection in Chrudim.
Code: KJ206763
Cantilever rack one-sided type KJ206763Price on request
One-sided cantilever rack with the same length of arms. Number of arms 5 per web, number of webs 6. Rack height 2000 mm, width 6750 mm, depth 630 mm, color blue RAL 5010. Arm capacity 200 kg. For these products, even with a purchase value over CZK 3,000 excluding VAT, shipping is paid according to the place of delivery. Personal collection in Chrudim.
