Cantilever rack - one-sided corbel extension (12 models)

Code: KJP201050

Medium load racks for standing and lying long material. Height 2000 - 3000 mm, width 1000 or 1300 mm, depth 500 or 800 mm, number full description and parameters

Show all models

Made to order, delivery time 6-8 weeks. It may vary depending on the manufacturer's capacity.

Price on request

Quantity

Description and technical parameters

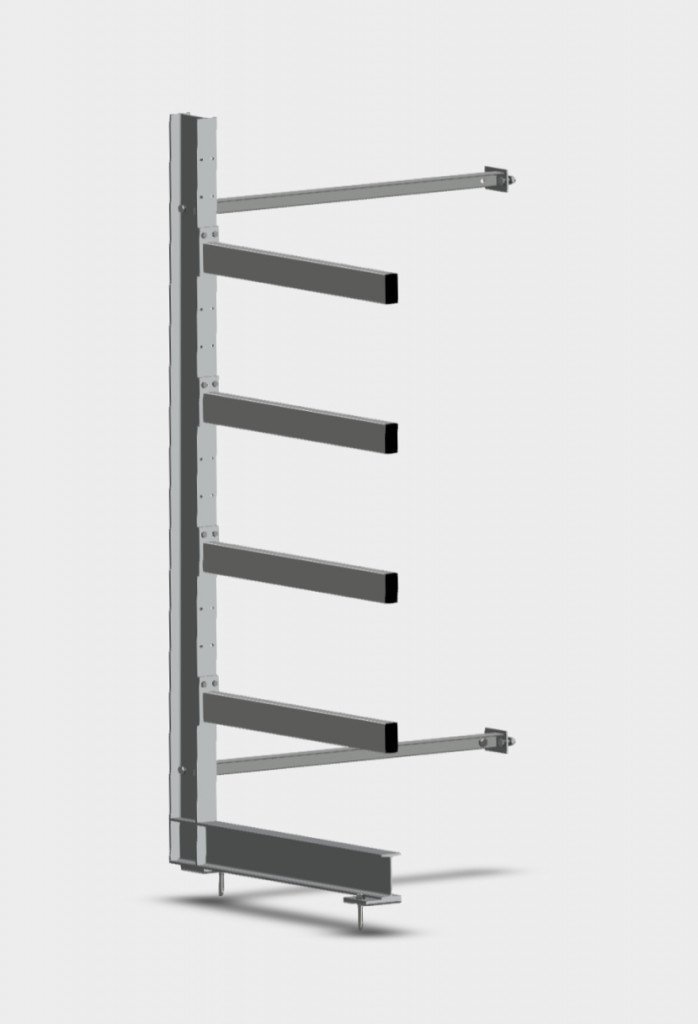

Cantilever rack - single-sided extension KJP201050

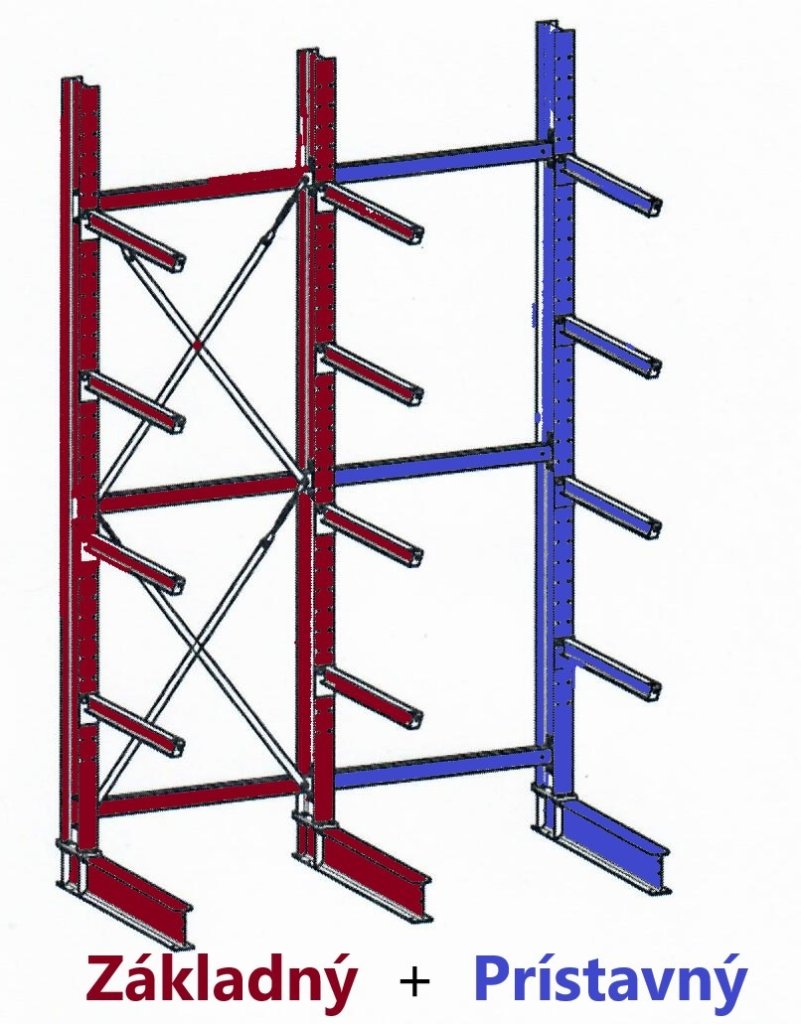

Medium load racks for standing and lying long material. Height 2000 - 3000 mm, width 1000 or 1300 mm, depth 500 or 800 mm, number of arms 4 - 5, arm load capacity 250 or 430 kg, one-sided web load capacity 1250 - 2340 kg, rack weights between 50 - 202 kg. Color RAL 5010 blue. Only one web, serves as an extension of the base racks. For these products, even with a purchase value over CZK 3,000 excluding VAT, shipping is paid according to the place of delivery. Personal collection in Chrudim.

for storage of board and board material
cylindrical profiles IPE 140
height-adjustable arms in 100 mm increments
perfect security worked out to the last detail
production is approved by SZU and is produced under ISO 9001 management conditions
the consoles can be supplemented with grates (hot-dip galvanized) or chipboards (raw DTD)
upon request, it is possible to supply racks in a different size (columns up to a maximum height of 10 m, consoles up to a maximum length of 2 m), with a different load capacity or in an outdoor hot-dip galvanized version

Height:	2000 mm
Width:	1000 mm
Depth:	500 mm
The bearing capacity of the web is one-sided:	2340 kg
Carrying capacity of the arm:	430 kg
Number of arms:	4
Warranty (years):	5
Manufacturer:

All models

Code	Currently browsing KJP201050	KJP201080	KJP251050	KJP251080	KJP301050	KJP301080	KJP201350	KJP201380	KJP251350	KJP251380	KJP301350	KJP301380
Height	2000 mm	2000 mm	2500 mm	2500 mm	3000 mm	3000 mm	2000 mm	2000 mm	2500 mm	2500 mm	3000 mm	3000 mm
Width	1000 mm	1000 mm	1000 mm	1000 mm	1000 mm	1000 mm	1300 mm	1300 mm	1300 mm	1300 mm	1300 mm	1300 mm
Depth	500 mm	800 mm	500 mm	800 mm	500 mm	800 mm	500 mm	800 mm	500 mm	800 mm	500 mm	800 mm
The bearing capacity of the web is one-sided	2340 kg	1650 kg	2200 kg	1500 kg	2000 kg	1250 kg	2340 kg	1650 kg	2200 kg	1500 kg	2000 kg	1250 kg
Carrying capacity of the arm	430 kg	250 kg	430 kg	250 kg	430 kg	250 kg	430 kg	250 kg	430 kg	250 kg	430 kg	250 kg
Number of arms	4	4	4	4	5	5	4	4	4	4	5	5
In stock	No	No	No	No	No	No	No	No	No	No	No	No
Price without VAT	Price on request	Price on request	Price on request	Price on request	Price on request	Price on request	Price on request	Price on request	Price on request	Price on request	Price on request	Price on request
	Ask	Ask	Ask	Ask	Ask	Ask	Ask	Ask	Ask	Ask	Ask	Ask
