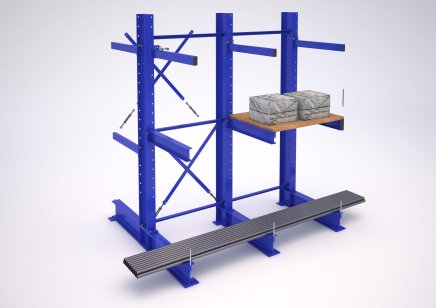

Cantilever rack - double-sided corbel base (12 models)
Cantilever rack - double-sided corbel base (12 models) - 1
Cantilever rack - double-sided corbel base (12 models) - 2
Cantilever rack - double-sided corbel base (12 models) - 3

Cantilever rack - double-sided corbel base (12 models)

Code: KOZ201050

Medium load racks for standing and lying long material. Height 2000 - 3000 mm, width 1000 or 1300 mm, depth 1000 or 1600 mm, full description and parameters

Show all models

Made to order, delivery time 6-8 weeks. It may vary depending on the manufacturer's capacity.

Price on request

Quantity

Description and technical parameters

Cantilever rack - double-sided corbel base KOZ201050

Medium load racks for standing and lying long material. Height 2000 - 3000 mm, width 1000 or 1300 mm, depth 1000 or 1600 mm, number of arms 8 - 10, arm load capacity 250 or 430 kg, one-sided web load capacity 1250 - 2340 kg, rack weights between 50 - 202 kg. Color RAL 5010 blue. For these products, even with a purchase value over CZK 3,000 excluding VAT, shipping is paid according to the place of delivery. Personal collection in Chrudim.

  • for storage of board and board material
  • height-adjustable arms in 100 mm increments
  • perfect security worked out to the last detail
  • production is approved by SZU and is produced under ISO 9001 management conditions
  • the consoles can be supplemented with grates (hot-dip galvanized) or chipboards (raw DTD)
  • upon request, it is possible to supply racks in a different size (columns up to a maximum height of 10 m, consoles up to a maximum length of 2 m), with a different load capacity or in an outdoor hot-dip galvanized version
Height: 2000 mm
Width: 1000 mm
Depth: 1000 mm
The bearing capacity of the web is one-sided: 2340 kg
Carrying capacity of the arm: 430 kg
Number of arms: 8
Warranty (years): 5
Manufacturer:

All models

Code KOZ201350 Currently browsing KOZ201050 KOZ201080 KOZ251050 KOZ251080 KOZ301050 KOZ301080 KOZ201380 KOZ251350 KOZ251380 KOZ301350 KOZ301380
Height 2000 mm 2000 mm 2000 mm 2500 mm 2500 mm 3000 mm 3000 mm 2000 mm 2500 mm 2500 mm 3000 mm 3000 mm
Width 1300 mm 1000 mm 1000 mm 1000 mm 1000 mm 1000 mm 1000 mm 1300 mm 1300 mm 1300 mm 1300 mm 1300 mm
Depth 1000 mm 1000 mm 1600 mm 1000 mm 1600 mm 1000 mm 1600 mm 1600 mm 1000 mm 1600 mm 1000 mm 1600 mm
The bearing capacity of the web is one-sided 2340 kg 2340 kg 1650 kg 2200 kg 1500 kg 2000 kg 1250 kg 1650 kg 2200 kg 1500 kg 2000 kg 1250 kg
Carrying capacity of the arm 430 kg 430 kg 250 kg 430 kg 250 kg 430 kg 250 kg 250 kg 430 kg 250 kg 430 kg 250 kg
Number of arms 8 8 8 8 8 10 10 8 8 8 10 10
In stock No No No No No No No No No No No No
Price without VAT Price on request Price on request Price on request Price on request Price on request Price on request Price on request Price on request Price on request Price on request Price on request Price on request
Ask
Ask
Ask
Ask
Ask
Ask
Ask
Ask
Ask
Ask
Ask
Ask
