Code: sw-1284

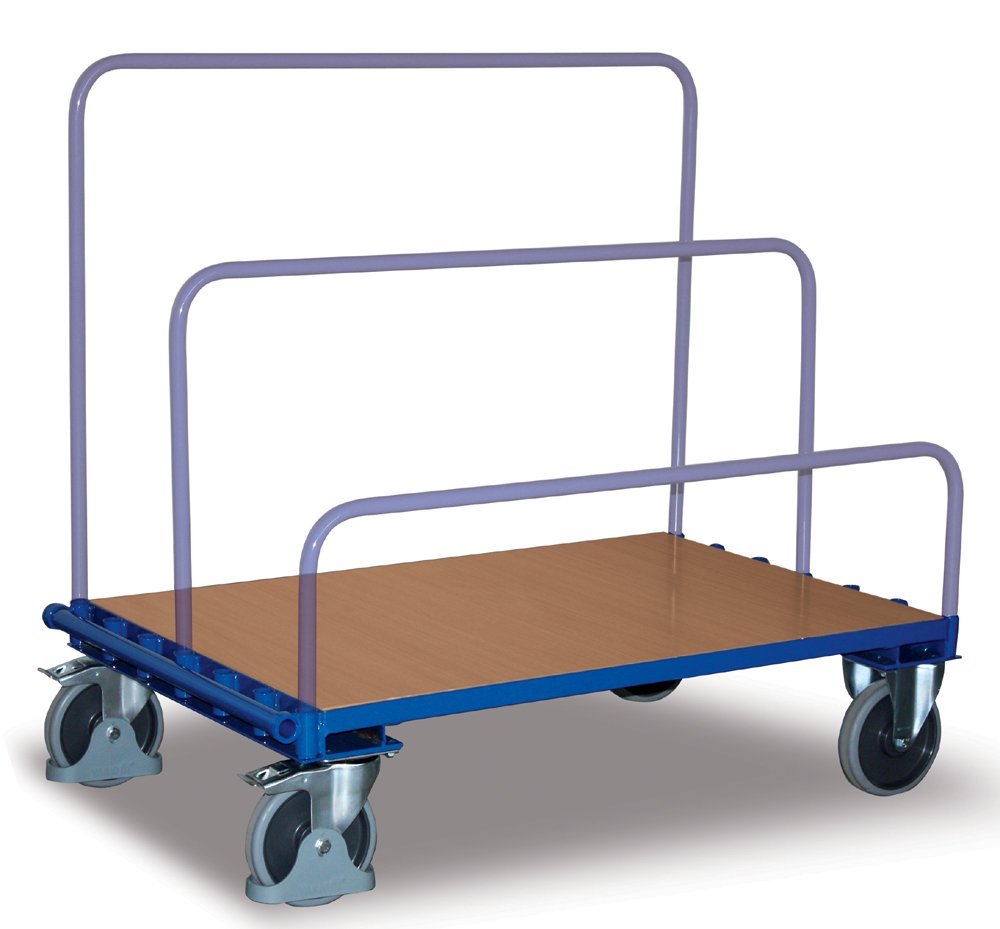

Carriage made of welded steel profiles and tubes. It has a total of 7 positions for inserting steel supports, the distance between full description and parameters
Carriage made of welded steel profiles and tubes. It has a total of 7 positions for inserting steel supports, the distance between the holes is 90 mm. The armrests are not part of the cart, they must be ordered separately! Storage area – wood-based board with beech finish. Steel parts - powder color RAL 5010 gentian blue - surface protection against impact and scratches. Highly durable thermoplastic castors with ball bearing (2 swivel with brake and 2 fixed).
| Carrying capacity: | 500 kg |
|---|---|
| Height: | 310 mm |
| Width: | 1710 mm |
| Depth: | 800 mm |
| Mass: | 47.5 kg |
| Wheel diameter: | 200 mm |
| Warranty (years): | 5 |
| Manufacturer: |
|
| Code | sw-1282 | sw-1283 | Currently browsing sw-1284 | sw-1285 |
|---|---|---|---|---|
| Carrying capacity | 500 kg | 1200 kg | 500 kg | 1200 kg |
| Height | 310 mm | 310 mm | 310 mm | 310 mm |
| Width | 1310 mm | 1310 mm | 1710 mm | 1710 mm |
| Depth | 800 mm | 800 mm | 800 mm | 800 mm |
| Mass | 41.5 kg | 46 kg | 47.5 kg | 52.5 kg |
| Wheel diameter | 200 mm | 200 mm | 200 mm | 200 mm |
| In stock | No | No | No | No |
| Price without VAT | 422.17 Eur | 593.73 Eur | 510.63 Eur | 683.53 Eur |
Code: zsw-1293
Additional backrest type zsw-129327.31 Eur without VAT
(33.05 Eur with VAT)
Additional steel support zsw 1293. Intended for trolleys for board material types sw 1282, sw 1283, sw 1284, sw 1285. Height 300 mm, width 1600 mm. Color gentian blue RAL 5010.
Code: zsw-1294
Additional support type zsw-129429.92 Eur without VAT
(36.20 Eur with VAT)
Additional steel support zsw 1294. Intended for trolleys for board material types sw 1282, sw 1283, sw 1284, sw 1285. Height 600 mm, width 1600 mm. Color gentian blue RAL 5010.
Code: 1075
Board material trolley 1075, 1076 (2 models)285.68 Eur without VAT
(345.67 Eur with VAT)
Steel trolley for board material, made in Germany. Welded steel construction. Color blue RAL 5007. Two rubber or pneumatic bearing wheels. Two support wheels with a diameter of 50 mm.
Code: 4445
Board material trolley type 4445484.84 Eur without VAT
(586.66 Eur with VAT)
Board for board material made in Germany, welded steel construction, non-slip loading surface made of waterproof plywood. The cart is very easy to handle. Color blue RAL 5007. 4 special Fetra TPE pneumatic wheels, of which 2 swivel with brake, 2 fixed.
Code: 4463
Board material trolley 4463, 4465 (2 models) without supports463.30 Eur without VAT
(560.59 Eur with VAT)
Carriage for board material made in Germany, construction made of welded angle steel. The trolley has a total of 7 positions for inserting additional steel supports, the holes are 90 mm apart. The armrests are not part of the trolley, they must be ordered additionally. Height of the loading surface 280 mm. 4 special Fetra TPE pneumatic wheels, of which 2 swivel with brake, 2 fixed.
Code: 4463-1
Board material trolley with high load capacity (2 models)573.08 Eur without VAT
(693.43 Eur with VAT)
Board for board material, made in Germany, with a high load capacity. Welded angle steel construction. The trolley has a total of 7 positions for inserting additional steel supports, the holes are 90 mm apart. The armrests are not part of the trolley, they must be ordered additionally. Height of the loading surface 280 mm. 4 special Fetra TPE pneumatic wheels, of which 2 swivel with brake, 2 fixed.
Code: sk-710.045
Board material trolley sk-710.045, sk-710.046 (2 models)235.35 Eur without VAT
(284.77 Eur with VAT)
Cart for transporting large wooden and plastic boards. Welded steel tube construction. Powder color RAL 5010 gentian blue. Impact and scratch protection. Pneumatic wheels, plus two support wheels. Height 1440 mm, width 1260 mm, depth 680 mm.
Code: 1076
Board material trolley 1076274.28 Eur without VAT
(331.88 Eur with VAT)
Steel trolley for board material, made in Germany. Welded steel construction. Color blue RAL 5007. Two pneumatic bearing wheels. Two support wheels with a diameter of 50 mm.
Code: 4465
Board material trolley 4465573.99 Eur without VAT
(694.53 Eur with VAT)
Carriage for board material made in Germany, construction made of welded angle steel. The trolley has a total of 7 positions for inserting additional steel supports, the holes are 90 mm apart. The armrests are not part of the trolley, they must be ordered additionally. Height of the loading surface 280 mm. 4 special Fetra TPE pneumatic wheels, of which 2 swivel with brake, 2 fixed.
Code: 4465-1
Board material trolley with high load capacity 4465-1685.82 Eur without VAT
(829.84 Eur with VAT)
Board for board material, made in Germany, with a high load capacity. Welded angle steel construction. The trolley has a total of 7 positions for inserting additional steel supports, the holes are 90 mm apart. The armrests are not part of the trolley, they must be ordered additionally. Height of the loading surface 280 mm. 4 special Fetra TPE pneumatic wheels, of which 2 swivel with brake, 2 fixed.
Code: sk-710.046
Board material trolley sk-710.046235.35 Eur without VAT
(284.77 Eur with VAT)
Cart for transporting large wooden and plastic boards. Welded steel tube construction. Powder color RAL 5010 gentian blue. Impact and scratch protection. Pneumatic wheels, plus two support wheels. Heightheight 1440 mm, width 1260 mm, depth 680 mm. On request, we can modify the cart according to your wishes!
